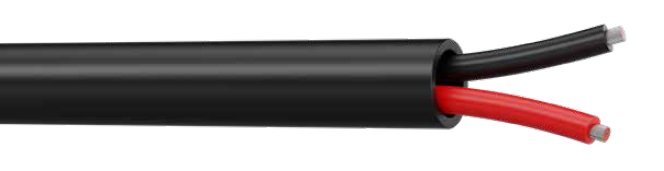

CAE installations højttaler kabel 2 x 2,50 mm2 CPR certified

CAE højttalerkabel til instalation

Højttalerkabel i høj kvalitet til installation
CPR certificeret; Overholder bygningsregulativest krav til brandsikkerhed

Flame retardant: IEC 60332-1
Halogen rate determination: IEC 60754-1
Corrosiveness of combustion gas determination: IEC 60754-2
Smoke density : IEC 61034-1 et -2

Temperature range : -20°C to +80°C
Minimum bending radius : Pose fixe (-5°C min.) : 8 x Ø
Conform to RoHS directiv


FHP225FRNC: 45 x 0.25 mm
FHP2400FRNC: 127 x 0.20 mm
FHP425FRNC: 45 x 0.25 mm
FHP4400FRNC: 127 x 0.20 mm
FHP4600FRNC:

Conductor insulation: FRNC
Conductor color identification: red, black, yellow, white
Outer sheath: Black FRNC

Electrical Properties
Voltage AC/DC : 100 V
Test voltage 50 Hz – 1 min. : >2000 V eff
Insulation resistance at 20°C : > 100 MΩ.km
Conductor resistance :
Section 1.50 mm² : < 13.30 Ω/km
Section 2.50 mm² : < 7.98 Ω/km
Section 4.00 mm² : < 4.95 Ω/km
Section 6.00 mm² : < 3.08 Ω/km

FHP 225 FRNC 2 2.50 mm² 7,70 mm
FHP 2400 FRNC 2 4.00 mm² 11.80 mm
FHP 2600 FRNC 2 6.00 mm² 12.20 mm
FHP 425 FRNC 4 2.50 mm² 9.40 mm
FHP 4400 FRNC 4 4.00 mm² 12,80 mm
FHP 4600 FRNC 4 6.00 mm² 14.40 mm
FHP 4800 FRNC 4 8.00 mm² 16.00 mm

Information

Type:	Installationskabel

Størrelse

Diameter:	7,7 mm
