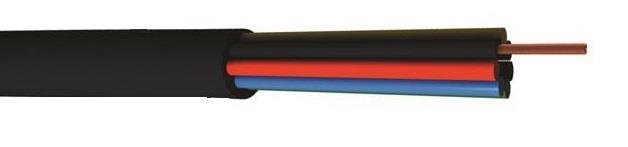

CAE fleksibel højttaler kabel 8 x 2,5 mm2, Sort

CAE højttalerkabel 8 x 2,5 mm2

Fleksibel kabel i professionel live kvalitet.

Wiring of all types of sound systems.
Connection of amplifiers and speakers.
Wiring of fixed and mobile installations.

Insulation :
PVC Black Ø=15,8 mm
Colors coding : black / red / yellow / white / blue /orange / grey / green
Multi-strand bare copper
Section : 2.50 mm²
AWG : 14

Electrical properties
Max. voltage : 300 V
est voltage (50 Hz – 1 min) : > 2000 V
Conductor resistance at 20°C :
Section 2.50 mm² : < 7.98 Ω/km
Insulation resistance at 20°C : > 100 MΩ.km
Temperature range: Static : - 20°C  + 70°C
Dynamic : - 10°C  + 70°C
Conform to RoHS directive
Minimum bending radius : Static : 5 x Ø
Dynamic : 10 x Ø
Ed.8 09/17 MC
REF : FHP825

Flexible speaker cable 8 x 2.50 mm²
Conform to EN 50575 : 2014 + A1 : 2016
Euroclasse : Eca

Information

Type:	Fleksibel kabel

Størrelse

Vægt:	0,35
Diameter:	15,8 mm
