CAE HDTV 4K video kabel ultra, sort 100 meter

Video cable UHDTV: stage performance
UHD08370ULTRA


Impedance 75
Cable for HDTV digital video link
Video link HDTV 3 Gb/s to standard SMPTE 424M
Link UHD 4K to standard SMPTE 2081.1

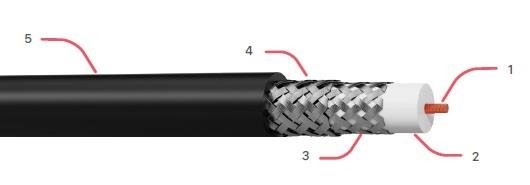

1. Core composition: Flexible red copper
2. Conductor insulation: Physical polyethylene foam - Ø 3.68 mm
3. Outer sheath: Black PUR Ø 6.14 mm
4. Primary overall shielding: Tinned copper braid
5. Secondary overall shielding: Tinned copper braid

Benefits Applications
1. Core composition: Flexible red copper
2. Conductor insulation: Physical polyethylene foam - Ø 3.68 mm
3. Outer sheath: Black PUR Ø 6.14 mm
4. Primary overall shielding: Tinned copper braid
5. Secondary overall shielding: Tinned copper braid
High performance
Excellent immunity against electro-magnetic interference
High electrical performance

Link lengths
Standard SMPTE 292M - 1.50 Gb/s HDTV: Max. length validated at 190 m*
Standard SMPTE 424M - 3.00 Gb/s HDTV: Max. length validated at 126 m*
Standard SMPTE 2081.1 - 6.00 Gb/s UHDTV 4K: Theoretical max. length 45 m
Standard SMPTE 2082.1 - 12 Gb/s UHTDV: Max. length validated at 30 m

*Tests conducted and validated by Tektronic, using Neutrik connectors
NBNC75BJP9X
SEBNCM75PJ9

Akustiske specifikationer

Impedance:	75 Ohm

Størrelse

Vægt:	3,7 kg
Diameter:	6,14 mm
