RCF Horn højttaler HD21 EN54-24, IP66, Ø=21 cm, 30W

RCF HD 21 EN horn højttaler IP66 (EN54-24 godkendt)

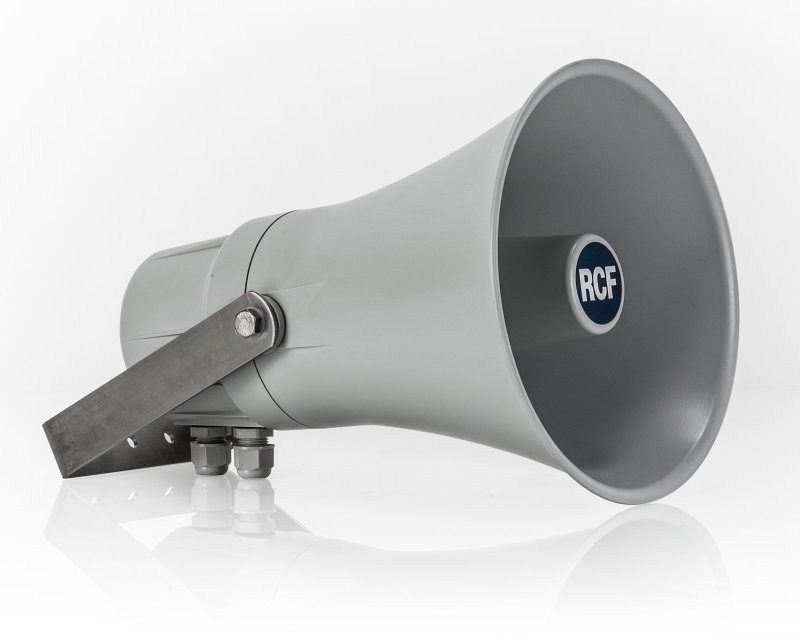

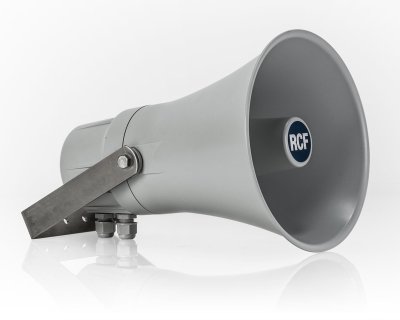

HD 21EN is a 30W horn loudspeaker compliant with EN 54-24 standard. Thanks to IP66 protection and its UV resistant ABS housing and it is suitable for both indoors and outdoors applications.

It can be easily aimed towards any direction through the adjustable wall-mount bracket, and can used in sounds systems having large spaces, for instance supermarkets, railway stations, undergrounds, factories, warehouses, etc. and also in all environments that need high efficiency loudspeakers grade. Equipped with transformer for 100 V / 70 V constant voltage lines, internal power setting and ceramic terminal strip to link cables, it also has a thermal fuse that prevents damages to the audio line due to heat.

Features
Compact speaker with 30 W driver in compliance with EN 54-24
Rear cover in UV stabilised self-extinguishing ABS
Suitable for indoor and outdoor use (thanks to IP 66 protection)
Transformer for 100 V (/ 70 V) constant voltage connection
Thermal fuse to pretect the audio line from heat


Acoustical Specifications
Frequency Response: 340 Hz ÷ 9 kHz
Max SPL @ 1m: 119 dB
Horizontal coverage angle: 210° (500 Hz), 135° (1 kHz), 70° (2 kHz), 40° (4 kHz)°
Vertical coverage angle: 210° (500 Hz), 135° (1 kHz), 70° (2 kHz), 40° (4 kHz)°
Power Handling: 30 W - 15 W - 7.5 W - 3.75 W (100 V) 15 W - 7.5 W - 3.75 W - 1.875 W (70 V) W RMS
Peak Power Handling: 45 W PEAK
System Sensitivity: 108 dB
Impedance: 333 Ohm
Protections: IP 66

Cabinet
Hardware: Rear cover in UV stabilised self-extinguishing ABS
Colour: light Grey

Physical Specifications
Height: 211.8 / 8.33 mm/inch
Width: 297.3 / 11.70 mm/inch
Depth: 297.3 / 11.70 mm/inch
Net weight: 2.05 / 4.51 kg/lbs

Information

Type:	Varsling EN54

Størrelse

Vægt:	2,1 kg
Dybde:	280 mm
Højde:	212 mm

Forsendelsesinformation

Pakke Bredde:	320 mm
Pakke Dybde:	220 mm
Pakke højde:	220 mm
Pakke Vægt:	2,7 kg
