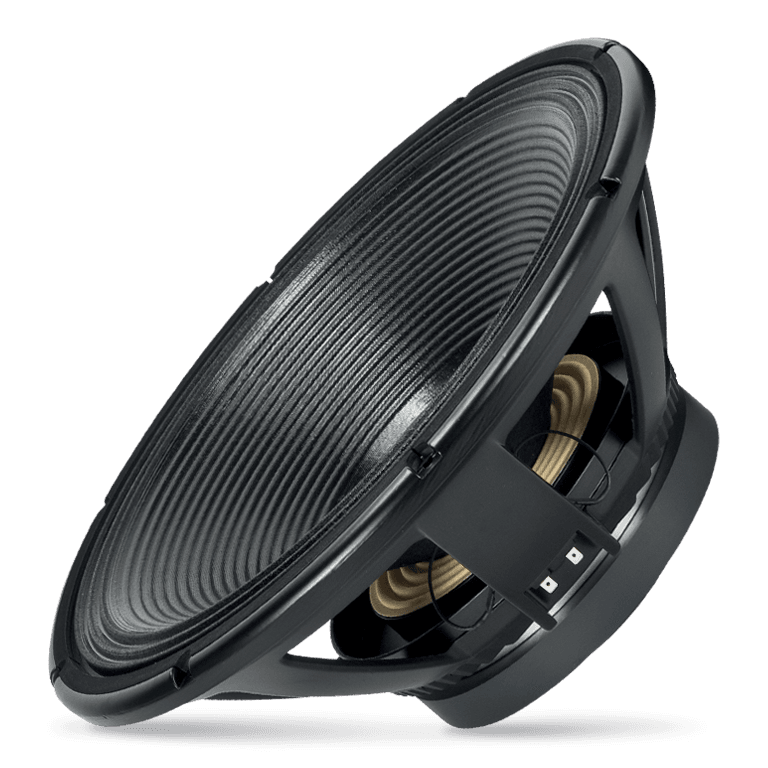

RCF højttalerenhed LF18X401 4 Ohm 18" Keramisk til SUB8004 og SUB8006

RCF LF18X401-4 18" Ceramic Woofer 1200W, 2400W program, 4"
4 Ohm enhed til bla. SUB8004-AS og SUB8006-AS

LF18X401 har lineær frekvensrespons, high-power-handling og genererer samtidig lav harmonisk forvrænging.

LF18X401 benytter fiber-loaded cone sammen med en high-excursion triple-roll surround.
Denne kombination leverer en maksimal peak to peak excursion på 50 mm.
Det nye dual-forced hyper-venting-system garanterer en effektiv voice-coil-ventilation for minimal power-kompression og power-handling.

4-inch, fiberglass inside/outside copper voice coil
3000W continuous program power handling
97.5 dB Sensitivity
25 Hz – 1 kHz Frequency range
Dual Forced Hyperventing System
Dual spider design with silicon based dampening control
Triple-roll surround and corrugated straight cone geometry

Mounting information
Overall diameter 465 mm / 18.31 inches
Bolt circle diameter 442-447 mm / 17.4-17.6 inch
Bolt hole diameter 7 mm / 0.28 inch
Front mount baffle cut-out 424 mm / 16.69 inch
Rear mount baffle cut-out 425 mm / 16.73 inch
Volume occupied by the driver 6.5 liters / 0.26 ft3

Akustiske specifikationer

Effekt:	3000 w program
Frekvensrespons:	25 - 1000 Hz
Woofer:	18" 4.0 inch v.c
Impedance:	4 Ohm

Information

Størrelse:	18"

Størrelse

Vægt:	12,50
Diameter:	465 mm / 18.31 inches
Bredde:	465 mm
Højde:	196 mm

Forsendelsesinformation

Pakke Bredde:	524 mm
Pakke Dybde:	494 mm
Pakke højde:	254 mm
Pakke Vægt:	15,0
