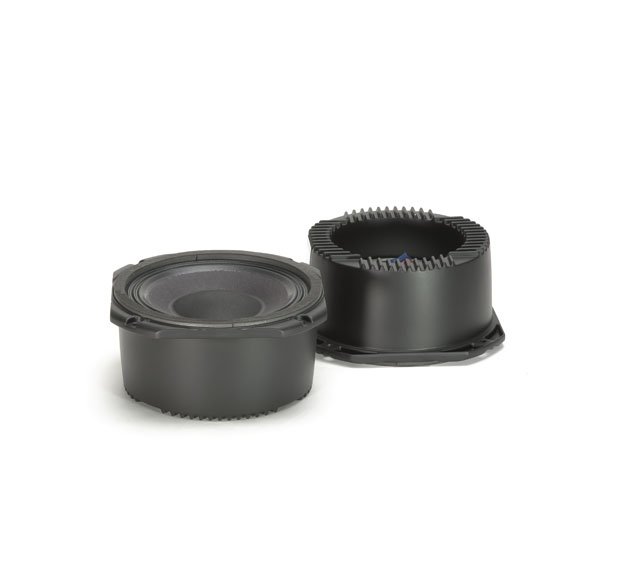

RCF højttalerenhed MR8N301 8" Neodymium 250W

RCF 8" Neo Mid 250W, 500W program 3"

MR10N301 er en højeffektiv, high-power midrange, specielt designet til at levere et sublimt lydtryksniveau i en kompakt størrelse. Totalvægten er reduceret til mere end halvdelen end hos en sammenlignelig ceramic-midrange takket være den kraftfulde neodymium-magnets konstruktion. Det unikke forseglede basket-design simpleficerer kabinetdesignet og forbedrer varme-dissipationen.

Nominal Diameter: 200 mm
Rated Impedance: 8 Ohm
Program Power: 400 W AES
Power handling capacity: 200 W AES
Sensitivity: 102 dB
Frequency Range: 300 Hz ÷ 3000 Hz
Effective Piston Diameter: 168 mm
Max Excursion Before Damage (peak to peak): 15 mm
Minimum Impedance: 9.8 Ohm
Voice Coil Diameter: 76 mm
Voice Coil Material: Aluminum
Voice Coil Winding Depth: 11 mm
Number of layers: 2
Kind of layer: inside / outside
Top Plate Thickness: 8 mm
Cone Material: No pressed pulp
Cone Design: Curved
Surround Material: Polycotton
Surround Design: Triple roll
DC resistance: 6.6 Ohm
Mechanical factor: 3.45
Electrical factor: 0.41
Total factor: 0.37
BL Factor: 17.8 T · m
Effective Moving Mass: 10.1 g
Equivalent Cas air load: 1.65 liters
Effettive piston area: 0.021 m²
Max. linear excursion (mathematical): 3.5 mm
Voice - coil inductance @ 1kHz: 1.16 mH
Half-space efficiency: 12.8 %
Overall Diameter: 238 mm
Bolt Circle Diameter: 220 mm
Bolt Hole Diameter: 6.5 mm
Front Mount Baffle Cut-out: 202 mm
Rear Mount Baffle Cut-out: 182 mm
Depth: 101.5 mm
Volume occupied by the driver: 2 / 0.07 liters/ft³
Net Weight: 3.5 kg

Information

Størrelse:	8"

Størrelse

Vægt:	3,31 kg
Diameter:	208 mm
Dybde:	20,8
Højde:	111 mm

Forsendelsesinformation

Pakke Bredde:	240 mm
Pakke Dybde:	240 mm
Pakke højde:	150 mm
Pakke Vægt:	3,77 kg
