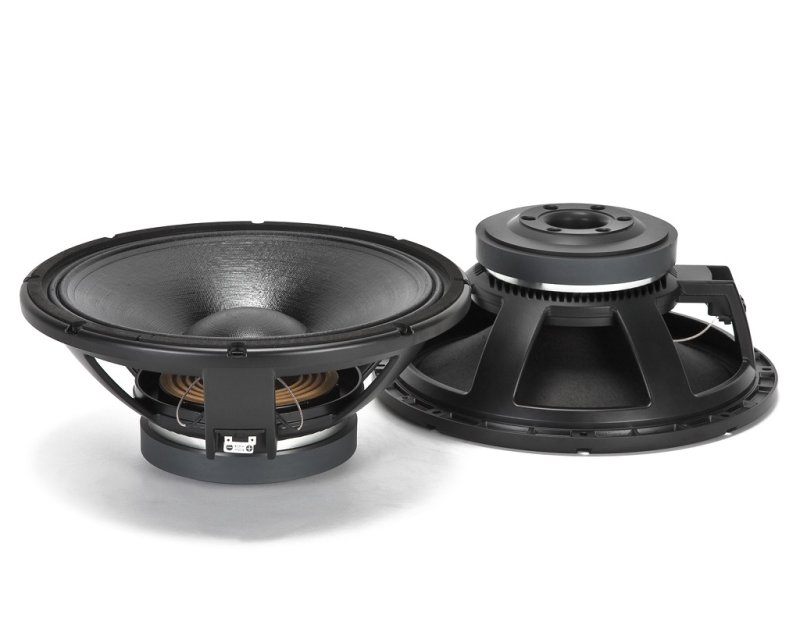

RCF højttalerenhed MB15X351 15" Keramsik 700W

RCF 15" Ceramic mid-base 700W, 1400W program, 3,5"

MB15X351 er designet til at levere en sublim frekvensrespons-linearitet med lav forvrængning. En stærk neodymium-magnetisk struktur garanterer dynamik og præcision. Det unikke 3,5" voice-coil-design tilbyder high-power-handling. Dual-forced hyper-vented-systemet garanterer en effektiv voice-coil-ventilation for minimal power-kompression og sublim power-handling.

Nominal Diameter: 380 mm
Rated Impedance: 8 Ohm
Program Power: 1400 W AES
Power handling capacity: 700 W AES
Sensitivity: 99 dB
Frequency Range: 40 Hz ÷ 2500 Hz
Effective Piston Diameter: 330 mm
Max Excursion Before Damage (peak to peak): 40 mm
Minimum Impedance: 6.5 Ohm
Voice Coil Diameter: 87 mm
Voice Coil Material: Copper
Voice Coil Winding Depth: 19 mm
Number of layers: 2
Kind of layer: inside / outside
Top Plate Thickness: 10 mm
Cone Material: No pressed pulp
Cone Design: Straight
Surround Material: Polycotton
Surround Design: M-roll
Resonance frequency: 46 Hz
DC resistance: 5.4 Ohm
Mechanical factor: 6.7
Electrical factor: 0.33
Total factor: 0.31
BL Factor: 22.8 T · m
Effective Moving Mass: 106 g
Equivalent Cas air load: 114 liters
Effettive piston area: 0.086 m²
Max. linear excursion (mathematical): 7.0 mm
Voice - coil inductance @ 1kHz: 1,5 mH
Half-space efficiency: 3.20 %
Overall Diameter: 393 mm
Bolt Circle Diameter: 371-376 mm
Bolt Hole Diameter: 6.5 mm
Front Mount Baffle Cut-out: 354 mm
Rear Mount Baffle Cut-out: 354 mm
Depth: 151 mm
Volume occupied by the driver: 4.5 / 0.153 liters/ft³
Net Weight: 8.2 kg

Information

Størrelse:	15"

Størrelse

Vægt:	8,2 kg
Diameter:	393 mm
Dybde:	39,3
Højde:	167 mm

Forsendelsesinformation

Pakke Bredde:	439 mm
Pakke Dybde:	434 mm
Pakke højde:	209 mm
Pakke Vægt:	9,5 kg
