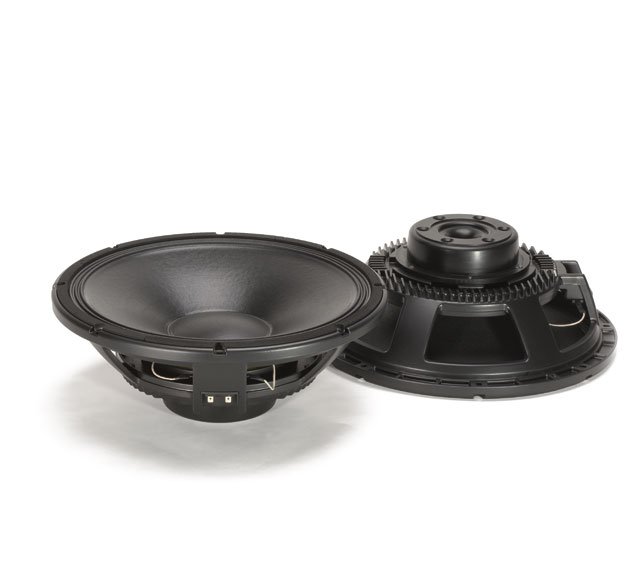

RCF højttalerenhed MB15N401 15" Neodymium 850W

RCF 15" Neo Mid-base 850W, 1700W program 4"

MB15N401 er en mid-bas med lineær frekvensrespons og høj effektivitet. Den magnetiske struktur benytter en demodulations-ring og en fibre-loaded cone-konstruktion, sammen med en high-excursion triple-roll, geometry surround. Demodulations-ringen garanterer en hurtigere responstid og lav forvrængning.

Nominal Diameter: 380 mm
Rated Impedance: 8 Ohm
Program Power: 1700 W AES
Power handling capacity: 850 W AES
Sensitivity: 100 dB
Frequency Range: 40 Hz ÷ 2000 Hz
Effective Piston Diameter: 340 mm
Max Excursion Before Damage (peak to peak): 40 mm
Minimum Impedance: 6.4 Ohm
Voice Coil Diameter: 100 mm
Voice Coil Material: Copper
Voice Coil Winding Depth: 18 mm
Number of layers: 2
Kind of layer: inside / outside
Top Plate Thickness: 12 mm
Cone Material: No pressed pulp
Cone Design: Curved
Surround Material: Polycotton
Surround Design: Triple roll
DC resistance: 5.0 Ohm
Mechanical factor: 7.7
Electrical factor: 0.20
Total factor: 0.19
BL Factor: 26.1 T · m
Effective Moving Mass: 100 g
Equivalent Cas air load: 136 liters
Effettive piston area: 0.091 m²
Max. linear excursion (mathematical): 5.5 mm
Voice - coil inductance @ 1kHz: 1.6 mH
Half-space efficiency: 4.86 %
Overall Diameter: 393 mm
Bolt Circle Diameter: 371-376 mm
Bolt Hole Diameter: 6.5 mm
Front Mount Baffle Cut-out: 354.1 mm
Rear Mount Baffle Cut-out: 354.1 mm
Depth: 158 mm
Volume occupied by the driver: 3.8 / 0.13 liters/ft³
Net Weight: 7.5 kg

Information

Størrelse:	15"

Størrelse

Vægt:	7,5 kg
Diameter:	393 mm
Dybde:	39,3
Højde:	161 mm

Forsendelsesinformation

Pakke Bredde:	435 mm
Pakke Dybde:	440 mm
Pakke højde:	225 mm
Pakke Vægt:	8,6 kg
