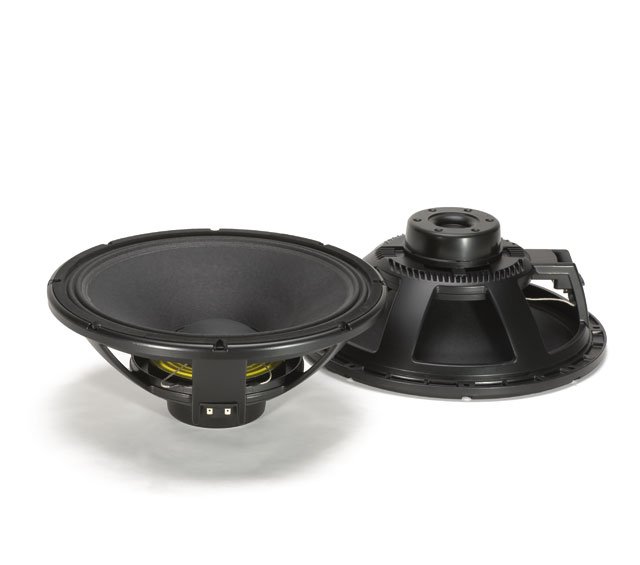

RCF højttalerenhed MB15N351 15" Neodymium 650W

RCF 15" Neo mid-base 650W, 1300W program, 3,5"

MB15N351 er designet til at levere sublim linearitet i frekvensresponsen med lav forvrængning. Transduceren konstrueret omkring en stærk neodymium-magnetisk struktur og et 3,5" voice-coil. Det unikke dual-forced udluftningssystem garanterer en effektiv voice-coil-ventilation for minimal power-kompression.

Nominal Diameter: 380 mm
Rated Impedance: 8 Ohm
Program Power: 1300 W AES
Power handling capacity: 650 W AES
Sensitivity: 100 dB
Frequency Range: 40 Hz ÷ 3000 Hz
Effective Piston Diameter: 330 mm
Max Excursion Before Damage (peak to peak): 39 mm
Minimum Impedance: 6.8 Ohm
Voice Coil Diameter: 87 mm
Voice Coil Material: Copper
Voice Coil Winding Depth: 16.5 mm
Number of layers: 2
Kind of layer: inside/outside
Top Plate Thickness: 11 mm
Cone Material: No pressed pulp
Cone Design: Curved
Surround Material: Polycotton
Surround Design: M - roll
DC resistance: 5.6 Ohm
Mechanical factor: 4.0
Electrical factor: 0.24
Total factor: 0.22
BL Factor: 22.5 T · m
Effective Moving Mass: 80 g
Equivalent Cas air load: 191 liters
Effettive piston area: 0.0855 m²
Max. linear excursion (mathematical): 5.5 mm
Voice - coil inductance @ 1kHz: 1.65 mH
Half-space efficiency: 5.68 %
Overall Diameter: 393 mm
Bolt Circle Diameter: 371-376 mm
Bolt Hole Diameter: 6.5 mm
Front Mount Baffle Cut-out: 354 mm
Rear Mount Baffle Cut-out: 354 mm
Depth: 164 mm
Volume occupied by the driver: 3.8 / 0.13 liters/ft³
Net Weight: 5.0 kg

Information

Størrelse:	15"

Størrelse

Vægt:	5,16 kg
Diameter:	393 mm
Dybde:	39,3
Højde:	480 mm

Forsendelsesinformation

Pakke Bredde:	440 mm
Pakke Dybde:	440 mm
Pakke højde:	230 mm
Pakke Vægt:	6,52 kg
