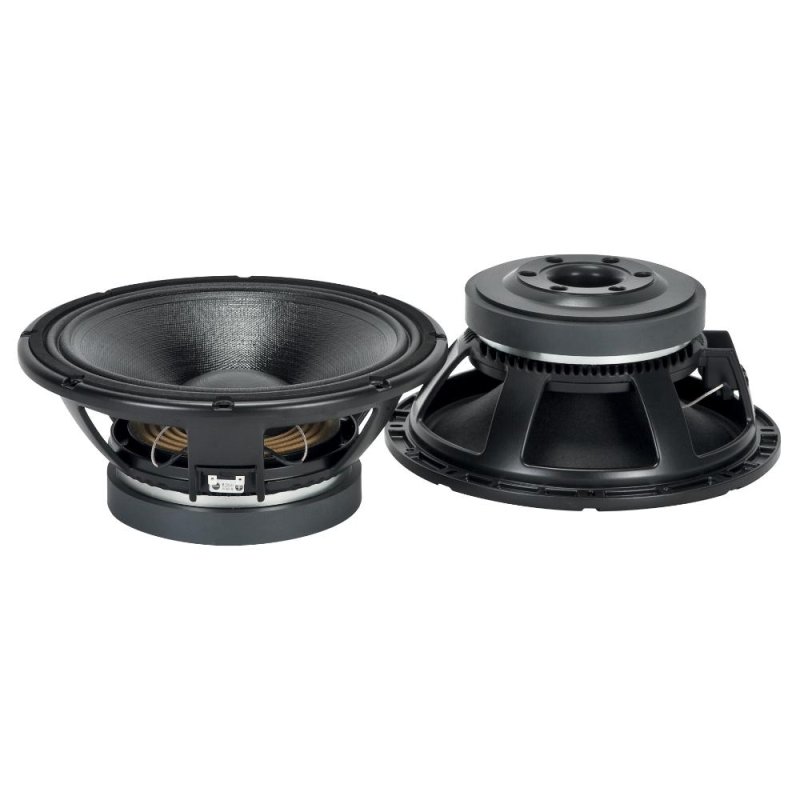

RCF højttalerenhed MB12X351 12" Keramisk 700W

RCF 12" Ceramic Mid-base 700W, 1400W program 3,5"

MB12X351 er designet til at levere sublim frekvensrespons-linearitet med lav forvrængning. En stærk neodymium, magnetisk struktur garanterer dynamik og præcision. Et nyt og unikt 3,5" voice-coil-design tilbyder high-power-handling. Dual-forced hyper-venting-systemet garanterer en effektiv voice-coil-ventilation for minimal power-kompression og utrolig power-handling.

Nominal Diameter: 300 mm
Rated Impedance: 8 Ohm
Program Power: 1400 W AES
Power handling capacity: 700 W AES
Sensitivity: 98.5 dB
Frequency Range: 45 Hz ÷ 2500 Hz
Effective Piston Diameter: 260 mm
Max Excursion Before Damage (peak to peak): 40 mm
Minimum Impedance: 7.1 Ohm
Voice Coil Diameter: 87 mm
Voice Coil Material: Copper
Voice Coil Winding Depth: 19 mm
Number of layers: 2
Kind of layer: inside / outside
Top Plate Thickness: 10 mm
Cone Material: No pressed pulp
Cone Design: Curved
Surround Material: Polycotton
Surround Design: M - roll
Resonance frequency: 55 Hz
DC resistance: 5.4 Ohm
Mechanical factor: 5.9
Electrical factor: 0.27
Total factor: 0.26
BL Factor: 22.5 T · m
Effective Moving Mass: 72 g
Equivalent Cas air load: 46 liters
Effettive piston area: 0.053 m²
Max. linear excursion (mathematical): 5.8 mm
Voice - coil inductance @ 1kHz: 1.3 mH
Half-space efficiency: 3.00 %
Overall Diameter: 320 mm
Bolt Circle Diameter: 293-304 mm
Bolt Hole Diameter: 6.5 mm
Front Mount Baffle Cut-out: 282 mm
Rear Mount Baffle Cut-out: 284 mm
Depth: 130.5 mm
Volume occupied by the driver: 2.2 / 0.077 liters/ft³
Net Weight: 7.6 kg

Information

Størrelse:	12"

Størrelse

Vægt:	7,6 kg
Diameter:	320 mm
Dybde:	32
Højde:	143 mm

Forsendelsesinformation

Pakke Bredde:	354 mm
Pakke Dybde:	364 mm
Pakke højde:	194 mm
Pakke Vægt:	8,4 kg
