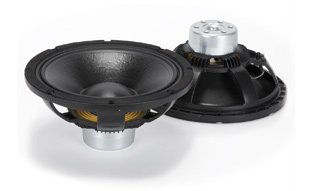

RCF højttalerenhed MB12N301 12" Neodymium 500W

RCF 12" Neo Mid-base 500W, 1000W program, 3"

MB12N301 er en neodymium, højeffektiv, 12" mid-bas, med høj sensitivitet, sublim linearitet og high-power-handling. Den magnetiske struktur drives af en stor neodymium-magnet som leverer sublim flux-modulation i åbningen. Den nye hyper-vented aluminiums-basket og det magnetiske design tilbyder en sublim varme-dissipation og lav power-kompression. M-roll surround og spider-designet tilbyder sublim linearitet og præcis reproduktion.

Nominal Diameter: 300 mm
Rated Impedance: 8 Ohm
Program Power: 1000 W AES
Power handling capacity: 500 W AES
Sensitivity: 98.5 dB
Frequency Range: 50 Hz ÷ 3000 Hz
Effective Piston Diameter: 260 mm
Max Excursion Before Damage (peak to peak): 34 mm
Minimum Impedance: 6.7 Ohm
Voice Coil Diameter: 76 mm
Voice Coil Material: Aluminium
Voice Coil Winding Depth: 17 mm
Number of layers: 2
Kind of layer: inside / outside
Top Plate Thickness: 10 mm
Cone Material: No pressed pulp
Cone Design: Curved
Surround Material: Polycotton
Surround Design: M - roll
Resonance frequency: 54 Hz
DC resistance: 5.8 Ohm
Mechanical factor: 3.1
Electrical factor: 0.26
Total factor: 0.24
BL Factor: 19 T · m
Effective Moving Mass: 48 g
Equivalent Cas air load: 71 liters
Effettive piston area: 0.053 m²
Max. linear excursion (mathematical): 6.0 mm
Voice - coil inductance @ 1kHz: 1.8 mH
Half-space efficiency: 4.00 %
Overall Diameter: 320 mm
Bolt Circle Diameter: 294.5-304 mm
Bolt Hole Diameter: 5.5 mm
Front Mount Baffle Cut-out: 288 mm
Rear Mount Baffle Cut-out: 288 mm
Depth: 133 mm
Volume occupied by the driver: 2.2 / 0.08 liters/ft³
Net Weight: 3.4 kg

Information

Størrelse:	12"

Størrelse

Vægt:	3,4 kg
Diameter:	320 mm
Dybde:	32
Højde:	146 mm

Forsendelsesinformation

Pakke Bredde:	364 mm
Pakke Dybde:	354 mm
Pakke højde:	194 mm
Pakke Vægt:	4,2 kg
