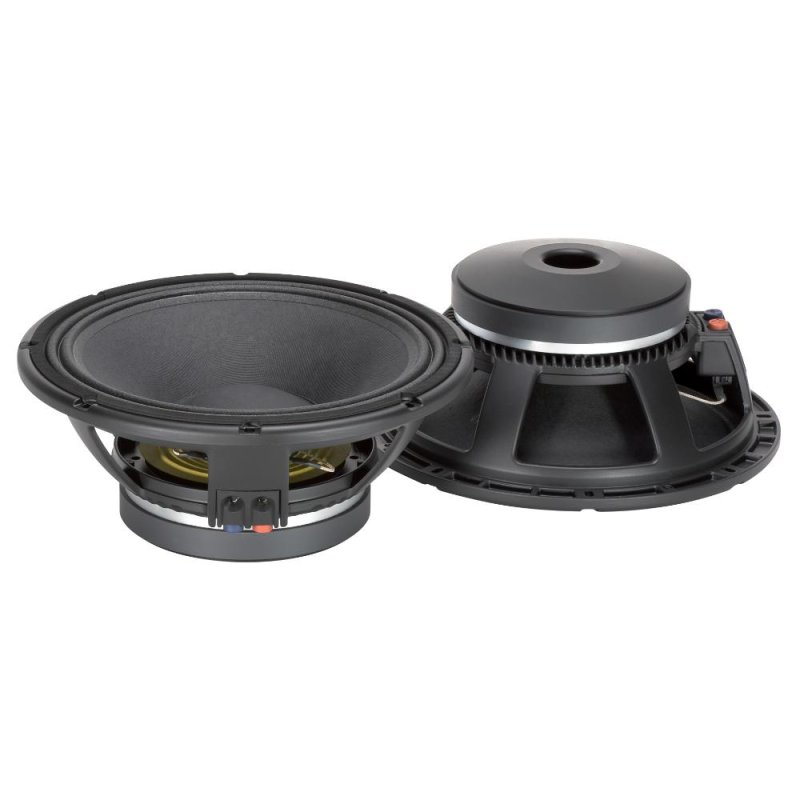

RCF højttalerenhed MB12NG301 12" Keramisk 400W

RCF 12" Ceramic Mid-base 400W, 800W program 3"

MB12G301 tilbyder høj sensitivitet, sublim linearitet og lav forvrængning. Voice-coil-konstruktionen, ophænget og cone-materialerne er designet til at klare 400 W RMS power.

Nominal Diameter: 300 mm
Rated Impedance: 8 Ohm
Program Power: 800 W AES
Power handling capacity: 400 W AES
Sensitivity: 98 dB
Frequency Range: 50 Hz ÷ 3000 Hz
Effective Piston Diameter: 260 mm
Max Excursion Before Damage (peak to peak): 38 mm
Minimum Impedance: 7.2 Ohm
Voice Coil Diameter: 76 mm
Voice Coil Material: Aluminum
Voice Coil Winding Depth: 16 mm
Number of layers: 2
Kind of layer: inside / outside
Top Plate Thickness: 10 mm
Cone Material: No pressed pulp
Cone Design: Curved
Surround Material: Polycotton
Surround Design: M - roll
Resonance frequency: 53 Hz
DC resistance: 5.4 Ohm
Mechanical factor: 4.7
Electrical factor: 0.28
Total factor: 0.27
BL Factor: 17 T · m
Effective Moving Mass: 48 g
Equivalent Cas air load: 72 liters
Effettive piston area: 0.053 m²
Max. linear excursion (mathematical): 5.5 mm
Voice - coil inductance @ 1kHz: 0.7 mH
Half-space efficiency: 3.69 %
Overall Diameter: 320 mm
Bolt Circle Diameter: 293-304 mm
Bolt Hole Diameter: 6.5 mm
Front Mount Baffle Cut-out: 282 mm
Rear Mount Baffle Cut-out: 284 mm
Depth: 138 mm
Volume occupied by the driver: 2.6 / 0.09 liters/ft³
Net Weight: 7.3 kg

Information

Størrelse:	12"

Størrelse

Vægt:	7 kg
Diameter:	320 mm
Dybde:	32
Højde:	146 mm

Forsendelsesinformation

Pakke Bredde:	360 mm
Pakke Dybde:	360 mm
Pakke højde:	210 mm
Pakke Vægt:	8 kg
