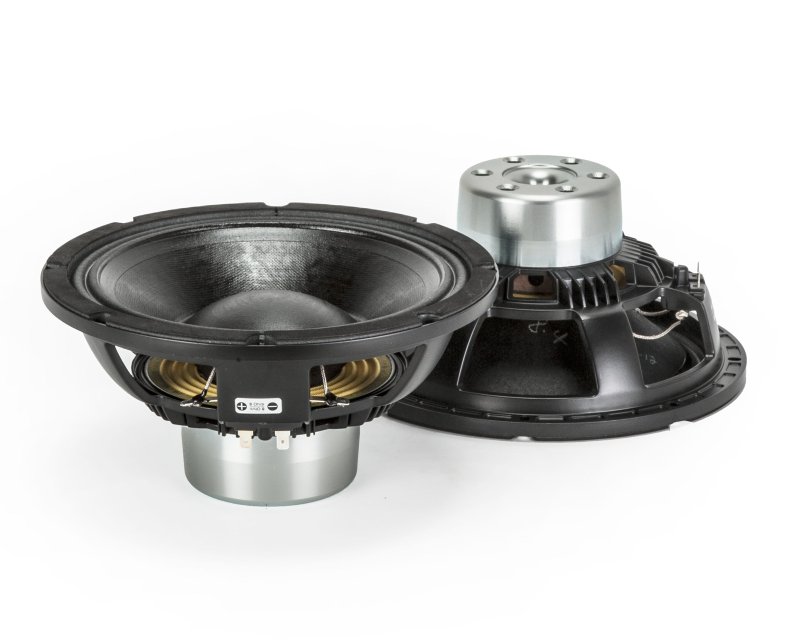

RCF højttalerenhed MB10N305 10" Neodymium 500W

RCF 10" Neo Mid-Base 500W rms 1000W program

MB10N305 er en hyper-vented, lineær mid-bas. Den magnetiske struktur er drevet af en stor neodymium-magnet som tilbyder en utrolig høj flux-tæthed i åbningen. Den nye hyper-vented aluminiums-basket og det magnetiske design tilbyder sublim varme-dissipation og lav power-kompression. M-roll surround og spider-designet leverer sublim linearitet og præcis reproduktion.

Nominal Diameter: 260 mm
Rated Impedance: 8 Ohm
Program Power: 1000 W AES
Power handling capacity: 500 W AES
Sensitivity: 97.5 dB
Frequency Range: 55 Hz ÷ 3500 Hz
Effective Piston Diameter: 210 mm
Max Excursion Before Damage (peak to peak): 34 mm
Minimum Impedance: 6.9 Ohm
Voice Coil Diameter: 76 mm
Voice Coil Material: Aluminium
Voice Coil Winding Depth: 14 mm
Number of layers: 1
Kind of layer: inside / outside
Top Plate Thickness: 10 mm
Cone Material: No pressed pulp
Cone Design: Curved
Surround Material: Polycotton
Surround Design: M-roll
Resonance frequency: 60 Hz
DC resistance: 5.6 Ohm
Mechanical factor: 4.0
Electrical factor: 0.24
Total factor: 0.23
BL Factor: 18.5 T · m
Effective Moving Mass: 36.5 g
Equivalent Cas air load: 31 liters
Effettive piston area: 0.035 m²
Max. linear excursion (mathematical): 5.0 mm
Voice - coil inductance @ 1kHz: 0.9 mH
Half-space efficiency: 2.90 %
Overall Diameter: 260 mm
Bolt Circle Diameter: 241-246 mm
Bolt Hole Diameter: 5.5 mm
Front Mount Baffle Cut-out: 234 mm
Rear Mount Baffle Cut-out: 234 mm
Depth: 116 mm
Volume occupied by the driver: 1.4 / 0.046 liters/ft³
Net Weight: 3.2 kg

Information

Størrelse:	10"

Størrelse

Vægt:	3,2 kg
Diameter:	260 mm
Dybde:	26
Højde:	126 mm

Forsendelsesinformation

Pakke Bredde:	2289 mm
Pakke Dybde:	289 mm
Pakke højde:	169 mm
Pakke Vægt:	3,8 kg
