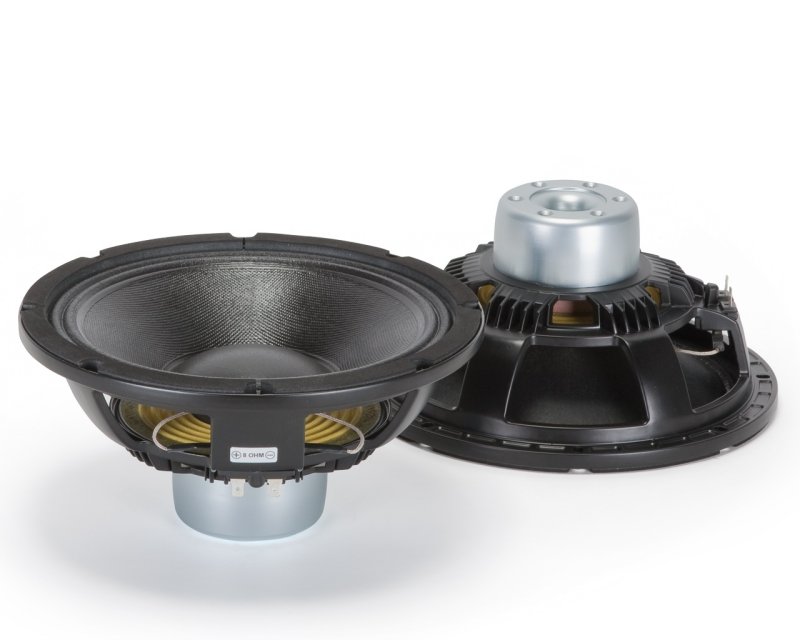

RCF højttalerenhed MB10N251 10" Neodymium 300W

RCF 10" Neo 300W rms, 600W program, 2,5"

MB10N251 er en 10" neodymium mid-bas-driver med en sublim linearitet, god effektivitet og high-power-handling. Et 2,5" aluminium voice-coil kombineret med en stærk glasfiber-former giver høj effektivitet og god frekvensresponsforlængelse. Auminiums-basket og den magnetiske konstruktion giver sublim varme-dissipation og lav power-kompression.

Nominal Diameter: 250 mm
Rated Impedance: 8 Ohm
Program Power: 600 W AES
Power handling capacity: 300 W AES
Sensitivity: 97 dB
Frequency Range: 50 Hz ÷ 3500 Hz
Effective Piston Diameter: 210 mm
Max Excursion Before Damage (peak to peak): 40 mm
Minimum Impedance: 6.4 Ohm
Voice Coil Diameter: 64 mm
Voice Coil Material: Aluminum
Voice Coil Winding Depth: 14 mm
Number of layers: 1
Kind of layer: outside
Top Plate Thickness: 9 mm
Cone Material: No pressed pulp
Cone Design: Curved
Surround Material: Polycotton
Surround Design: M - roll
Resonance frequency: 55 Hz
DC resistance: 5.1 Ohm
Mechanical factor: 4.1
Electrical factor: 0.29
Total factor: 0.27
BL Factor: 15.2 T · m
Effective Moving Mass: 36 g
Equivalent Cas air load: 38.8 liters
Effettive piston area: 0.035 m²
Max. linear excursion (mathematical): 4.8 mm
Voice - coil inductance @ 1kHz: 1.3 mH
Half-space efficiency: 2.20 %
Overall Diameter: 260 mm
Bolt Circle Diameter: 241-246 mm
Bolt Hole Diameter: 5.5 mm
Front Mount Baffle Cut-out: 234 mm
Rear Mount Baffle Cut-out: 234 mm
Depth: 113 mm
Volume occupied by the driver: 1.2 / 0.04 liters/ft³
Net Weight: 2.2 kg

Information

Størrelse:	10"

Størrelse

Vægt:	2,5 kg
Diameter:	260 mm
Dybde:	26
Højde:	123 mm

Forsendelsesinformation

Pakke Bredde:	290 mm
Pakke Dybde:	290 mm
Pakke højde:	180 mm
Pakke Vægt:	3 kg
