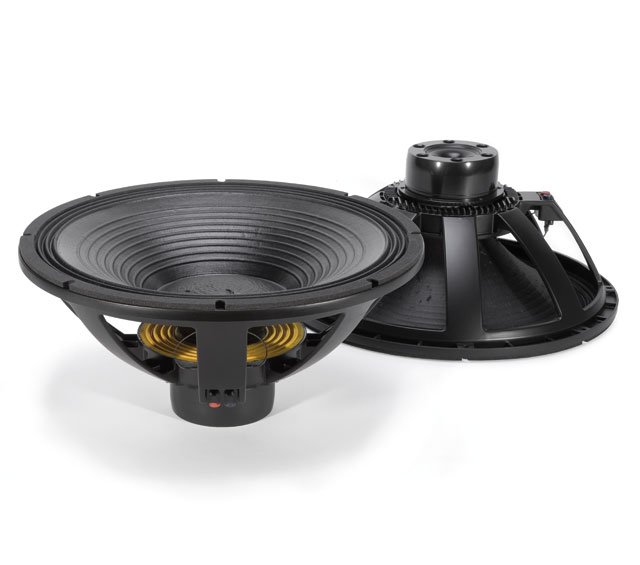

RCF højttalerenhed LF21N451 21" Neodymium 1500W

RCF 21" Neo woofer 1500W rms 3000W program 4,5"

LF21N451 er en high-power-handling, effektiv transducer specielt designet til kraftfuld og præcise sub-basfrekvenser, med lav forvrængning og lav power-kompression. Et fuldt optimeret T-pole-design genererer den minimale mængde flux-modulation. Et dual-forced udluftningssystem tilbyder en effektiv voice-coil-ventilation for at minimere power-kompressionen.

Nominal Diameter: 530 mm
Rated Impedance: 8 Ohm
Program Power: 3000 W AES
Power handling capacity: 1500 W AES
Sensitivity: 98.5 dB
Frequency Range: 30 Hz ÷ 1000 Hz
Effective Piston Diameter: 470 mm
Max Excursion Before Damage (peak to peak): 58 mm
Minimum Impedance: 7.1 Ohm
Voice Coil Diameter: 115 mm
Voice Coil Material: Copper
Voice Coil Winding Depth: 34 mm
Number of layers: 2
Kind of layer: inside / outside
Top Plate Thickness: 15 mm
Cone Material: No pressed pulp carbon fiber reinforced
Cone Design: Curved
Surround Material: Polycotton
Surround Design: Triple roll
DC resistance: 5.6 Ohm
Mechanical factor: 6
Electrical factor: 0.27
Total factor: 0.26
BL Factor: 34.5 T · m
Effective Moving Mass: 315 g
Equivalent Cas air load: 375 liters
Effettive piston area: 0.173 m²
Max. linear excursion (mathematical): 13.2 mm
Voice - coil inductance @ 1kHz: 3.0 mH
Half-space efficiency: 4.0 %
Overall Diameter: 547 mm
Bolt Circle Diameter: 527 mm
Bolt Hole Diameter: 6.5 mm
Front Mount Baffle Cut-out: 512 mm
Rear Mount Baffle Cut-out: 512 mm
Depth: 250 mm
Volume occupied by the driver: 6.5 / 0.229 liters/ft³
Net Weight: 10.9 kg

Information

Størrelse:	21"

Størrelse

Vægt:	10,9 kg
Diameter:	547 mm
Dybde:	54,7
Højde:	249 mm

Forsendelsesinformation

Pakke Bredde:	584 mm
Pakke Dybde:	604 mm
Pakke højde:	284 mm
Pakke Vægt:	13,5 kg
