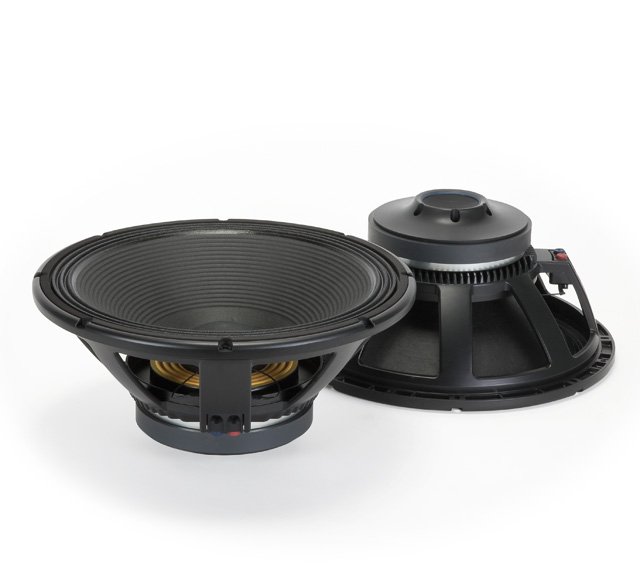

RCF højttalerenhed LF18X451 18" Keramisk

RCF 18" Ceramic Woofer 1800W, 3600W program, 4,5"

LF18X451 tilbyder lineær frekvensrespons og high-power-handling. LF18X451 benytter fiber-loaded cone sammen med en high-excursion triple-roll geometry-surround. Denne kombination leverer en maksimal peak to peak excursion på 54 mm. Det nye dual-forced hyper-venting-system garanterer en effektiv voice-coil-ventilation for minimal power-kompression og power-handling.

Nominal Diameter: 460 mm
Rated Impedance: 8 Ohm
Program Power: 3600 W AES
Power handling capacity: 1800 W AES
Sensitivity: 97 dB
Frequency Range: 30 Hz ÷ 1000 Hz
Effective Piston Diameter: 395 mm
Max Excursion Before Damage (peak to peak): 54 mm
Minimum Impedance: 6.8 Ohm
Voice Coil Diameter: 115 mm
Voice Coil Material: Copper
Voice Coil Winding Depth: 34 mm
Number of layers: 2
Kind of layer: inside / outside
Top Plate Thickness: 15 mm
Cone Material: No presed pulp
Cone Design: Straight
Surround Material: Polycotton
Surround Design: Triple roll
Resonance frequency: 30 Hz
DC resistance: 5.4 Ohm
Mechanical factor: 6.7
Electrical factor: 0.29
Total factor: 0.28
BL Factor: 30.5 T · m
Effective Moving Mass: 260 g
Equivalent Cas air load: 220 liters
Effettive piston area: 0.122 m²
Max. linear excursion (mathematical): 13.5 mm
Voice - coil inductance @ 1kHz: 2,9 mH
Half-space efficiency: 1.90 %
Overall Diameter: 465 mm
Bolt Circle Diameter: 442-447 mm
Bolt Hole Diameter: 6.5 mm
Front Mount Baffle Cut-out: 424 mm
Rear Mount Baffle Cut-out: 424 mm
Depth: 194 mm
Volume occupied by the driver: 6.5 / 0.23 liters/ft³
Net Weight: 15.2 kg

Information

Størrelse:	18"

Størrelse

Vægt:	15,2 kg
Diameter:	465 mm
Dybde:	46,5
Højde:	212 mm

Forsendelsesinformation

Pakke Bredde:	524 mm
Pakke Dybde:	494 mm
Pakke højde:	254 mm
Pakke Vægt:	17 kg
