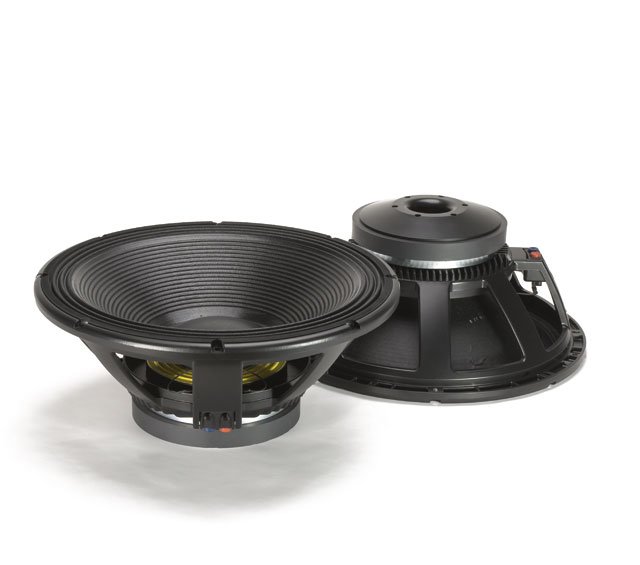

RCF højttalerenhed L18P400 18" Keramsik 1000W

RCF 18" Ceramic Woofer 1000W, 2000W program, 4"

L18P400 tilbyder sublim lineær frekvensrespons og high-power-håndtering. Samtidig genererer L18P400 den mindst mulige harmoniske forvrængning. Et fuldt optimeret T-pole-design leverer den minimale mængde flux-modulation.

Nominal Diameter: 460 mm
Rated Impedance: 8 Ohm
Program Power: 2000 W AES
Power handling capacity: 1000 W AES
Sensitivity: 97.5 dB
Frequency Range: 25 Hz ÷ 1000 Hz
Effective Piston Diameter: 395 mm
Max Excursion Before Damage (peak to peak): 50 mm
Minimum Impedance: 6.5 Ohm
Voice Coil Diameter: 100 mm
Voice Coil Material: Copper
Voice Coil Winding Depth: 25 mm
Number of layers: 2
Kind of layer: inside / outside
Top Plate Thickness: 15 mm
Cone Material: No pressed pulp
Cone Design: Straight
Surround Material: Polycotton
Surround Design: Triple roll
Resonance frequency: 29 Hz
DC resistance: 5.1 Ohm
Mechanical factor: 7.6
Electrical factor: 0.29
Total factor: 0.28
BL Factor: 24.6 T · m
Effective Moving Mass: 200 g
Equivalent Cas air load: 340 liters
Effettive piston area: 0.122 m²
Max. linear excursion (mathematical): 8.8 mm
Voice - coil inductance @ 1kHz: 2.5 mH
Half-space efficiency: 2.63 %
Overall Diameter: 465 mm
Bolt Circle Diameter: 442-447 mm
Bolt Hole Diameter: 6.5 mm
Front Mount Baffle Cut-out: 424 mm
Rear Mount Baffle Cut-out: 424 mm
Depth: 205 mm
Volume occupied by the driver: 6.0 / 0.21 liters/ft³
Net Weight: 13.3 kg

Information

Størrelse:	18"

Størrelse

Vægt:	13,5 kg
Diameter:	465 mm
Dybde:	46,5
Højde:	206 mm

Forsendelsesinformation

Pakke Bredde:	520 mm
Pakke Dybde:	500 mm
Pakke højde:	270 mm
Pakke Vægt:	15,5 kg
