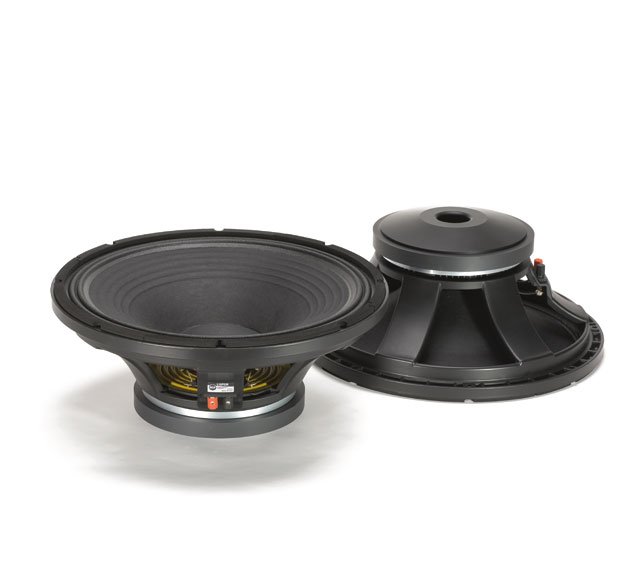

RCF højttalerenhed L15P530 15" Keramisk 350W

RCF 15" Ceramic woofer 350W, 700W program, 3"

L15P530 er en 15" high-power mid-bas. Den tilbyder en høj sensitivitet, sublim lineæritet og lav forvrængning. En effektiv varme-dissipation sikres af en indbygget radiator. Luften tvinges ind i radiatoren på grund af det forseglede spider-design.

Nominal Diameter: 380 mm
Rated Impedance: 8 Ohm
Program Power: 700 W AES
Power handling capacity: 350 W AES
Sensitivity: 100 dB
Frequency Range: 40 Hz ÷ 3000 Hz
Effective Piston Diameter: 330 mm
Max Excursion Before Damage (peak to peak): 36 mm
Minimum Impedance: 5.9 Ohm
Voice Coil Diameter: 76 mm
Voice Coil Material: Aluminum
Voice Coil Winding Depth: 18 mm
Number of layers: 1
Kind of layer: outside
Top Plate Thickness: 10 mm
Cone Material: No pressed pulp
Cone Design: Curved
Surround Material: Polycotton
Surround Design: M - roll
Resonance frequency: 45 Hz
DC resistance: 5.1 Ohm
Mechanical factor: 7.5
Electrical factor: 0.51
Total factor: 0.48
BL Factor: 15.3 T · m
Effective Moving Mass: 83 g
Equivalent Cas air load: 160 liters
Effettive piston area: 0.085 m²
Max. linear excursion (mathematical): 6.5 mm
Voice - coil inductance @ 1kHz: 1.45 mH
Half-space efficiency: 2.76 %
Overall Diameter: 387 mm
Bolt Circle Diameter: 371 mm
Bolt Hole Diameter: 6.5 mm
Front Mount Baffle Cut-out: 352 mm
Rear Mount Baffle Cut-out: 360 mm
Depth: 163 mm
Volume occupied by the driver: 3.8 / 0.13 liters/ft³
Net Weight: 9.5 kg

Information

Størrelse:	15"

Størrelse

Vægt:	8,7 kg
Diameter:	387 mm
Dybde:	38,7
Højde:	165 mm

Forsendelsesinformation

Pakke Bredde:	430 mm
Pakke Dybde:	435 mm
Pakke højde:	215 mm
Pakke Vægt:	10,2 kg
