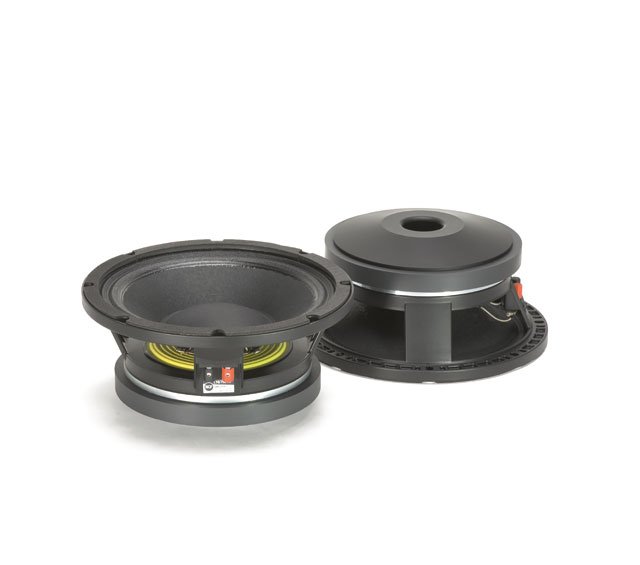

RCF højttalerenhed L10/750YK 10" Keramisk 350W

RCF 10" Ceramic Mid-base 350W, 700W program, 3"

L10-750YK er en professionel midbas-woofer som tilbyder en høj dynamik og et højt output. Wooferen har et 3" coil, en fiberglasformer og en kobbertrådsvikling som forbedrer den forbigående peak-respons og giver en god forlængelse hos mid-high-frekvenserne. En specielt designet M-roll surround garanterer en lav midrange-forvrængning og perfekt dæmpning af den uægte resonans.

Nominal Diameter: 250 mm
Rated Impedance: 8 Ohm
Program Power: 700 W AES
Power handling capacity: 350 W AES
Sensitivity: 100 dB
Frequency Range: 70 Hz ÷ 3000 Hz
Effective Piston Diameter: 210 mm
Max Excursion Before Damage (peak to peak): 40 / 1.6 mm
Minimum Impedance: 6.7 Ohm
Voice Coil Diameter: 76 mm
Voice Coil Material: Copper
Voice Coil Winding Depth: 9 mm
Number of layers: 2
Kind of layer: inside / outside
Top Plate Thickness: 9 mm
Cone Material: No pressed pulp
Cone Design: Curved
Surround Material: Polycotton
Surround Design: M - roll
Resonance frequency: 68 Hz
DC resistance: 5.1 Ohm
Mechanical factor: 4.2
Electrical factor: 0.25
Total factor: 0.24
BL Factor: 17.5 T · m
Effective Moving Mass: 36 g
Equivalent Cas air load: 26 liters
Effettive piston area: 0.035 m²
Max. linear excursion (mathematical): 2.5 mm
Voice - coil inductance @ 1kHz: 1.3 mH
Half-space efficiency: 3.15 %
Overall Diameter: 260 mm
Bolt Circle Diameter: 242-247 mm
Bolt Hole Diameter: 7 mm
Front Mount Baffle Cut-out: 230 mm
Rear Mount Baffle Cut-out: 229 mm
Depth: 120 mm
Volume occupied by the driver: 1.2 / 0.04 liters/ft³
Net Weight: 7.7 kg

Information

Størrelse:	10"

Størrelse

Vægt:	7 kg
Diameter:	260 mm
Dybde:	26
Højde:	117 mm

Forsendelsesinformation

Pakke Bredde:	290 mm
Pakke Dybde:	285 mm
Pakke højde:	185 mm
Pakke Vægt:	7,9 kg
