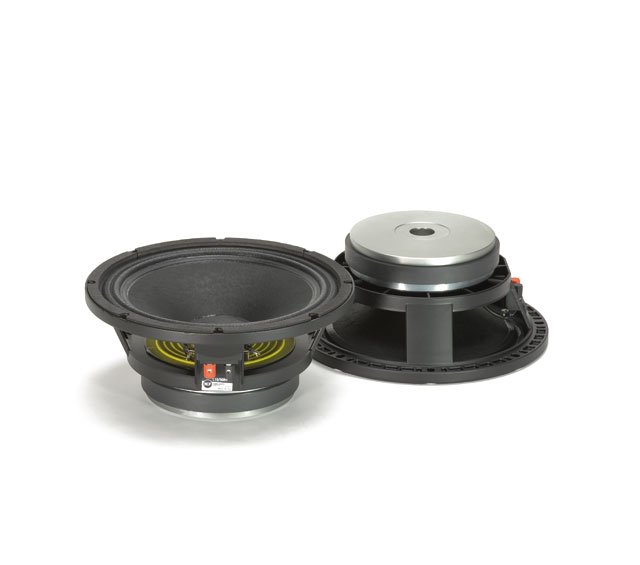

RCF højttalerenhed L10/568H 10" Keramisk 200W

RCF 10" Ceramic Woofer 200W, 400W program, 2" - ART310

Høj sensitivitet og sublim linearitet. En kobberring hjælper med at reducerer forvrængning og glatter responsen op til 3 kHz. Voicecoil-konstruktionen, ophænget og cone-materialerne er designet til at kunne klare en kraft på 350 W RMS.
Passer bla. til ART310 højttaler.

Nominal Diameter: 250 / 10 mm/inch
Rated Impedance: 8 Ohm
Program Power: 400 W AES
Power handling capacity: 200 W AES
Sensitivity: 97.5 dB
Frequency Range: 50 Hz ÷ 3000 Hz
Effective Piston Diameter: 210 mm
Max Excursion Before Damage (peak to peak): 40 mm
Minimum Impedance: 6.6 Ohm
Voice Coil Diameter: 51 mm
Voice Coil Material: Copper
Voice Coil Winding Depth: 13 mm
Number of layers: 2
Kind of layer: inside / outside
Top Plate Thickness: 9 mm
Cone Material: No pressed pulp
Cone Design: Curved
Surround Material: Polycotton
Surround Design: M - roll
Resonance frequency: 70 Hz
DC resistance: 5.1Ohm
Mechanical factor: 6
Electrical factor: 0.41
Total factor: 0.38
BL Factor: 12.8 T · m
Effective Moving Mass: 30 g
Equivalent Cas air load: 29.4 liters
Effettive piston area: 0.035 m²
Max. linear excursion (mathematical): 4.3 mm
Voice - coil inductance @ 1kHz: 1.05 mH
Half-space efficiency: 2.37%
Overall Diameter: 260 mm
Bolt Circle Diameter: 242-247 mm
Bolt Hole Diameter: 7 mm
Front Mount Baffle Cut-out: 230 mm
Rear Mount Baffle Cut-out: 229 mm
Depth: 115 mm
Volume occupied by the driver:1.1 / 0.04 liters/ft³
Net Weight: 4.4 kg

Information

Størrelse:	10"

Størrelse

Vægt:	5 kg
Diameter:	260 mm
Dybde:	26
Højde:	113 mm

Forsendelsesinformation

Pakke Bredde:	285 mm
Pakke Dybde:	285 mm
Pakke højde:	180 mm
Pakke Vægt:	5,5 kg
