AudioPress Box 216 C-D Dante stageboks 1 Dante + 2 Mic in / 16 out

Beskrivelse

Specifikationer

Video

Beskrivelse

AudioPressBox APB-216 C-D

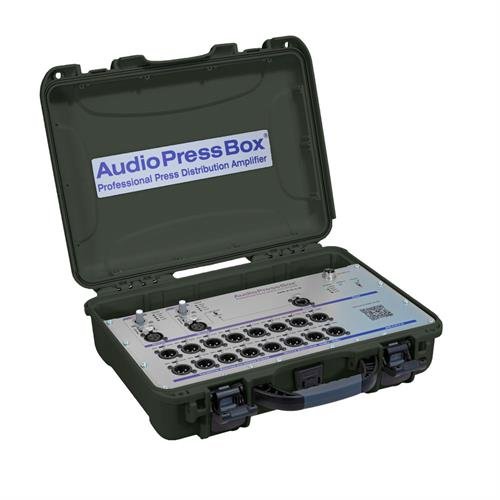

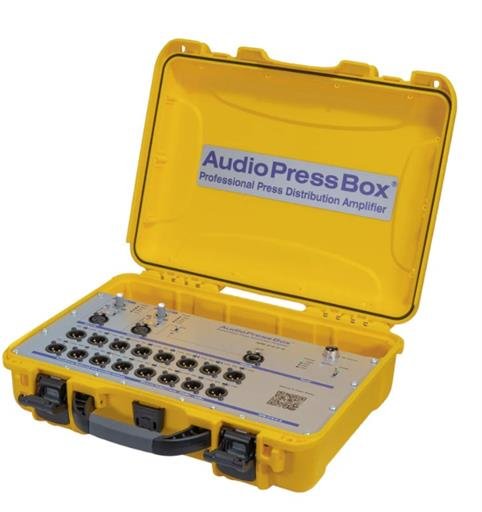

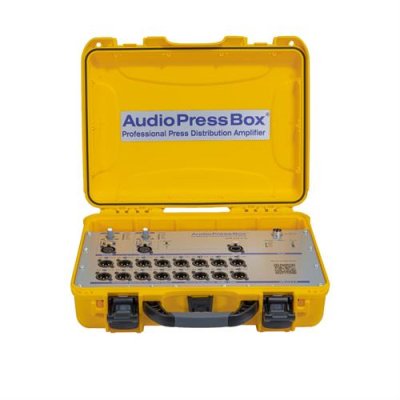

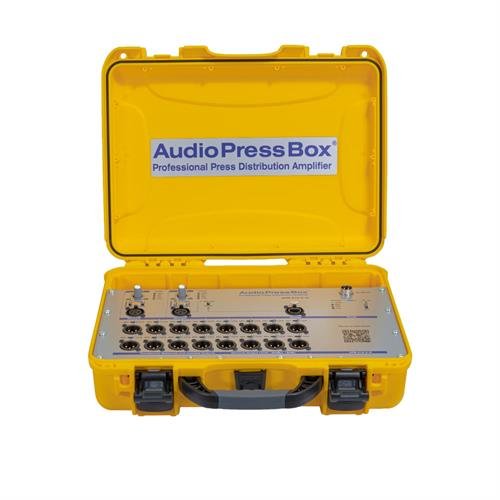

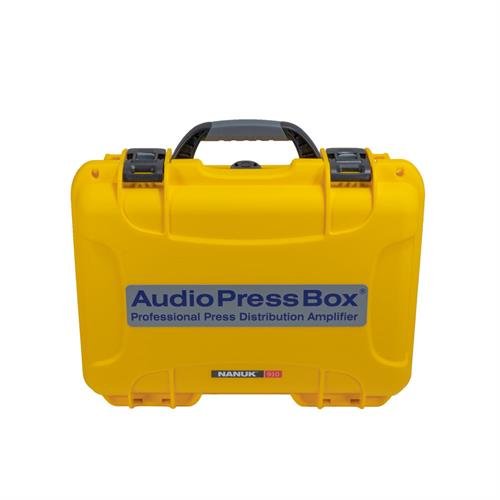

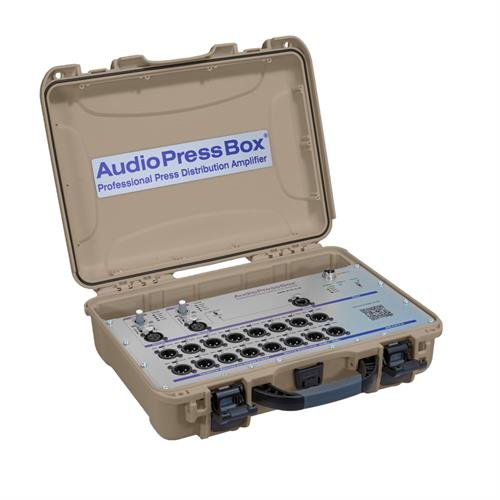

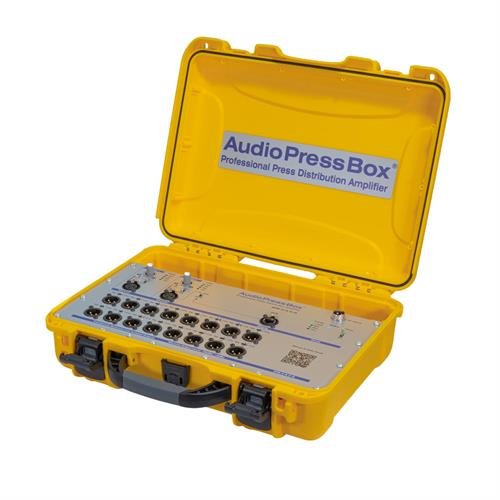

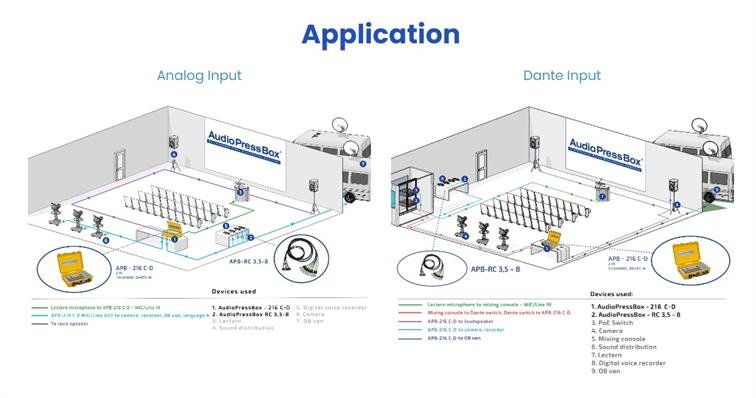

Professional portable, active, Dante-enabled pressbox with 2 Line/Mic & 1 ch Dante inputs and 16 Line/Mic outputs. It is suitable for both indoor and outdoor press conferences due to built-in rechargeable accu pack and heavy duty Nanuk case.

2 MIC (phantom power) / LINE Inputs balanced with gain control and 26dB PAD
1 Channel DANTE Input - RJ45 ethercon 16 High quality independent transformer balanced and isolated outputs
Each Output is switchable between MIC or LINE level
Built-in Compressor and Limiter for each Input
On unit printed QR code for online acces to manual, user guide and video guide
Li-Ion AccuPack with microprocessor controlled battery management
10 hour full load capacity. Note: AccuPack is placed inside the unit

Audio Press Box APB-216 C-D
Type 2 in 16 out with Dante
Groups 1
Input section
Inputs 2 analog, 1 Dante
Analog
Input connectors Balanced, XLR
Input Gain Mic: +22/+62dB Line: -4/+36dB
Max. input level Mic: -10/-30dBu Line: +36/-4dBu
Phantom Voltage 48V
Input Impedance Mic: 2,4 k Line: 3,5 k
Dante
Number of channels 1
PoE Requirement No
Reference level -18dBFS
Input connector RJ45
Output section
Outputs 16 Line/MIC level
Output connectors Balanced, XLR
Nominal Output Level +6dBu
Maximum Output Level +20dBu (no load)
+14dBu (600)
Output impedance Mic: 220 Line: 600
Transformer isolated outputs Yes (each output)
SNR 86dB
Frequency Response 120Hz to 30kHz/ -1dB
Controls
Input section 26dB PAD, Input gain, Phantom, Input 2/ Dante switch
Output section Power switch, Output PAD
Indicators
Input section Phantom power, Input level
Power
Power Supply 24V DC, 1A external adaptor
Battery Li-Ion, 14,4V 2200mAh
Battery operation time up to 20 hours

Specifikationer

Tilslutninger

In-put:	1 x Dante og 2 Mic/Line
Out-put:	16 Line/MIC level

Størrelse

Vægt:	4,8
Bredde:	370 mm
Dybde:	300 mm
Højde:	120 mm
