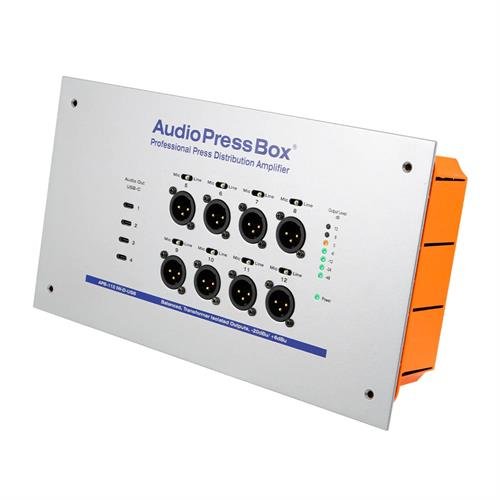

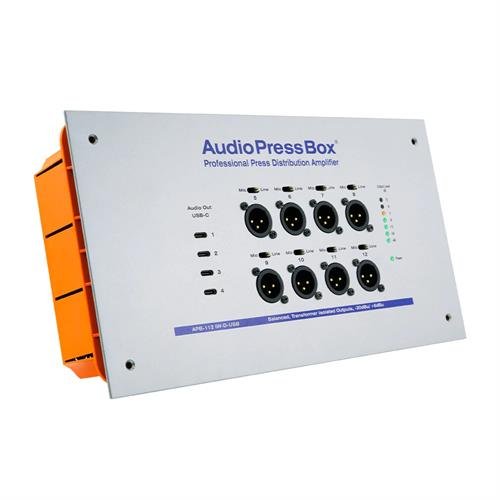

AudioPress Box in-wall Dante stageboks, 8 mic/line og 4 USB-c out

AudioPressBox 122 IW-D-USB

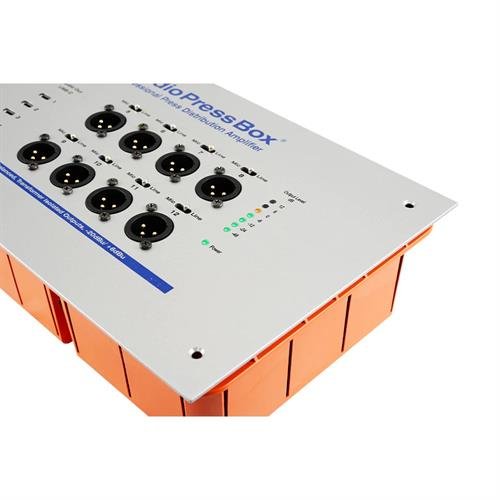

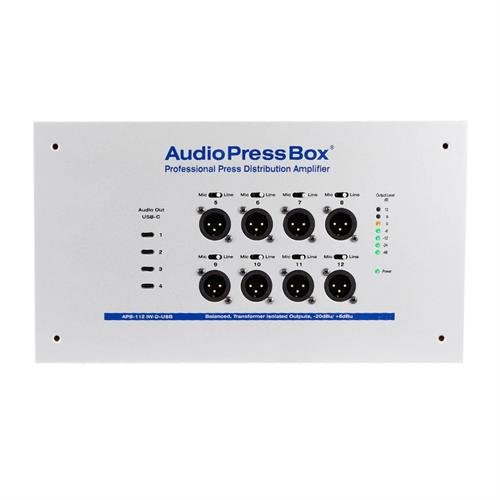

Professional, in wall, active, AudioPressBox unit with 1 channel DANTE input, 8 LINE/Mic outputs and 4 USB-C outputs.

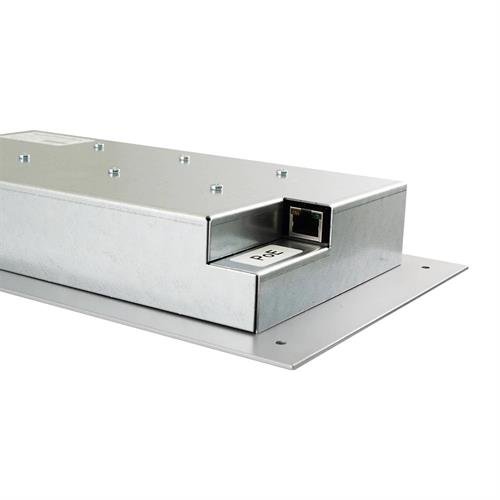

It is powered via PoE so you need only 1 cable for the signal and power.
The easy install allows for quick setup.

1 channel DANTE input - RJ45
8 high quality balanced and individually transformer isolated outputs

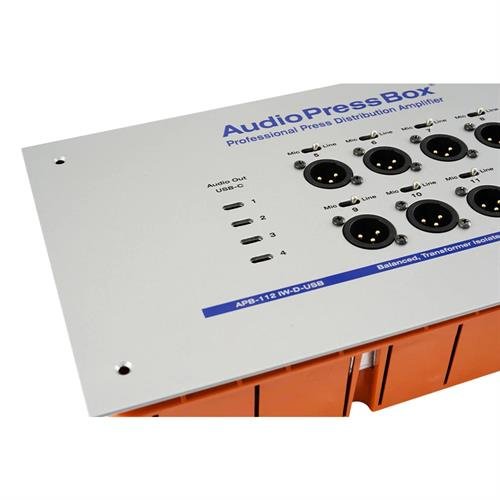

4 Digital USB-C outputs
Each XLR Output is switchable between MIC or LINE output level
The unit is powered only via PoE from DANTE network

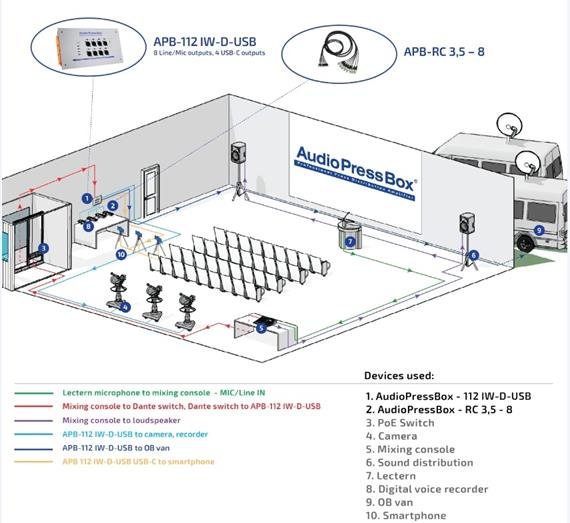

Thanks to DANTE patching you can easily expand number of channels or number of outputs by adding other APB-112 IW-D or APB-112 IW-D-USB units

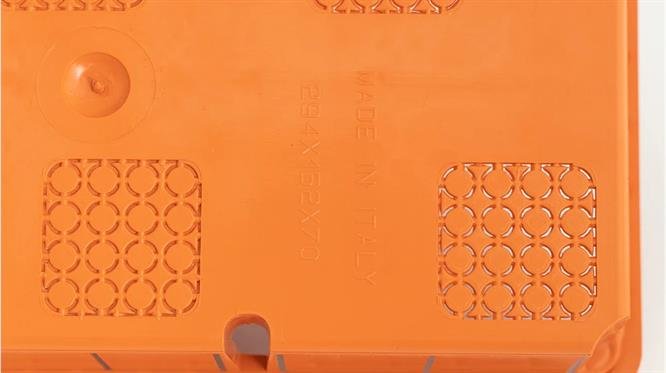

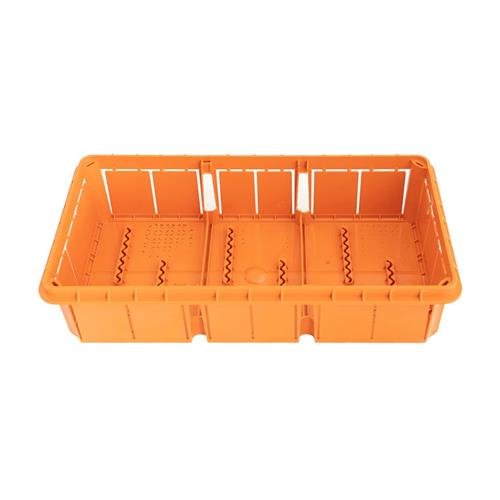

The package also contains the scame flush mounting box

Audio Press Box APB-112 IW-D-USB
Type 1 In 12 Out
Groups 1
Input section
Inputs 1
Input connectors RJ45 - Dante
PoE Requirement YES
Reference level -18dBFS
Output section
Analog Outputs
Outputs 8 Line/MIC level
Output connectors Balanced, XLR
Nominal Output Level +6dBu
Maximum Output Level +20dBu (no load) +14dBu (600)
Output impedance Mic: 220 Ohm. Line: 600 Ohm
Transformer isolated outputs Yes (each output)
SNR >70 dB
Frequency Response 80Hz to 20kHz/-3dB
Digital Outputs
Outputs 4x USB Type C
Compliant USB Specification USB 2.0
Supported Sampling Rates 8kHz, 11.025kHz, 16kHz, 22.05kHz, 32kHz, 44.1kHz, 48kHz
Bit Depth 16-Bit
Interface Powering Bus powered (from connected USB host device)
Charging capability No
Indicators
Output section Output level, Power
Power
Power Supply PoE, Type 1, Class 3 (12,95W)

Tilslutninger

In-put:	Dante
Out-put:	8 mic/line og 4 USB-c

Størrelse

Vægt:	2,70 kg
Bredde:	138 mm
Dybde:	50 mm
Højde:	280 mm
