RCF mixer F 24XR 24 kanaler, DSP og USB

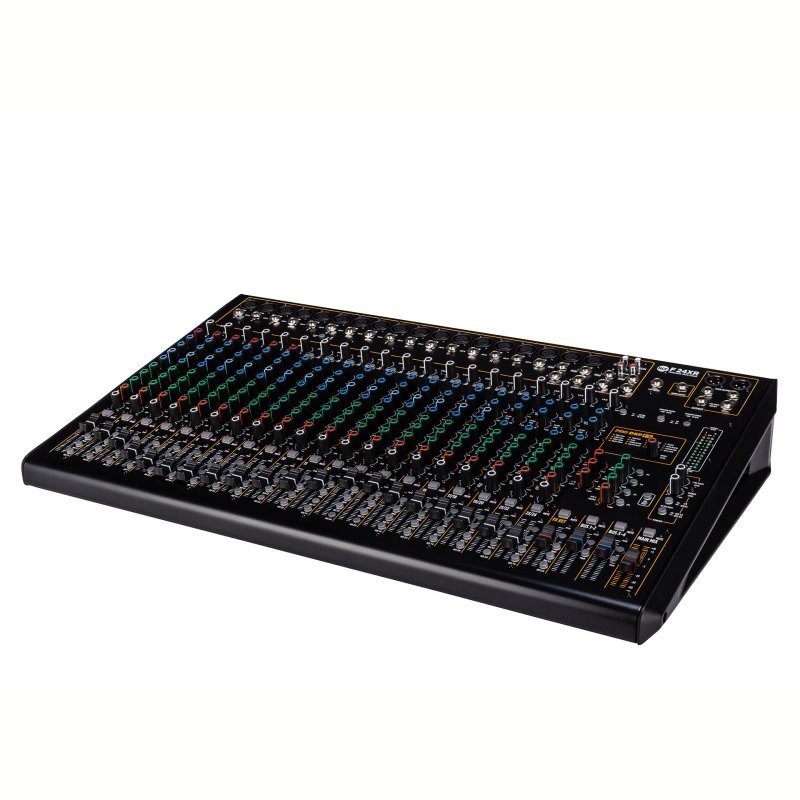

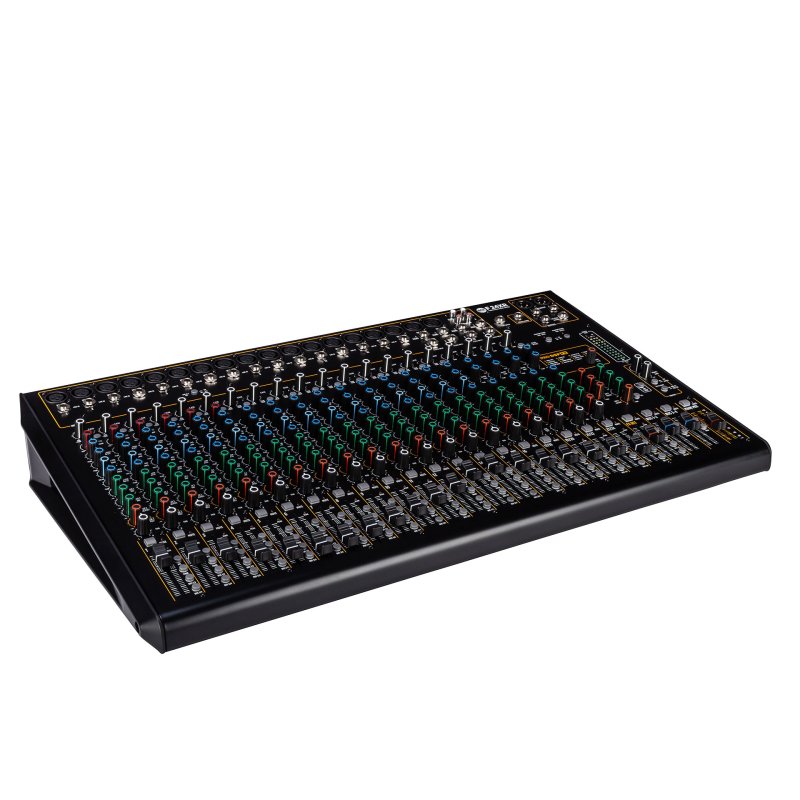

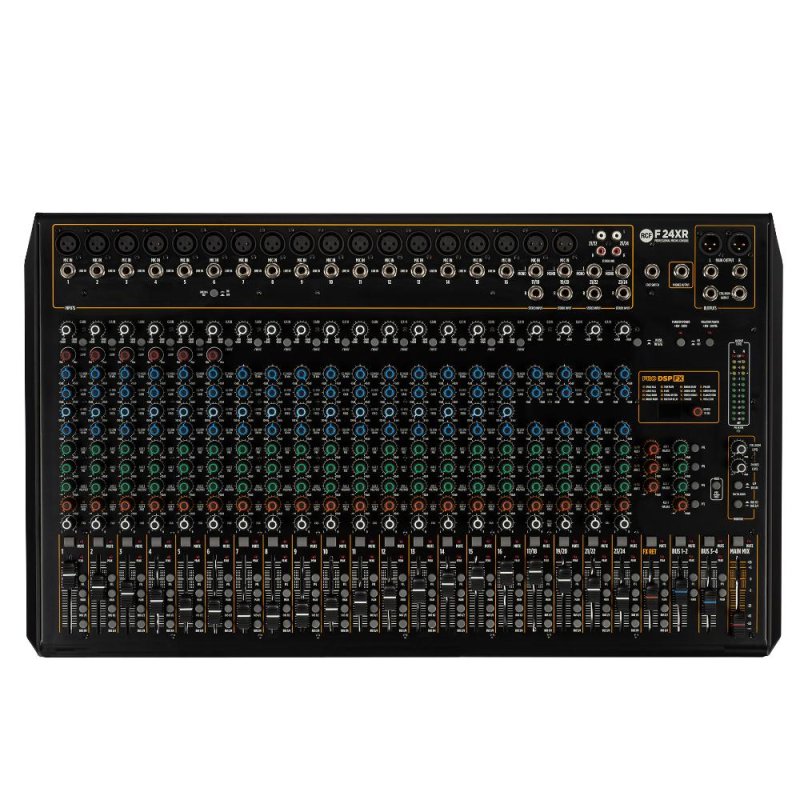

RCF F 24XR
24-CHANNEL MIXING CONSOLE WITH MULTI-FX & RECORDING

Sturdy Metal Chassis
PRO DSP FX onboard with 16 presets
Stereo Recording and Playback via USB ports
Balanced main output audio path from input to output
6 single control compressors
Mono channels provided with 3-band EQ, with selectable mid frequency
Robust, compact and attractive design.
Designed and Engineered in Italy
Internal Universal Power Supply
60 mm faders
The F 24XR features 18 mic preamp inputs, 16 mono line inputs, 4 stereo line inputs, multi-FX, 6 single control compressors, stereo recording and playback via USB port, balanced main output (Stereo XLR + TRS) . The mono channels are provided with 3-band EQ, with selectable mid frequency, and 3-band for stereo channels. The mixer features 16 PRO DSP internal presets, two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post). It also features 60mm faders.


SPECIFICATIONS

ELECTRONIC SPECIFICATIONS
Frequency Response: 20 Hz ÷ 20 kHz
THD+N, 20dB gain, 0dBu out
INPUTS
Channels: 24
Mic: 18
Gain Range: 0 dB ÷ -50 dB
Input Noise Level: -124 dBu A-Weighted
Mic Inputs Impedance: 14 kohm
Low Cut: 80 Hz
Phantom Power +48V: Yes
Mono Line: 16
Gain Selection: 20 dB ÷ -30 dB
Line Input Impedance: 21 kohm
HI-Z Line Inputs: 1
HI-Z Line Inputs Impedance (Mohm): 1 Mohm
Stereo Line: 4
Gain Selection: 20 dB ÷ -30 dB
Stereo Line Input Impedance (kOhm) 14 kohm
Input connectors: XLR, Jack, RCA

OUTPUTS
Main MIX: 1
Control Room: Yes
FX Send: 1
AUX Send: 3
AUX Output: 4
Group Out: 2
Phones: 1
Output connectors: XLR, Jack

OUTPUTS SPECIFICATIONS
Main Out Level: 28 dBu
Aux Out Level: 28 dBu
Group Out Level: 28 dBu
Phones Out impedance (ohm): 150 ohm
Phones Out Level: 10 dBm

COMPRESSORS
RCF Compressors: n°6 Single Control Compressors on Channels 1 to 6

EQ
Input Channels EQ: 1 Semi Parametric / 2 Shelving
Description: High: +/-15 dB @ 10 kHz Shelving Mid: +/-15 dB @ Freq. sel. from 100Hz to 8kHz - Bell Low: +/-15 dB @ 100 Hz Shelving

AUXILIARY SENDS
AUX: 2 PRE / 1 PRE/POST
FX POST: 1

INTERNAL EFFECTS
Send Effects: 1
USB AUDIO
USB Audio Interface: Yes
Type: B
Play trk: 2
Rec trk: 2
Supported Sample Rate: 44.1, 48.0 kHz

OTHER FEATURES
Footswitch: Yes

ELECTRICAL SPECIFICATIONS
Power supply: Internal
Voltage requirements: 100 V - 240 V
Power consumption (MAX): 70 W

STANDARD COMPLIANCE
CE compliance: Yes

PHYSICAL SPECIFICATIONS
Cabinet/Case Material: Metal
Color: Black

SIZE
Height: 107 mm / 4.21 inches
Width: 720 mm / 28.35 inches
Depth: 406 mm / 15.98 inches
Weight: 9.5 kg / 20.94 lbs

SHIPPING INFORMATIONS
Package Height: 201 mm / 7.91 inches
Package Width: 759 mm / 29.88 inches
Package Depth: 524 mm / 20.63 inches
Package Weight: 12.5 kg / 27.56 lbs

Størrelse

Vægt:	9,5 kg
Bredde:	720 mm
Dybde:	406 mm
Højde:	107 mm

Forsendelsesinformation

Pakke Bredde:	759 mm
Pakke Dybde:	524 mm
Pakke højde:	201 mm
Pakke Vægt:	12,5 kg
