Signal distribution box SD6/4

SD 6/4 SIGNAL DISTRIBUTION BOX

SD 6/4 er en indgangssignalboks, der fordeler signalerne fra S-COM 19-stikket eller de seks XLR-hunstik på frontpanelet til ti XLR-hanstik på bagpanelet. Indgang 1 og 2 er henholdsvis parallelforbundet med tre XLR-stik på bagpanelet.
De fire AES/EBU IN/OUT-stik er forbundet til bagpanelet.

6 Channels signal distributor
S-COM 19 Input / Link
6 female XLR inputs on the front panel
10 male XLRs outputs on the back panel
Inputs 1 and 2 paralleled to three XLR connectors on the back panel
Four AES/EBU IN/OUT connectors linked to the back panel
1RU Rackmount chassis

General specifications

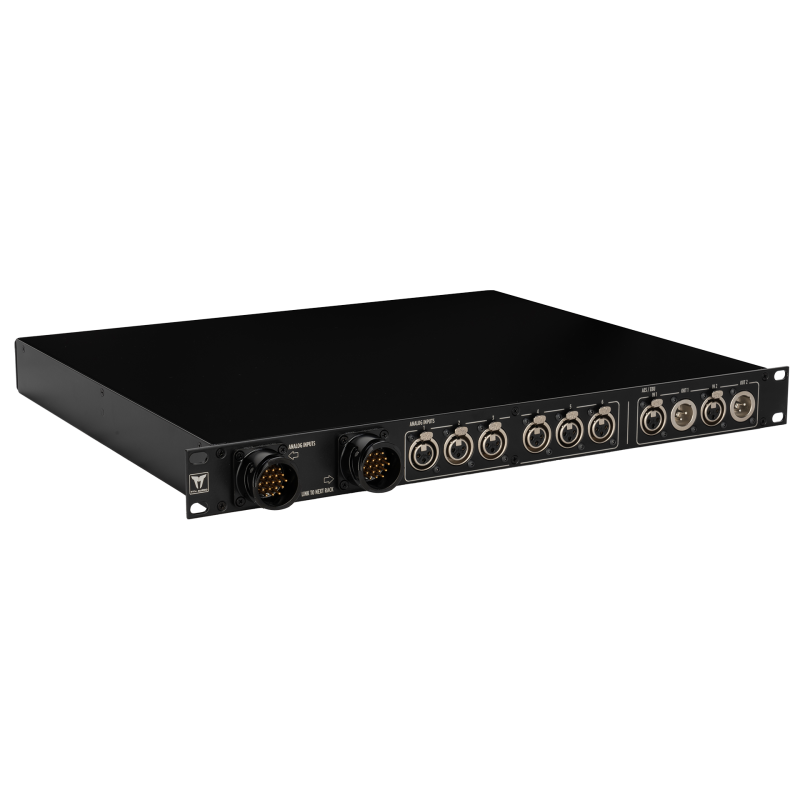

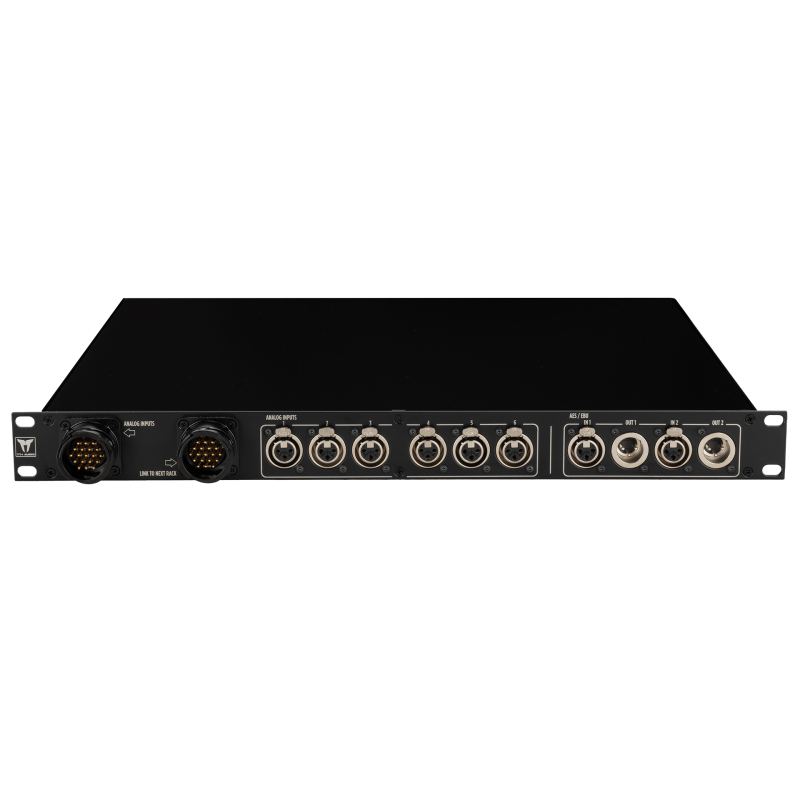

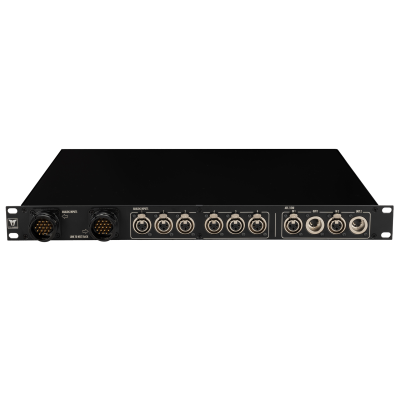

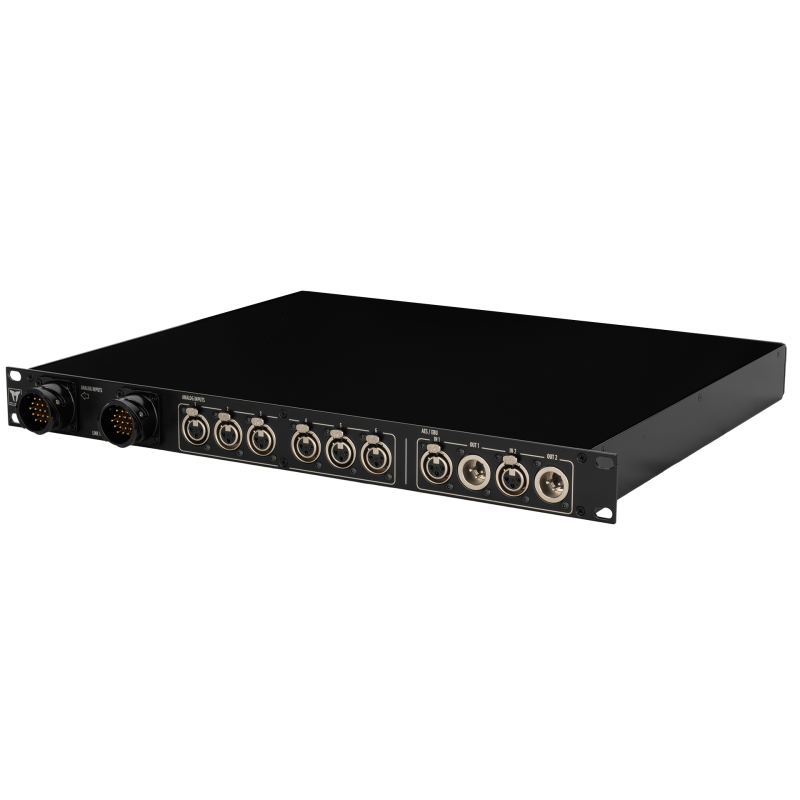

Front connectors:
1x Analog input 6 channel connector (S-COM 19 pin)
1x Analog Link 6 channel connector (S-COM 19 pin)
6x Analog XLR input connector (female XLR 3 pin)
2x AES input (female XLR 3 pin)
2x AES output (male XLR 3 pin)

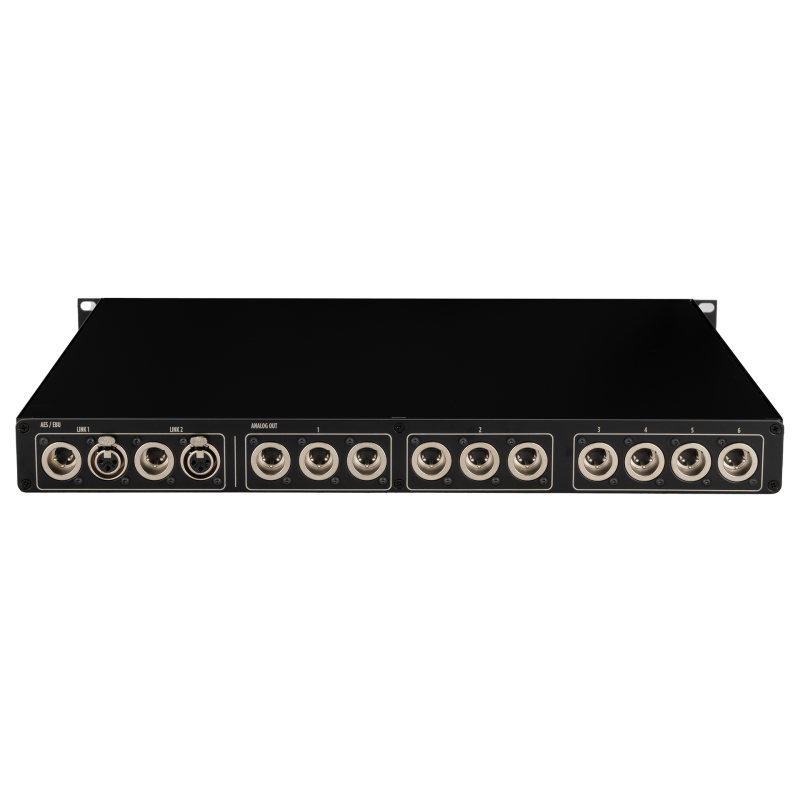

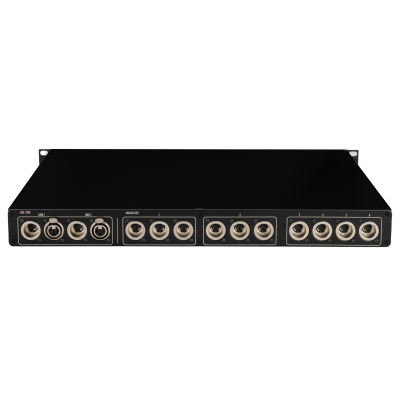

Rear connectors:
3x Analog XLR output connector (male XLR 3 pin)
3x Analog XLR output connector (male XLR 3 pin)
4x Analog XLR output connector (male XLR 3 pin)
2x AES output (male XLR 3 pin) - LINK
2x AES input (female XLR 3 pin) - LINK
Standard compliance
Safety agency
CE compliant

Physical specifications
Cabinet/Case Material Steel
Color Black
Rack mounting 19", 1U

Størrelse

Vægt:	3,5 kg
Bredde:	480 mm
Dybde:	370 mm
Højde:	44 mm

Forsendelsesinformation

Pakke Bredde:	530 mm
Pakke Dybde:	350 mm
Pakke højde:	100 mm
Pakke Vægt:	4,5 kg
