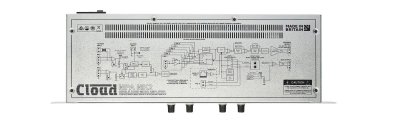

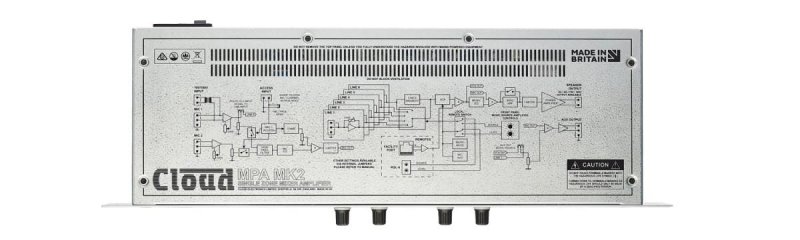

Cloud Zonemixer og forstærker 240W, 6 Line og 4 Mic input

Cloud MPA240 mk2 240W Zonemixer forstærker 100V/4Ohm

Cloud MPA-serien er beregnet til at give en komplet lyd løsning til installationer, detailforretninger, hoteller, mødelokaler mv., hvor musik, annonceringer og/eller fleksibel personsøgning er påkrævet.
Den kombinerer funktionerne i en to-kanal mikrofon mixer med 6-input musikkilde vælger og en mono effektforstærker i en enkelt 1U enhed.

There are two models in the MPA range, which differ only in the
rated power of the amplifier stage:
MPA120 MK2: 120 watts
MPA240 MK2: 240 watts
(ratings are into 4 ohms)

Provides amplification and simple control of music, mic sources and paging in a single unit
Available in two versions, with output power ratings of 120 or 240 W
Integral two-channel microphone mixer with per-input sensitivity adjustment
Front panel controls for music source, music level and level ofeach mic input
Six (unbalanced) stereo line inputs with individual sensitivity adjustment
Two balanced mic inputs – 12 V phantom power available oneither or both
Fixed 100 Hz hi-pass mic channel filter
Separate microphone limiter circuit to prevent power stagelimiter from ducking music signal in the presence of high mic levels
Separate HF/LF EQ adjustments (rear panel) for mic signals and music source
Paging control on Mic 1 input via short-to-ground access connection
Mic 1 configurable as high-voltage input for paging from existing 70/100 V-line system
High-voltage input alternatively selectable to Line 5 input: permits existing background music to be routed via MPA MK2.
Selectable VOX mic-over-music priority on all mic Inputs
Automatic Mic 1-over-Mic 2 priority in Page mode; may be overridden by internal jumper
Selectable LINE 6 priority with choice of release times
Selectable pre-announcement chime
Music Mute control input (N/O or N/C) for interface to an emergency system
Facility port for connection of LM-2, L-1 or M-1 remote input modules via screened Cat 5 cable; LM-2 also allows remote control of music level and line input selection
Facility Port supports BT-1 Bluetooth input module
Compatible with standard Cloud remote control plates: RL-1 Series (music level) and RSL-6 Series (music level and source selection)
Power amplifier protection circuitry
Power amplifier input limiter
Transformerless output stage can be configured to drive either 70/100 V-line systems directly, or low impedance loudspeakers (4/8 ohms)
Switchable 65 Hz low-pass filter: reduces transformer saturation in 70/100 V-line systems
Aux output from pre-amp (balanced, line level)
Automatic power-down function (user-selectable)
ENERGY STAR Certification applied for
Convection cooled (MPA120 MK2); forced-air cooling with variable speed control (MPA240 MK2)
1U 19” rack mounting unit

Akustiske specifikationer

Effekt:	240 watt

Størrelse

Vægt:	2,15 kg
Bredde:	482,6 mm
Dybde:	150 mm
Højde:	44 mm

Forsendelsesinformation

Pakke Bredde:	560 mm
Pakke Dybde:	290 mm
Pakke højde:	60 mm
Pakke Vægt:	3,2 kg

• CL-MPA240MK2_Datasheet.PDF
• CL-MPA240MK2_Manual.PDF
