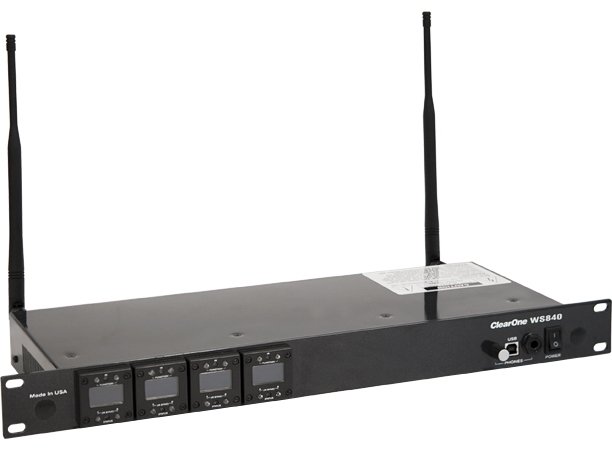

ClearOne WS840 trådløs mikrofon modtager 4 kanal M550 Eurobl

ClearOne WS840 Trådløs mikrofon modtager 4 kanaler (euroblock)

ClearOnes trådløse mikrofonsystem er det mest økonomiske, alsidige og let skalerbare trådløse system på markedet i dag med hidtil uset brugervenlighed og enkel installation.
Dette mikrofonsystem supplerer andet professionelle lydprodukter fra ClearOne inklusive CONVERGE® Pro 1 & 2 mixere,
INTERAKT Mixere, CONVERGE Matrix-produkter.

Der medfølger ladedoc station til 8 enheder (910-6000-800)

WS800-modtageren leveres med eller uden DanteTM indbygget lydnetværk.
Input og output med Euroblock.

Mulige frekvensbånd i Danmark:
M500 (486-512 MHz)
M550 (537-563 MHz)
M586 (573-599 MHz)
M610 (605-631 MHz)

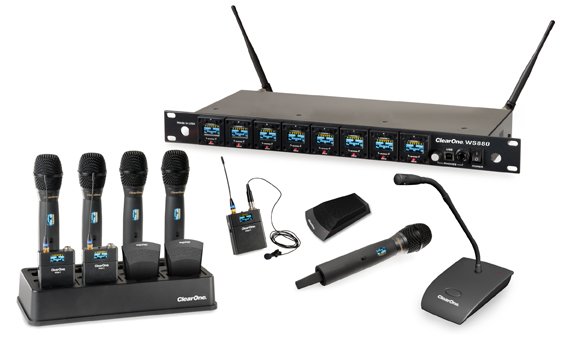

WS800 Wireless Microphone System:
• Wireless System: Up to 24-bit, 48 KHz, digital audio RF technology
• Channels: 4 or 8-channel receivers
• Daisy-chainable up to 32 channels per RF band
• Working Range: 300 feet (line-of-sight)
• Encryption: 256 bit key (AES) always-on, laboratory-verified NSA FIPS 197 standard
• Frequency Response:
16 channels 20 Hz - 20 KHz (stage)
32 channels 20 Hz - 20 KHz (compressed, conference)
32 channels 20 Hz - 12 KHz (non-compressed, conference)
• S/N Ratio: 109 dB (typical ‘A’ weighted)
• Total Harmonic Distortion: • Latency:
Stage............................................ 3ms
Conference, non-compressed..... 4ms
Conference, compressed............ 9-10ms
• Stability:
Flexibility
+ Reliable digital wireless system is the best for flexible spaces and upgrading existing areas without access to cable paths
Economical
+ Cost-effective and flexible as one system can serve the wireless needs of up to six rooms
Scalability
+ Provides up to 32 channels per RF band allowing channels to be added in the field to respond to future growth
Audio Quality
+ From 20 Hz to 20 kHz very low-latency digital audio, enhanced through the DanteTM interface
Mixed Audio Outputs Multiple RF Ranges
+ Balanced line or headphone output and the GUI can be used to send control signals to the main and mixed o

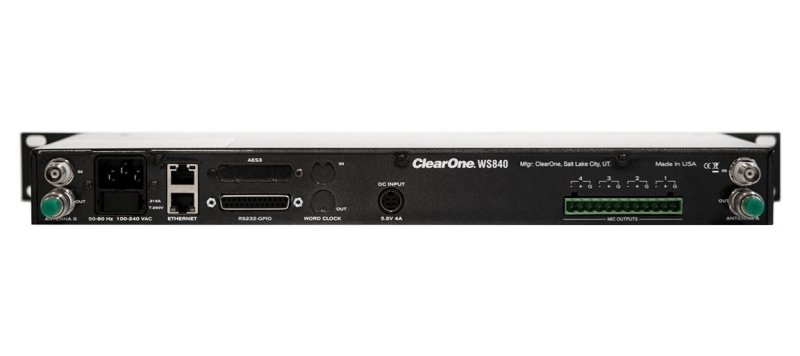

• Operation Temperature Range: 0 - 50 degrees Celsius ambient temperature Receiver (Base Station)

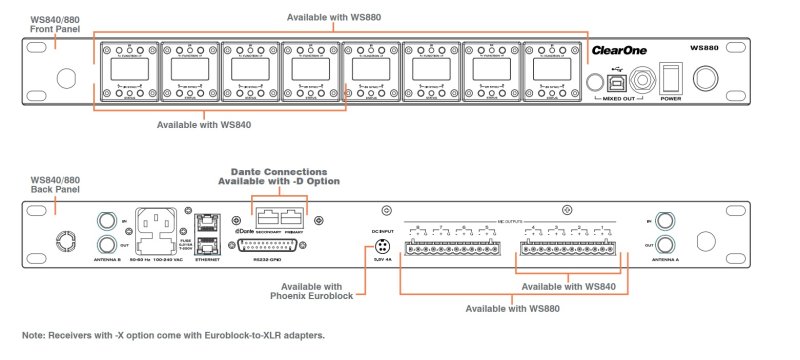

• Channels per receiver: 4-channels (WS840), 8 channels (WS880)
• Power Requirements: 100-240 VAC 50-60 Hz, 15 Watts
• Display: OLED
• External Antennas: Support up to six pairs per system
• Antenna Distribution: Attach up to 32 channels to one pair of antennas
• Analog Audio Outputs: Phoenix terminal blocks or with XLR adapters
• Output Impedance: 100 Ohm
• Headphone out (mixed): Balanced 1/4 inch TRS mixed line out forrecorders or powered speakers; or headphone out
• Interface: USB, RS232 & Ethernet (dual port 10/100 Mbps)
• Dante™ Audio channels: Eight (8) digital outputs @ 48 KHz.
• Dante Ports: Primary & secondary, RJ45 ports, 100/1000 Mbps, 328 ft.
• GPIO Interface: 22 programmable pins
• Gain Adjustment Range: -20dB to +31 dB
• Dimension: 1-U rack-mount, 19 x 1.75 x 6.5 inches
• Weight: 4.7 lbs (2.14 kg) for 8-channel receiver; 4.5 lbs (2.04 kg) for 4-channel receiver

Information

Frekvens:	470 til 599 MHz
Type:	Modtager
Model:	WS800
