Tascam line converter 8 kanaler balanceret / ubalanceret

LA-80MKII er en 8-kanals linjeniveaukonverter bygget til konvertering i studiekvalitet mellem ubalancerede (–10 dB) og balancerede (+4 dBu / –20 dBu) linjeniveauer, hvilket giver ideel integration af alle typer udstyr. LA-80MKII tilbyder otte ubalancerede RCA-indgange og otte balancerede XLR-udgange. Den har en switchmatrix, der gør det muligt at forbinde kanaler, og bruger enheden som en distributionsforstærker til at opdele signaler til flere optagere eller til multi-zone lydrouting-applikationer.

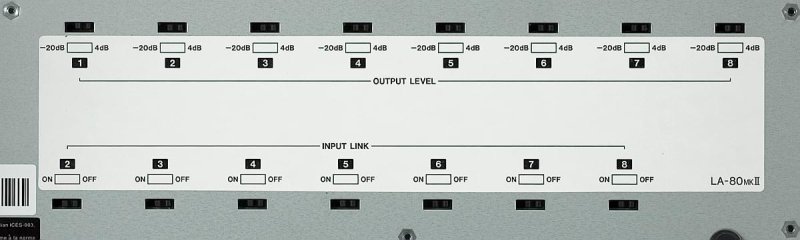

Switche på bundpanelet giver mulighed for at vælge et nominelt niveau på +4 dBu eller –20 dBu for hver kanal, og ±12 dB trim-pots på frontpanelet gør perfekt niveautilpasning nem. LED'er på frontpanelet indikerer signaltilstedeværelsen for hver kanal. Ground lift-switche er tilgængelige på hver kanal og globalt for at eliminere ground loops.

8 channels with unbalanced RCA inputs and balanced XLR outputs
XLR nominal level selectable between +4 dBu and –20 dBu
Trim pots (±12 dB) for each channel on front panel
Signal LED for each channel
Ground lift switches for each channel and master switch
Audio distribution amplifier (ADA) functionality:
Unbalanced input signals can be distributed to multiple balanced outputs
Configurable for various distribution setups, such as 1-input/8-output or dual 1-input/4-output systems
Internal power supply, no adapter needed
1U rack-mountable chassis

Inputs and outputs
Inputs
8 RCA jacks (unbalanced)
Input impedance
23 kΩ (when all INPUT LINK switches are OFF)
5.7 kΩ (when all INPUT LINK switches are ON)
Nominal input level –10 dBV, ±1 dB
Maximum input level +4.8 dBV
Indicator detection level –36 dBV or more
(OUTPUT LEVEL switch set to +4 dB or –20 dB)

Outputs
8 XLR-type connectors (balanced, Pin 1 = ground, Pin 2 = hot, Pin 3 = cold)
Output impedance 94 Ω
Nominal load impedance 10 kΩ
Minimum load impedance 600 Ω
Nominal output level +4 dBu, ±1 dB
(OUTPUT LEVEL switch set to +4 dB) –20 dBu, ±1 dB
(OUTPUT LEVEL switch set to –20 dB)
Maximum output level +23 dBu

Audio performance
TRIM range ±12 dB
S/N ratio (at nominal levels, INPUT/OUTPUT switches set to +4 dB)
90 dB(A) (20 kHz LPF)
87 dB(A) (20 Hz HPF and 20 kHz LPF)
Total harmonic distortion (1 kHz, at nominal levels) 0.005 % or less
Frequency response (at nominal levels) 20 Hz – 100 kHz, ±3 dB
Crosstalk (1 kHz, nominal levels, 600 Ω load) –90 dB

Other specifications
Power requirements 100–240 V AC, 50/60 Hz
Power consumption 6 W
Dimensions (W x H x D)
483 mm x 44 mm x 280 mm
Weight 3 kg

Størrelse

Vægt:	3,0 kg
Bredde:	483 mm
Dybde:	280 mm
Højde:	44 mm
