Tascam LA-40MKIII er designet med fokus på at sikre problemfri kompatibilitet mellem professionelt udstyr og semi-professionelt eller forbrugerudstyr. Enheden har fire RCA-indgange og -udgange (–10 dBV, ubalanceret) samt fire XLR-indgange og -udgange (+4 dBu/–20 dBu, balanceret), hvilket sikrer optimal niveau- og impedanstilpasning til en bred vifte af applikationer, herunder studieoptagelsessystemer, broadcast- og streamingmiljøer og AV-installationer. Den indbyggede kanallinkmatrix gør det også muligt for enheden at fungere som en lyddistributionsforstærker (ADA) til at forsyne flere optagere eller håndtere multizone-lydrouting.

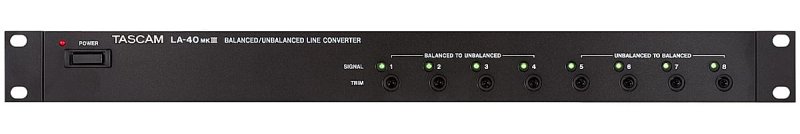

Kontakter på bundpanelet giver mulighed for at vælge et nominelt niveau på +4 dBu eller –20 dBu for hver kanal, og ±12 dB trim-pots på frontpanelet gør perfekt niveautilpasning nem. LED'er på frontpanelet indikerer signaltilstedeværelsen for hver kanal. LA-40MKIII har også jordløft-kontakter for hver kanal og en kombineret master-kontakt for at undgå jordsløjfer.
4 channels with unbalanced RCA inputs and balanced XLR outputs
4 channels with balanced XLR inputs and unbalanced RCA outputs
XLR nominal level selectable between +4 dBu and –20 dBu
Trim pots for each channel on front panel (±12 dB)
Signal LED for each channel
Ground lift switches for each channel and master switch
Audio distribution amplifier (ADA) functionality:
Unbalanced input signals can be distributed to multiple balanced outputs
Balanced input signals can be distributed to multiple unbalanced outputs
Configurable for various distribution setups, such as 1-input/4-output or dual 1-input/2-output systems
Internal power supply, no AC adapter needed
1U rack-mountable chassis
Inputs and outputs (unbalanced to balanced)
Inputs
4 RCA jacks (unbalanced)
Input impedance
23 kΩ (when all INPUT LINK switches are OFF)
5.7 kΩ (when all INPUT LINK switches are ON)
Nominal input level –10 dBV, ±1 dB
Maximum input level +4.8 dBV
Indicator detection level –36 dBV or more (OUTPUT LEVEL switch set to +4 dB or –20 dB)
Outputs
4 XLR-type connectors (balanced, Pin 1 = ground, Pin 2 = hot, Pin 3 = cold)
Output impedance 94 Ω
Nominal load impedance 10 kΩ
Minimum load impedance 600 Ω
Nominal output level
+4 dBu, ±1 dB (OUTPUT LEVEL switch set to +4 dB)
–20 dBu, ±1 dB (OUTPUT LEVEL switch set to –20 dB)
Maximum output level +23 dBu
Inputs and Outputs (balanced to unbalanced)
Inputs
4 XLR-type connectors (balanced, Pin 1 = ground, Pin 2 = hot, Pin 3 = cold)
Input impedance
54 kΩ (when all INPUT LINK switches are OFF)
13.5 kΩ (when all INPUT LINK switches are ON)
Nominal input level
+4 dBu, ±1 dB (INPUT LEVEL switch set to +4 dB)
–20 dBu, ±1 dB (INPUT LEVEL switch set to –20 dB)
Maximum input level
+30 dBu (INPUT LEVEL switch set to +4 dB)
+8 dBu (INPUT LEVEL switch set to –20 dB)
Indicator detection level
–22 dBV or more (INPUT LEVEL switch set to +4 dB)
–46 dBV or more (INPUT LEVEL switch set to –20 dB)
Outputs
4 RCA jacks (unbalanced)
Output impedance 200 Ω
Nominal load impedance 10 kΩ
Minimum load impedance 1 kΩ
Nominal output level –10 dBV, ±1 dB
Maximum output level +18 dBV
Audio performance
TRIM range ±12 dB
S/N ratio (at nominal levels)
90 dB(A) (20 kHz LPF)
87 dB(A) (20 Hz HPF and 20 kHz LPF)
Total harmonic distortion
(1 kHz, at nominal levels) 0.005 % or less
Frequency response (at nominal levels) 20 Hz – 100 kHz, ±3 dB
Crosstalk (1 kHz, nominal levels, 600 Ω load) –90 dB
Other specifications
Power requirements 100–240 V AC, 50/60 Hz
Power consumption 6 W
Dimensions (W x H x D)
483 mm x 44 mm x 280 mm
Weight
3 kg
