ART Grafisk Equalizer 2 x 15 bånd

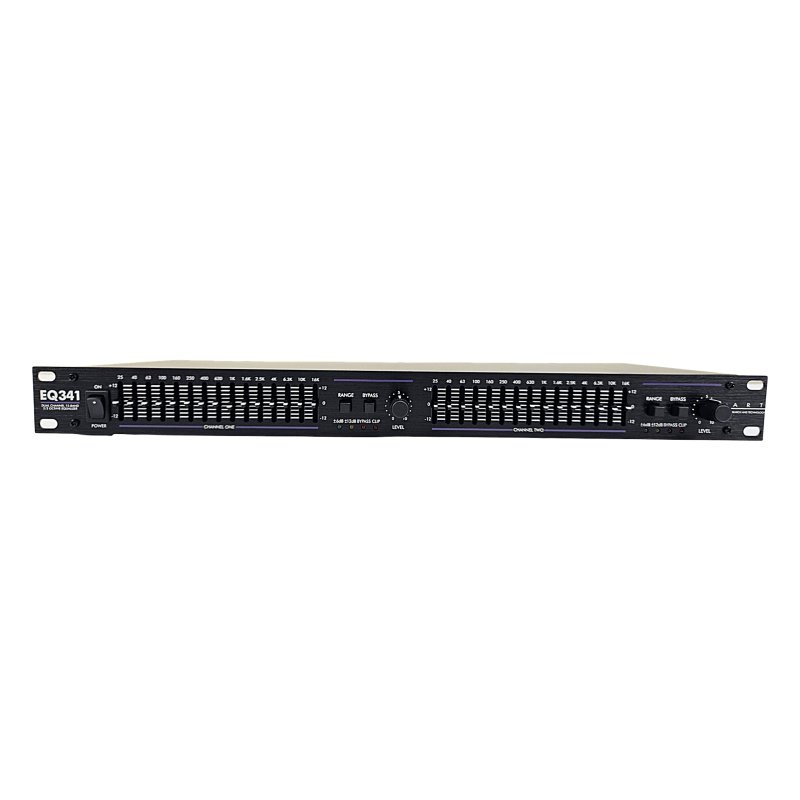

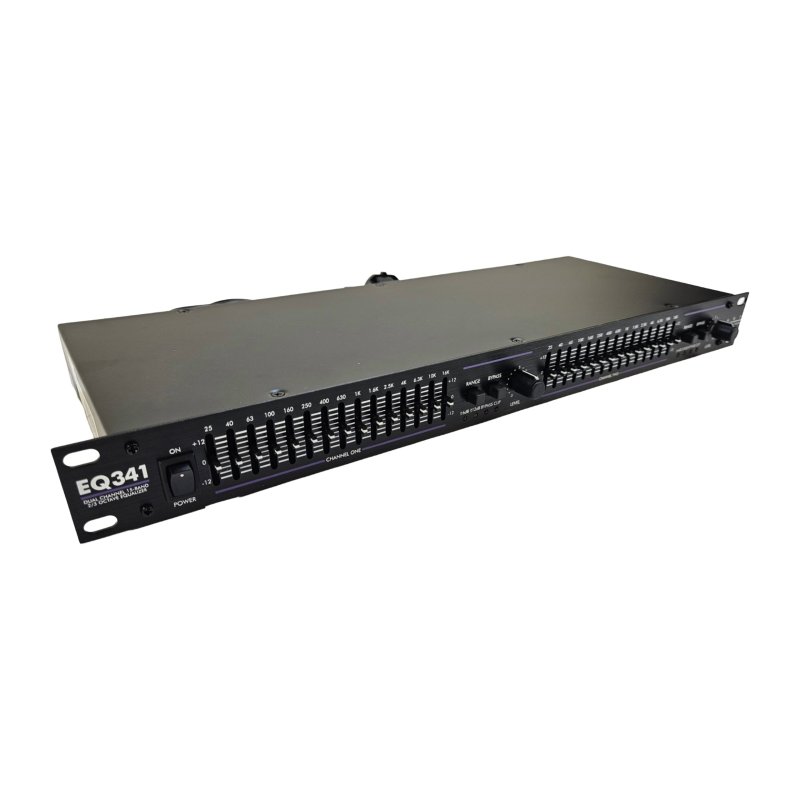

ART EQ341 Grafisk Equalizer 2 x 15 bånd

ART's 341 Single Channel 15 band 2/3 Octave Graphic Equalizer tilbyder: konstant Q-kredsløb med 3% center frekvens præcision, 20 mm center sliders, valgbar boost/cut-range på 6 dB eller 12 dB, aktiv balanceret og ubalanceret input og output-stik, variabel input level-kontrol, clip level-indikatorer, ground-lift switch, intern strømforsyning og valgbar line-spænding switch. En range-kontrol switch lader brugeren maksimere boost eller cut hos hver udligningsbånd til enten 6 dB eller 12 dB. Hver kanal har sin egen bypass-switch med LED-indikator. Den robuste stålkonstruktion chassis benytter 1U rack-plads og er beregnet til installation i standard 19" udstyrs-racks.

Dual Channel 15-Band Graphic Equalizer
Constant-Q Filtering

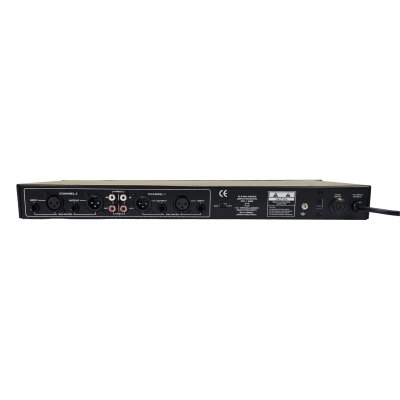

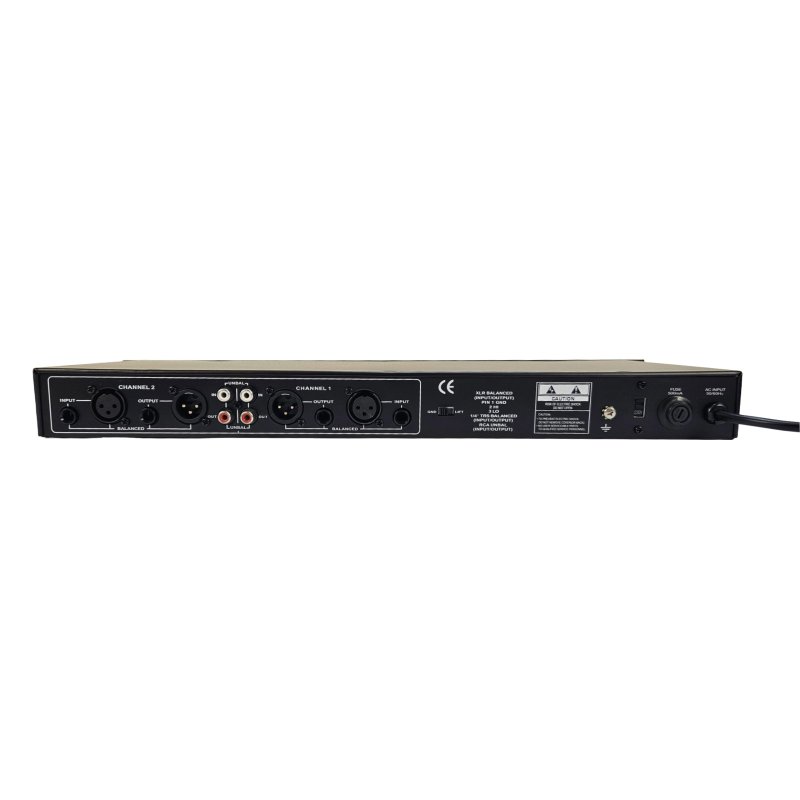

Balanced XLR, Active Balanced 1/4", and Unbalanced RCA Input and Output Connectors
+/- 6dB or +/-12dB Level Adjustments
20mm Center Detented Frequency Band Sliders
Independent Level and Bypass Controls Per Channel
Designed for Years of continuous, reliable performance
Rugged All Steel Construction
One Year Warranty

Channel Separation: > 50dB
Controls: Power On/Off Switch; L/R Filter Range Switch; L/R Bypass Switch; L/R Level Control; Ground Lift Switch
Filter Type: Constant Q - 3% center accuracy
Frequency Bands: 2x15, 2/3 octave, ISO spacing
Frequency Response: 20Hz to 20kHz, +0.5dB
Indicators: 6dB/12dB Range LEDs; Bypass and Clip LEDs
Input Impedance: 20k Ohm (bal), 15k Ohm (unbal)
Input/Output Connections: Active balanced XLR and 1/4" TRS {XLR pin 2/ 1/4" tip = Hot (+)} Unbalanced RCA
Maximum Input Level: +22dBm
Maximum Output Level: +18dBm (bal), +22dBm (unbal)
Power (Switchable): 95-130VAC, 50/60Hz
Power Consumption: 12 W
Range: +/-6dB or +/-12dB selectable
Signal to Noise Ratio: -94dB
Slider Travel: 20mm w/ positive center detent
Total Harmonic Distortion: 0.0001
Dimensions(H x W x D): 4.5 x 48.3 x 21.6 cm
Weight: 4.5lbs (2.5kg)

Information

Type:	Equalizer
