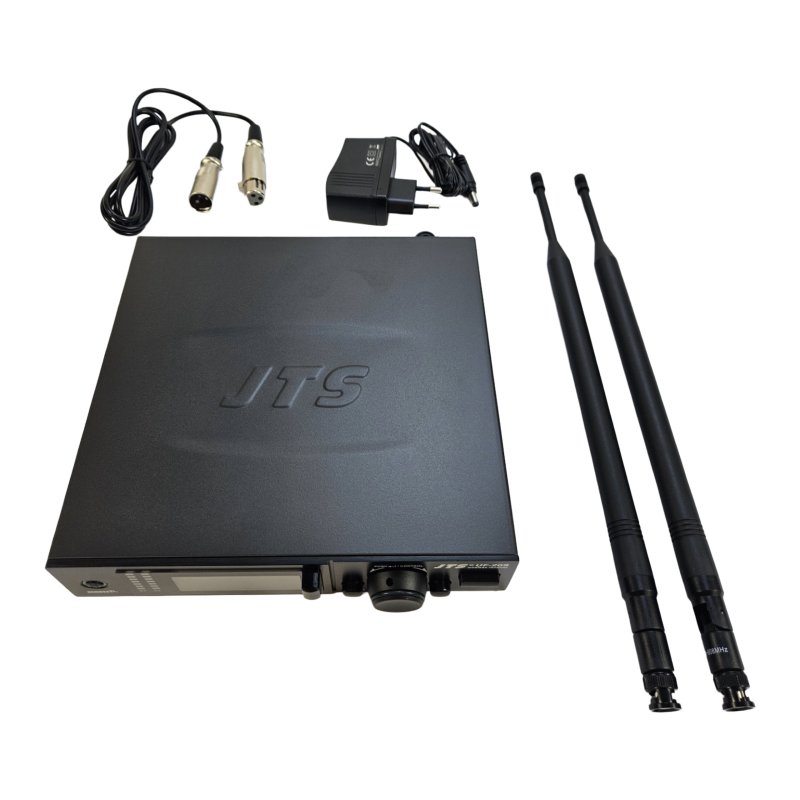

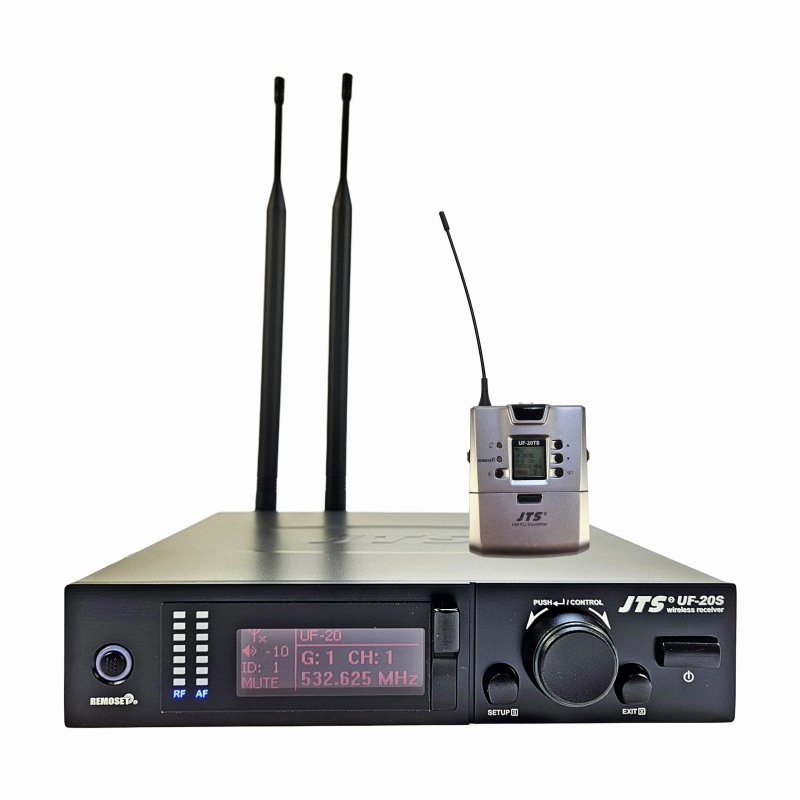

UF-20S mikrofonsæt med lommesender.
Det professionelle sæt fra JTS's topserie, sættet består af:
UF-20S 1-kanals modtager

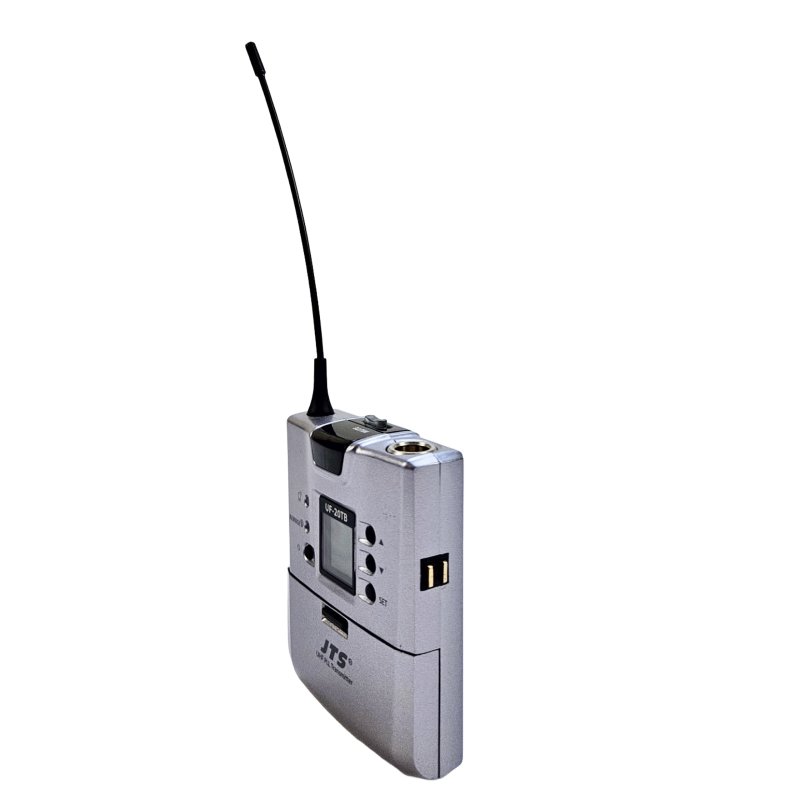

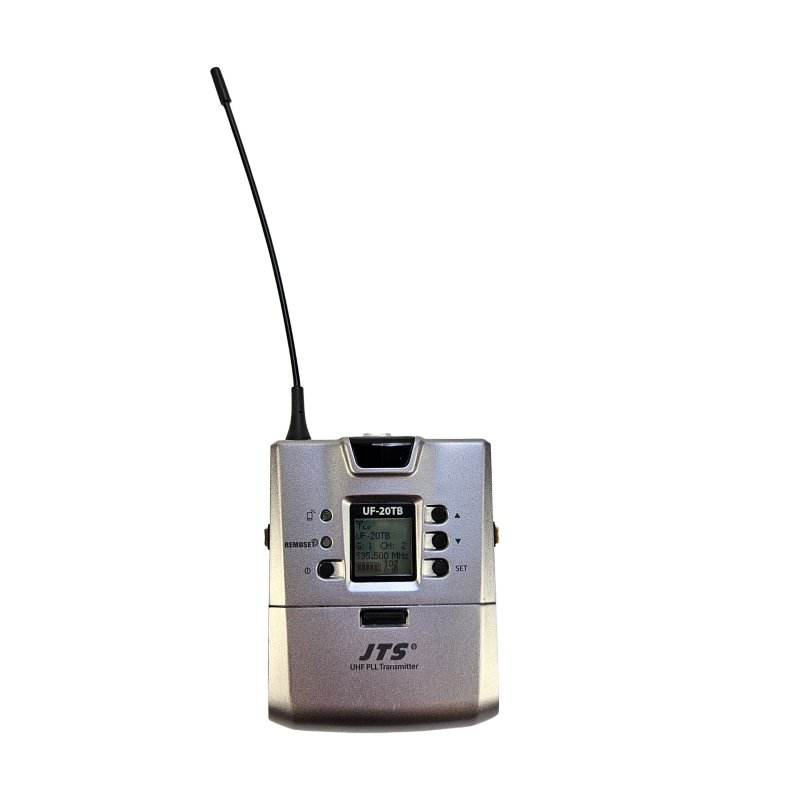

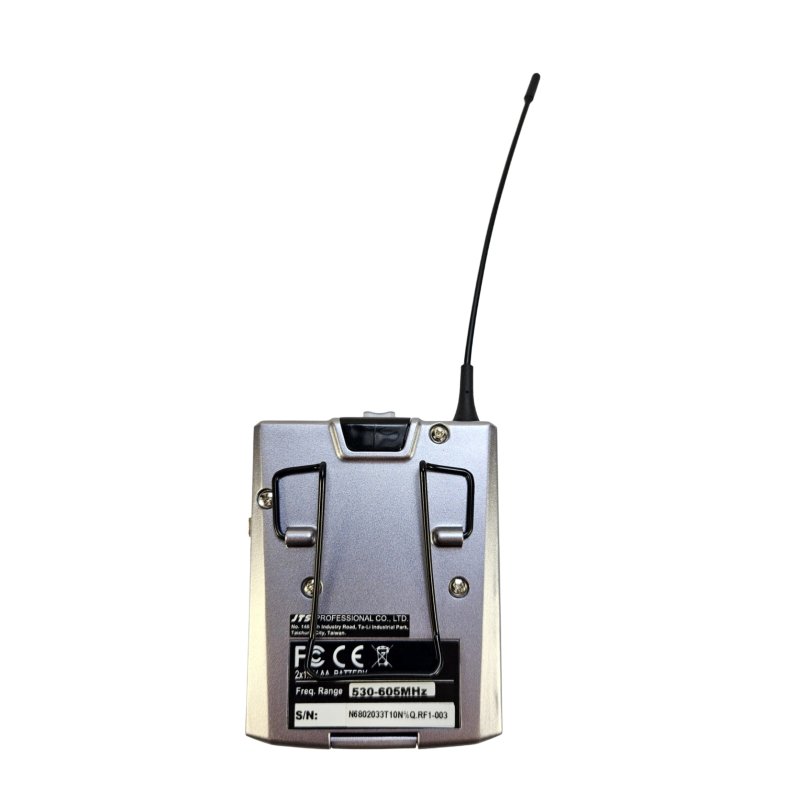

UF-20TB lommesender i metal
UF-20 System
* UHF True diversity-teknologi giver 200-480 meters driftsafstand
* Maksimalt 2400 til 3000 valgbare frekvenser på 60 til 75 MHz
* Forudindstil 15 grupper hver af op til 63 kompatible kanaler
* Brugerprogrammerbare 6 grupper på hver 64 kanaler
* Scanningsfunktion for ledig plads
* JTS Patenteret hindringsfri RF funktion synkroniserer en sender ved at trykke på en knap
* JTS LCX-kredsløbsdesignteknologi minimerer kompande støj
NYESTE FUNKTION:
* Den sender nu ikke kun frekvensdata, men også senderens RF-effekt, følsomhed, low cut, nøglelås og brugernavn.
* RF "INGEN SIGNAL" alarmfunktion.
* AF "MUTE" advarselsfunktion.
* Senderens "LOW BATTERY" alarmfunktion.
* Indbygget equalizer
* Strøm / Antenne kaskadeudgang medfølger.
Frelvemsbånd som er lovlige og brugbare i Danmark
5A = 530 til 605 MHz
6A = 606 til 681 MHz
6B = 624 til 694 MHz
UF-20TB
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range UHF 470~960 MHz
Bandwidth 60~75MHz Wideband
RF Outputs Low / High
Stability Frequency Deviation ± 48KHz (Peak)
Chassis Aluminium alloy
LCD Display Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
Controls Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Output Connector 4P Mini XLR
Spurious Emissions Audio Frequency Response 50Hz ~ 18k Hz
Battery AA NiMH x2
Dimensions 62mm (W) x80.3mm (H) x22.6mm (D)
Weight 93g
Notes Actual product specifications may vary depending on model and region.
UF-20S
Frequency Preparation
PLL Synthesized Control
Frequency Setting JTS patented obstacles-free RF REMOSET
Carrier Frequency Range UHF 470~960 MHz
Channel Dual
Bandwidth 60~75MHz Wideband
S / N Ratio > 108dB (A)
T.H.D Chassis 1U standard metal chassis
Preset Channels / Group
* From group 1 ~ 15 up to 63 interference-free compatible channels.
* 690 preset channels / group and 3000 selectable frequencies across 60 to 75 Hz Bandwidth.
* User programmable from U1 ~ U6 each of 64 channels reserved.
Display LCD
Display Contents Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch
Sensitivity 6dBMV, at S / N> 80dB
Receiving Mode True diversity
Audio Output Level Maximum 6dBu
Receiving Mode True diversity
AF Output Impedance 600 Ohm
Frequency Response 50Hz ~ 18kHz, with high-pass filter
Squelch Pilot Tone & Noise Mute
Power Supply 100 ~ 240V or 12V DC

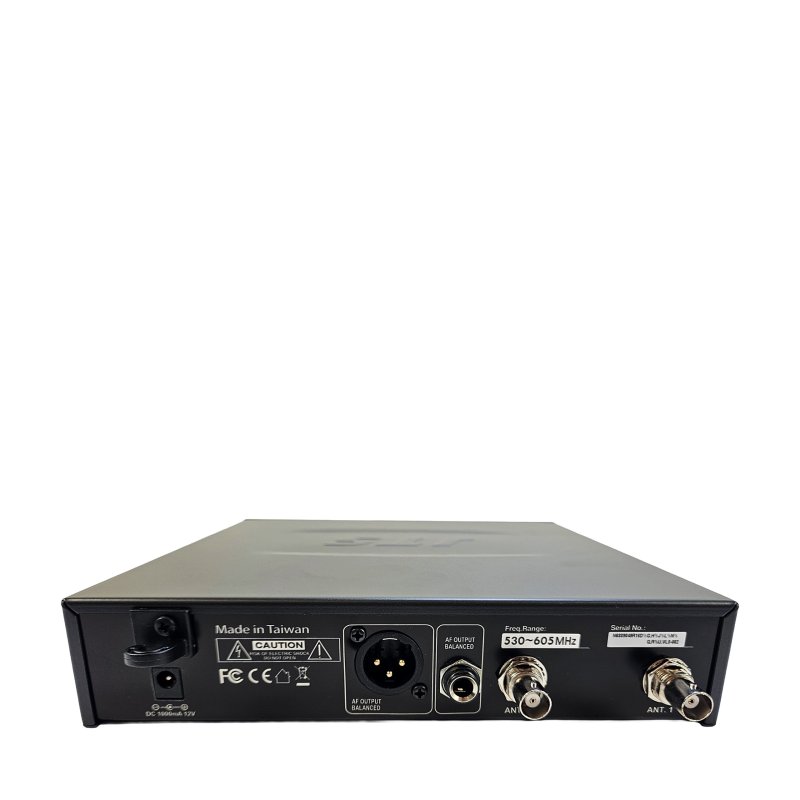

Output Connector 2 XLR Balanced Socket
2 Ø6.3mm Unbalanced phone jack
Dimension (m / m) 480mm (W) 45Mmm (H) 260mm (D)
Notes Actual product specifications may vary depending on model and region.
JSS-20
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range UHF 470~960 MHz
Bandwidth 60~75MHz Wideband
RF Outputs Low / High
Stability Frequency Deviation ±48KHz (Peak)
LCD Display Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust
Controls Power ON / OFF, AF Level, Frequency (Up / Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Spurious Emissions Audio Frequency Response 50Hz ~ 18k Hz
Capsule Module Interchangeable
Battery AA NiMH x2
Dimensions 50mm (W) x253mm (H) x35.5mm (D)
Weight 350g
Notes Actual product specifications may vary depending on model and region.
UF-20TB
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range UHF 470~960 MHz
Bandwidth 60~75MHz Wideband
RF Outputs Low / High
Stability Frequency Deviation ± 48KHz (Peak)
Chassis Aluminium alloy
LCD Display Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
Controls Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust

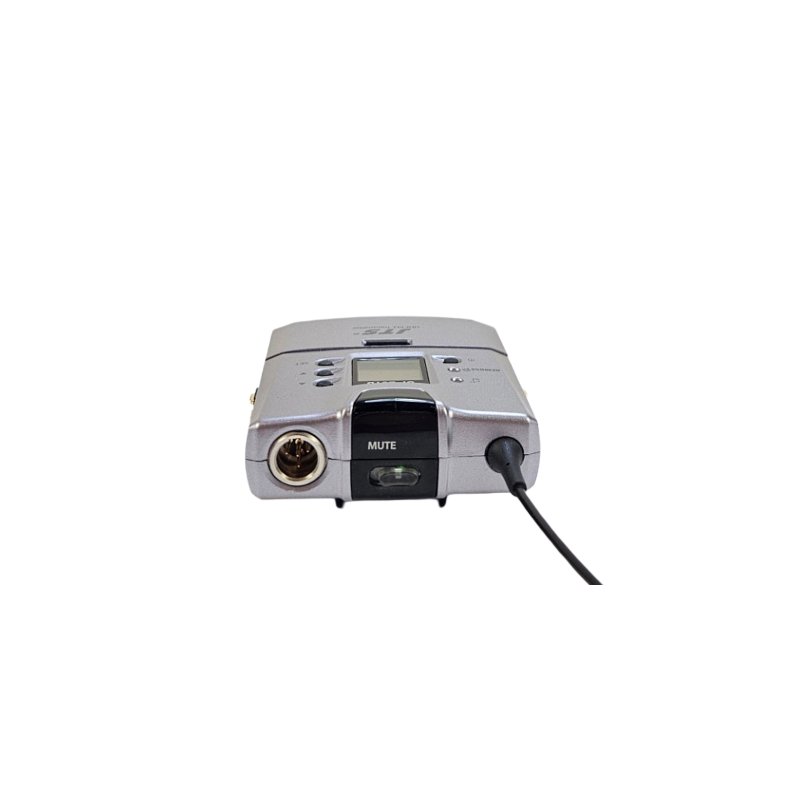

Output Connector 4P Mini XLR
Spurious Emissions Audio Frequency Response 50Hz ~ 18k Hz
Battery AA NiMH x2
Dimensions 62mm (W) x80.3mm (H) x22.6mm (D)
Weight 93g
Notes Actual product specifications may vary depending on model and region.
