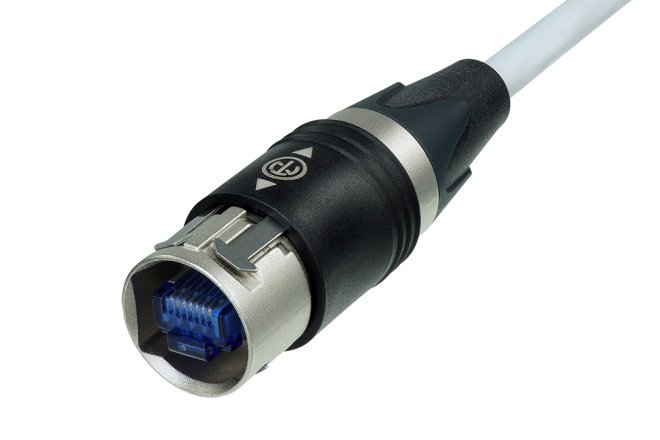

Neutrik Ethercon kabel, CAT6, 1m

NKE6S-1 Neutrik Ethercon kabel, CAT6, 1m

Contact resistance: Dielectric strength: 1 kVdc
Frequency range: 1 - 250 MHz
Insulation resistance: >= 0.5 GOhm
Rated current per contact: 1,5 A
Rated voltage: Insertion force: <= 40 N
Withdrawal force: <= 20 N
Lifetime: > 1000 mating cycles
Wiresize: 8 x AWG 27/7 mm²
Locking device: Push-Pull
Boot: Polyurethan
Contact plating: 0.7 µm Au over 1.2 µm Ni plating
Contacts: Bronze (CuSn8)
Insert: Polyamide (PA 6.6 30 % GR)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Strain relief: Polyacetal (POM)
Flammability: UL 94 HB
Standard compliance: CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN 50173
Protection class: IP 65
Temperature range: -10 °C to +60 °C
Ordering Information
NKE6S-* Both cable ends with cable plug carrier, e.g. NKE6S-3
NKE6S-*-WOC Only one cable end with cable plug carrier, e.g. NKE6S-3-WOC *Kan leveres i følgende længder; 1 m, 2 m, 3 m, 5 m, 10 m, 30 m.

Information

Model:	Data
Variant:	Cat 6
Længde:	1 meter

Størrelse

Vægt:	0,135
