Fostex AR-101L Audio interface & PSU til iPhone 5

Fostex AR101L stereo iPhone video mikrofon

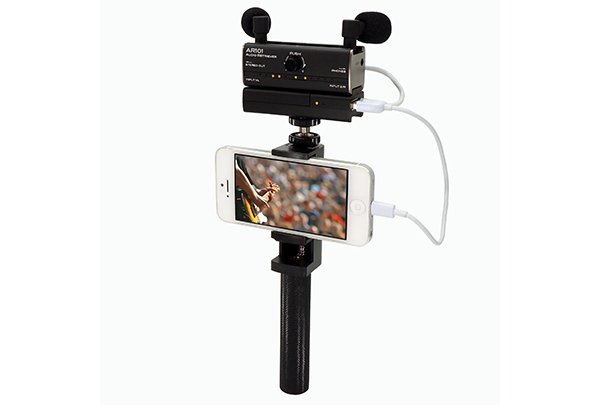

Efter den successfulde introduktion af AR101'eren til iPhone video-skabere med sin fleksible kompatibilitet til iPhone 4/4S og iPhone 5/5S, er efterspørgslen efter en praktisk måde at oplade AR101'eren imens et DSLR-kamera er i brug. AR101L-modellen kommer med en dedikeret batteripakke som kan fastgøres til AR101'erens hovedkabinet, hvilket også gør det muligt at forbinde til iPhone 5/5S via et Lightning-USB-kabel som følger med i iPhone-pakken. Kabinettet har en skinne som kan holde forskelligt kamreudstyr. Kommer med en holder som kan kan bruges i enten lodret eller vandret position. Den har skruehuller i de lodrette og vandrette sider til det inkluderede håndgrebet eller off-the-shelf tri-pod etc.

New features with the AR101L

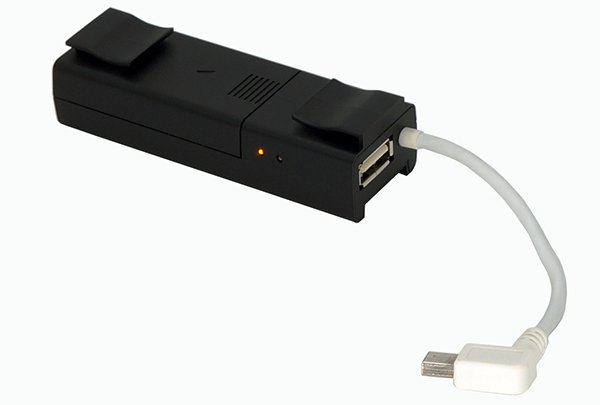

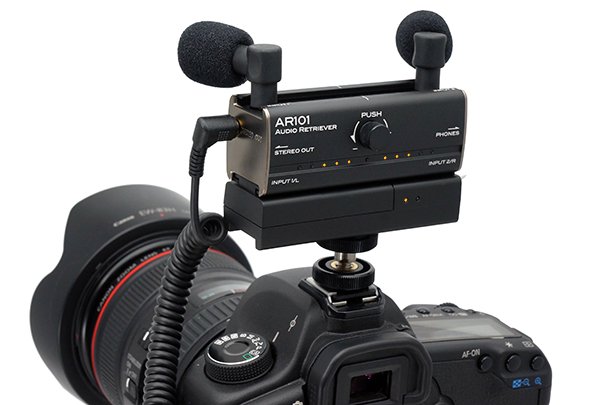

Comes with the dedicated battery case which can be attached to the AR101 and feeds power to the main unit when being used as an audio interface for a DSLR camera.

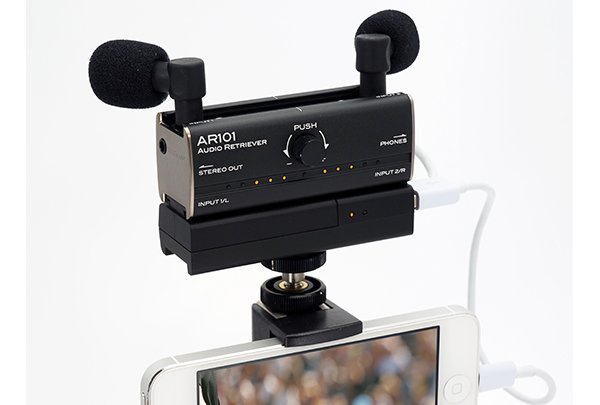

The battery case also doubles as a converter from Lightning connector to USB mini B connector making possible the use of iPhone 5/5S without Lightning-30Pin adapter.
The inner earphones are not included in the AR101L package
The battery case feeds power only to the AR101, not to the connected iPhone.
The battery case cannot be used with iPhone 4/4S. Use the supplied 30pin-USB cable.

Original features from the AR101:
Improves the audio quality of iPhone and DSLR camera.
Both Input 1 and 2 accepts stereo Line / Mic (plug-in power), i.e. maximum 4 channels can be fed.

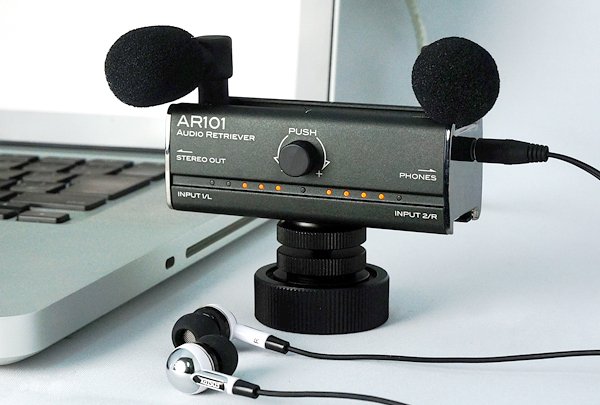

Also works as an audio interface for PC by connecting with an off-the-shelf mini USB-USB A type cable.
2 x Plug-in power condenser microphones come with the package. Off-the-shelf plug-in power type microphones can be used too.
The rotary encoder and the LED level meter for easy setting of various parameters including Input level of each channel, Pan, Headphone Out, etc.
A dedicated AR101 APP can be downloaded from iTune Store to control Pan, Low Cut, Limitter, Output Level.
Headphone Monitor Out to monitor the input and playback signal.
Analog Out (Line-Mic selectable) to output the input or playback signal, or mixed.
No battery required, being powered from the connected iOS device via USB.
When feeding power via micro USB, the AR101 also feeds power to the connected iOS device.

Tekniske specifikationer
Analog Input Connector: 3.5mm dia stereo mini x 2
Input signal Line / Mic Gain: -12 to -59.5dB
Plug-in Power approx. 2.5V (always)
Level Meter LED: 11 dots
Phones Connector: 3.5mm dia stereo mini
Load Impedance: 16 ohm or more
Maximum Output Level 15mW (32 ohm load, THD less than 0.1%)
General Frequency Response: 20Hz – 20kHz +/-3dB (Line In – St Out / 15mW / 32 ohm load)
Noise Level: less than -93dBV (Mic – St Out / Input Gain Max)
Dimensions: 83mm (W) x 31mm (H) x 33mm (D) (w/o mics, holder & grip)
Weight: approx. 60g (w/o mics, holder & grip)
Power Consumption: 200mW
Accessories
Unidirectional plug-in power microphone x 2, exclusive 30pin-USB mini B cable, carrying bag,
hand grip, smartphone holder, shoe holder, battery case (new), AAA battery x 2 (new)
*AR101L does not include the inner earphones supplied with the AR101 package.

Størrelse

Vægt:	0,06
Bredde:	8,3
Dybde:	3,3
Højde:	3,1
