Professionel studio Linietransformator 1:1

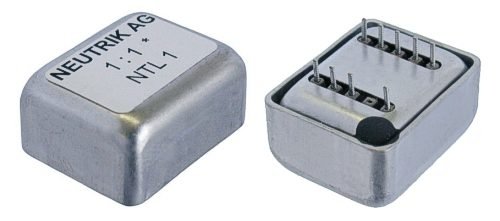

NTL 1 Linietransformator 1:1

Professional studio transformer 1:1 for PCB mount, fully shielded.
Applications: line input


General Description
NTL1 is a line transformer intended to balance amplifier outputs for line driving up to +24 dBm.
NTM1 and NTM4 are input transformers intended to match mic-level lines to active micinput amplifiers. Existing center tap for phantom powering.
All types are designed for direct PCB mounting and are featuring electrostatic shielding
between windings and heavy Mu-metal shielding/housing.

Electrical Data:

Turns ratio (prim:sec) 1 : 1 ± 5%

Winding D.C. resistance
- primary: 1100 Ohm ± 5%
- secondary: 1350 Ohm ± 5%

Primary inductance at 30 Hz: > 150 H
Typical source impedance: 600 Ohm
Max. input voltage for 1% THD at 30 Hz
- with load 600 Ohm: 6 V rms
- with load 2 kOhm: 5 V rms

Frequency response 20 Hz - 20 kHz ref. 1kHz: +/- 1 dB

Electric strength test voltage*: 500 V ac
*: between windings (W1 - W2) and between windings and shielding/housing (W1,W2 - SH)

Størrelse

Vægt:	0,006
