CAE Videokabel UHDTV 12G SDI til installation, 100 meter
CAE Videokabel UHDTV 12G SDI til installation, 100 meter

CAE Videokabel UHDTV 12G SDI til installation, 100 meter

4.600,00 DKK (inkl. moms)
Model/Varenr.: CAE-UHD16720LSZH-1
Leverandør varenr.: UHD16720LSZH
Lagerstatus: På fjernlager levering 8 - 12 dage
Favoritliste
Inkl. moms
                0
                                                                                                                                                                                                                                                                                                                                                                                                                        1
                                                                        2
                                                                        3
                                                                        4

                5

Beskrivelse

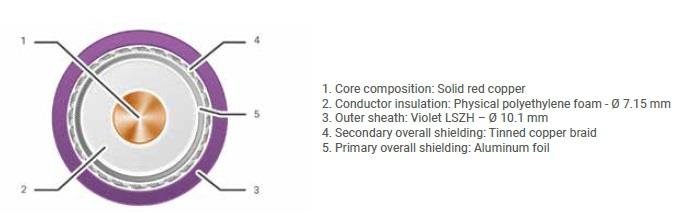

Video kabel til installation UHD16720LSZH

Core composition: Solid red copper
Conductor insulation: Physical polyethylene foam - Ø 7.15 mm
Outer sheath: Violet LSZH Ø 10.1 mm
Secondary overall shielding: Tinned copper braid
Primary overall shielding: Aluminum foil

Benefits
High performance
Excellent immunity against electro-magnetic interference
Meets the requirements of fire safety standards for public buildings

Applications
Impedance 75 .
Cable for HDTV digital video link.
Video link HDTV 3 Gb/s to standard SMPTE 424M.
Link UHD 4K to standard SMPTE 2081.1.

Link lengths
Standard SMPTE 292M - 1.50 Gb/s HDTV: Max. length validated at 320m*
Standard SMPTE 424M - 3.00 Gb/s HDTV: Max. length validated at 251m*
Standard SMPTE 2081.1 - 6.00 Gb/s UHDTV 4K: Theoretical max. length 112 m
Standard SMPTE 2082.1 - 12 Gb/s UHTDV: Max. length validated at 75 m
*Tests conducted and validated by Tektronic, using Neutrik connectors NBLC75BVZ17

Standards
Flame retardant: IEC 60332-1
Measurement of halogenated acid gas ratio and degree of acidity of gases: IEC 60754-1 & -2.
Measurement of fumes density: IEC 61034-1 & -2.

Kablet kan fås på ruller med større længder, kontakt os venligst

Specifikationer

Information

Type: Installationskabel

Størrelse

Vægt: 11,4 kg
Diameter: 10,1 mm
