CAT6A SFTP fleksibel PVC kabel til live- og touring 26 AWG, Ø = 6,7 mm

CAT6A fleksibel PVC kabel touring og livebrug

Robust og fleksibel kabel til live brug.
Kablet er ren kobber med bløde ledere (flere tråde)
Ydre diameter er 6,7 mm

26AWG SFTP Cat6a and also the outer jacket

Model: SFTP CAT6a
Type: LAN Cable
Specification: [((7/0.16MM BC)X1P+Alfoil)X4+144/0.10MM TC]*1C

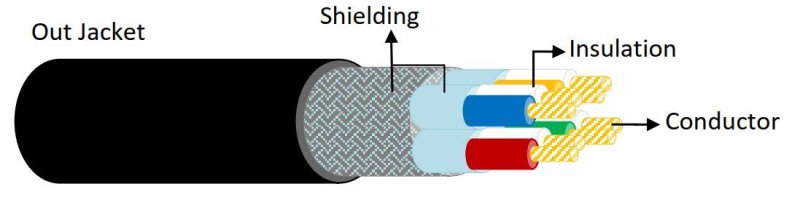

Conductor
Material: Bare Copper (OFC)
Construction: 7 X 0.16 MM
Cross Section: 0.14MM2 (26AWG) X 8 Insulation
Material: Foam-Skin Polyethylene (FPE-SKIN)
Thickness: 0.27 MM
Diameter: 1.05 MM X 4P
Color: 1P)White/Orange; 2P)White/Green;3P)White/Blue; 4P)White/Brown

Shielding
Material: Aluminum Foil + Tinned Copper (T-OFC)
Construction: Alfoil X 4 + 144X0.10 MM Braiding
Coverage: 100% Alfoil + 80% T-OFC Braiding

Out Jacket
Material: Soft Polyvinylchloride (S-PVC)
Thickness: 1.0 MM
Diameter: 6.70 MM
Operation Temp.: -200C ~ 750C
Electric Characteristic
Nom. Imp. : 100Ω
Conductor Resistance: 140 Ω/KM Approvel By:
Max. Mutual Cap.: 56 PF/M
Nom. Vel. of Prop.: 69%

Information

Type:	Fleksibel kabel
Model:	Fleksibel kabel
Variant:	Cat 6
Farve:	Sort
Længde:	1 meter

Størrelse

Diameter:	7,2
