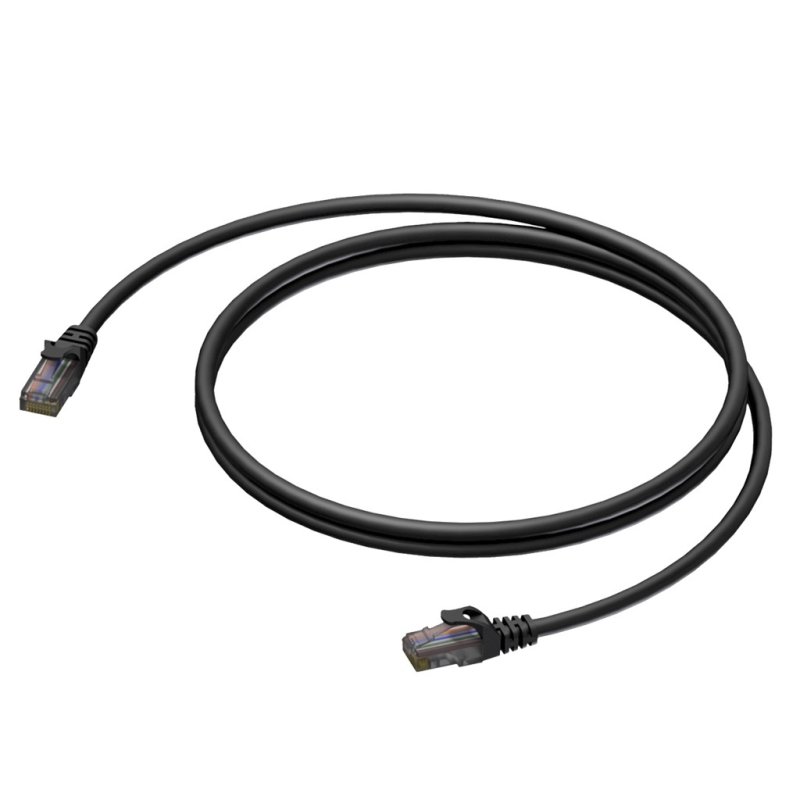

ProCab netværkskabel CAT5E U/UTP

ProCab BSD550U CAT5E U/UTP kabel

fåes i længderne: 1,1.5,2,3 meter

Basic serie Internetkabel CAT5E U/UTP med stabile RJ45 stik. Ledere 4 par snoede 26 AWG kabler som garanterer en sikker og optimal forbindelse og signal distribution.
Yderkappe er low-smoke halogenfri fleksibel PVS kappe som gør anvendelige til både installation i offentlige bygninger eller mobilt brug..

Supports 10Base-T, 100Base-TX and 1000Base-T gigabit networks.
Supports Dante, Cobranet, Ethersound, HdbaseT and other AV network protocols

*Flexible PVC jacket
*26 AWG stranded conductors
*5.3 mm (Ø) outer diameter
*Oxygen free copper
*Wired according to ANSI/TIA/EIA 568B (straight)
*LSHF jacket


Type of cable U/UTP CAT5E Networking cable
Inner conductor Material BC 7 x 0.16 mm (Ø) (OFC)
Section 0.14 mm²
American Wire Gauge 26 AWG
Insulation Material HDPE 0.92 mm (Ø)
Colours Green / White & Green ; Blue / White & Blue ; Orange / White & Orange ; Brown / White & Brown
Conductor twisting Lay length <= 30 mm
Outer jacket Colours Black
Material LSHF 5.3 mm (Ø)
Connection type RJ45 male to RJ45 male



Electrical Characteristics
Dielectric strength 1.5 (KV / 1 min. DC)
Max. Delay / Skew 45 (ns / 100 m)
Rated voltage 72 V
Nom. Velocity of propagation 65 %
Characteristic impedance 100 Ohm ± 10 Ohm
Max. conductor DC resistance 130 (Ohm / Km)
DC resistance unbalanced 5 %
Nom. mutual capacitance <= 5.6 (nF / 100 m)
Pair to ground capacitance unbalance <= 330 (nF / 100 m)

Information

Model:	Data
Variant:	Cat 5
