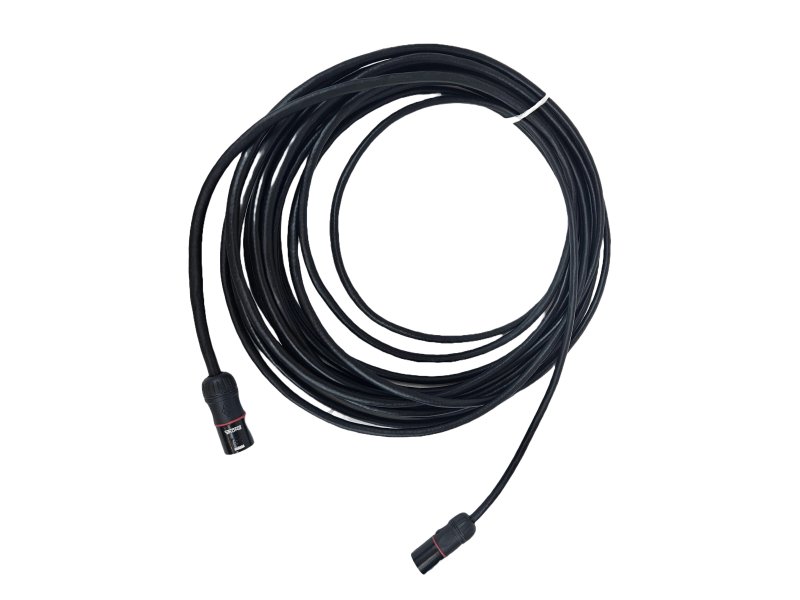

Nexum CAT6a fleksibel netærkskabel til livebrug med Enova stik

Nexum CAT6a fleksibel netærkskabel til touring og livebrug

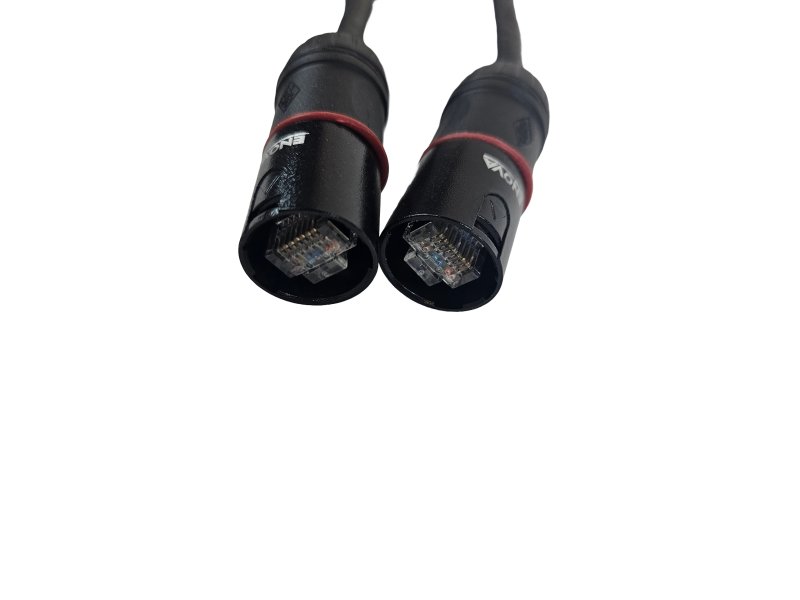

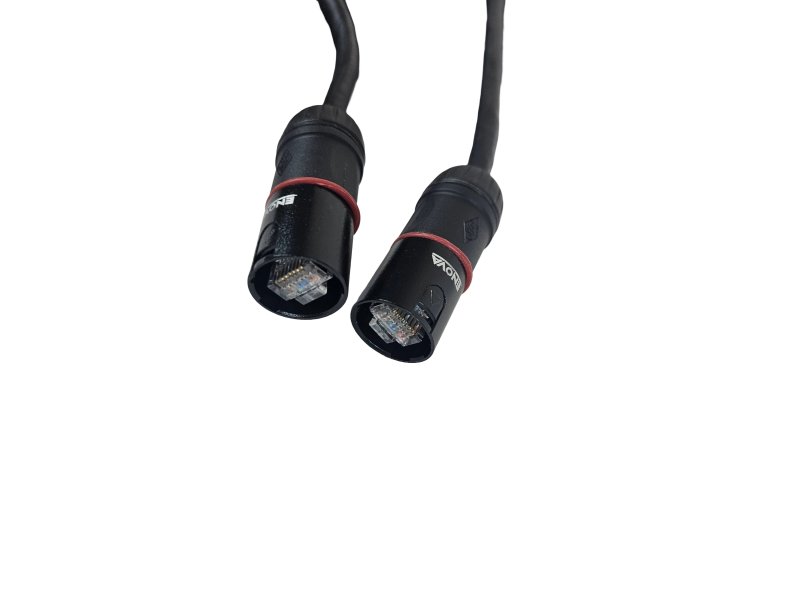

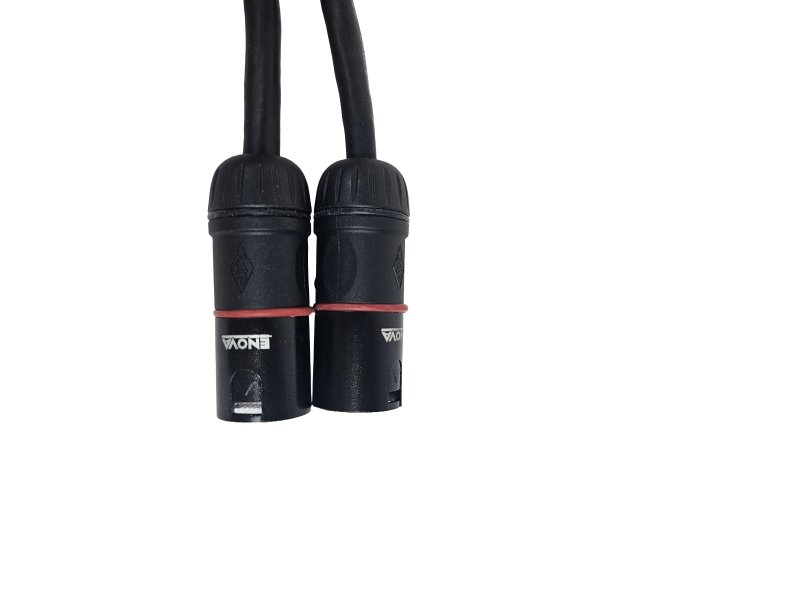

Robust og fleksibel kabel til live brug monteret med Enova netærksstik og hus, samt Klar krymp.
Ydre diameter er 6,7 mm

Understøtter 10Base-T, 100Base-TX, 1000Base-T og 10GBase-T gigabit.

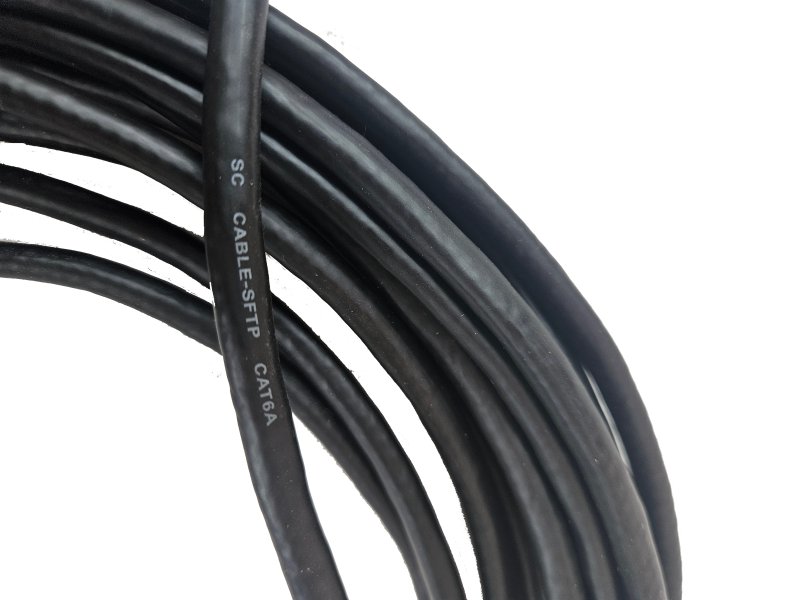

26AWG SFTP Cat6a and also the outer jacket

Model: SFTP CAT6a
Type: LAN Cable
Specification: [((7/0.16MM BC)X1P+Alfoil)X4+144/0.10MM TC]*1C

Conductor
Material: Bare Copper (OFC)
Construction: 7 X 0.16 MM
Cross Section: 0.14MM2 (26AWG) X 8 Insulation
Material: Foam-Skin Polyethylene (FPE-SKIN)
Thickness: 0.27 MM
Diameter: 1.05 MM X 4P
Color: 1P)White/Orange; 2P)White/Green;3P)White/Blue; 4P)White/Brown

Shielding
Material: Aluminum Foil + Tinned Copper (T-OFC)
Construction: Alfoil X 4 + 144X0.10 MM Braiding
Coverage: 100% Alfoil + 80% T-OFC Braiding

Out Jacket
Material: Soft Polyvinylchloride (S-PVC)
Thickness: 1.0 MM
Diameter: 6.70 MM
Operation Temp.: -200C ~ 750C
Electric Characteristic
Nom. Imp. : 100
Conductor Resistance: 140 /KM Approvel By:
Max. Mutual Cap.: 56 PF/M
Nom. Vel. of Prop.: 69%

Information

Type:	Fleksibel kabel
Variant:	Cat 6
