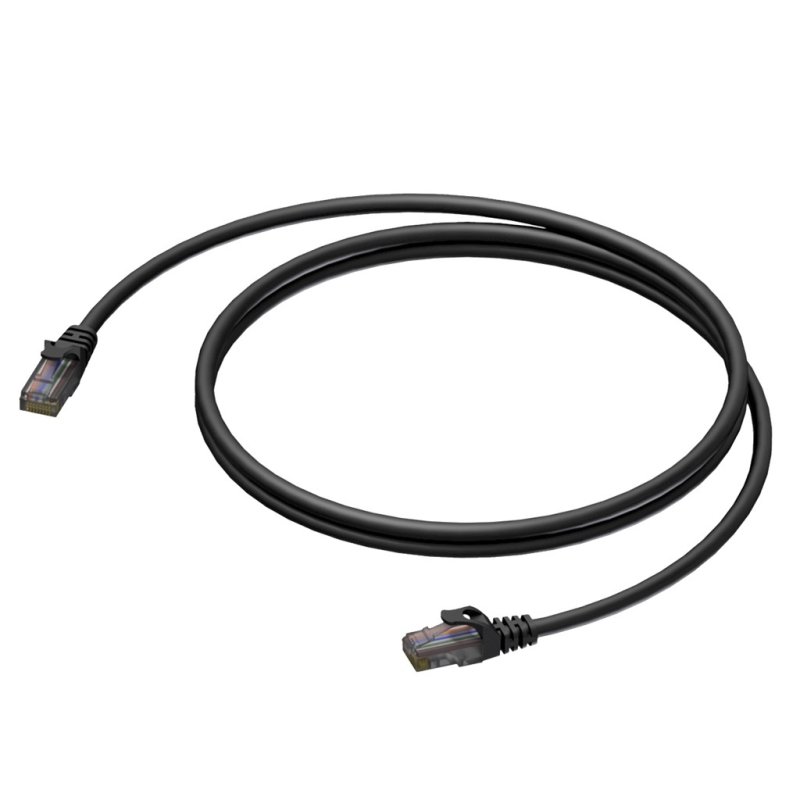

ProCab netværkskabel CAT5E U/UTP 2 meter

ProCab BSD550U CAT5E U/UTP kabel

Basic serie Internetkabel CAT5E U/UTP med stabile RJ45 stik. Ledere 4 par snoede 26 AWG kabler som garanterer en sikker og optimal forbindelse og signal distribution.
Yderkappe er low-smoke halogenfri fleksibel PVS kappe som gør anvendelige til både installation i offentlige bygninger eller mobilt brug..

Supports 10Base-T, 100Base-TX and 1000Base-T gigabit networks.
Supports Dante, Cobranet, Ethersound, HdbaseT and other AV network protocols

•Flexible PVC jacket
•26 AWG stranded conductors
•5.3 mm (Ø) outer diameter
•Oxygen free copper
•Wired according to ANSI/TIA/EIA 568B (straight)
•LSHF jacket


Type of cable U/UTP CAT5E Networking cable
Inner conductor Material BC 7 x 0.16 mm (Ø) (OFC)
Section 0.14 mm²
American Wire Gauge 26 AWG
Insulation Material HDPE 0.92 mm (Ø)
Colours Green / White & Green ; Blue / White & Blue ; Orange / White & Orange ; Brown / White & Brown
Conductor twisting Lay length ≤ 30 mm
Outer jacket Colours Black
Material LSHF 5.3 mm (Ø)
Connection type RJ45 male to RJ45 male



Electrical Characteristics
Dielectric strength 1.5 (KV / 1 min. DC)
Max. Delay / Skew 45 (ns / 100 m)
Rated voltage 72 V
Nom. Velocity of propagation 65 %
Characteristic impedance 100 Ω ± 10 Ω
Max. conductor DC resistance 130 (Ω / Km)
DC resistance unbalanced 5 %
Nom. mutual capacitance ≤ 5.6 (nF / 100 m)
Pair to ground capacitance unbalance ≤ 330 (nF / 100 m)

Information

Model:	Data
Variant:	Cat 5
Længde:	2 meter

Størrelse

Vægt:	0,076
Bredde:	0,2
Dybde:	0,15
Højde:	0,025

Forsendelsesinformation

Pakke Bredde:	0,2
Pakke Dybde:	0,15
Pakke højde:	0,025
