RCF C5212 2-vejs passiv højttaler 500W Sort 90 x 40 132 dB

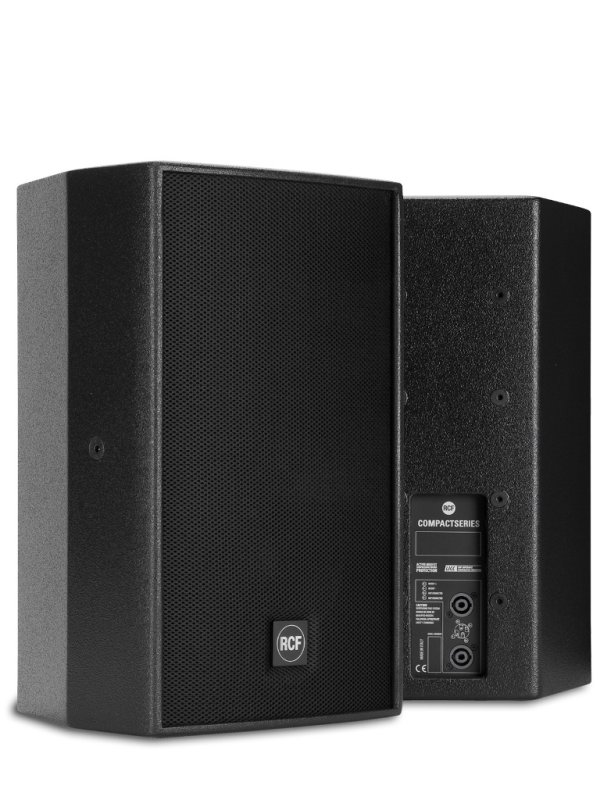

RCF C5212-94 2-vejs passiv højttaler, 12"+2" 500 W, sort

C5212-94 er et full-range, narrow-dispersion, 2-vejs højtalersystem til medium-throw-applikationer. Højfrekvenssektionen består af et retningshorn og en 2" compression-driver, med en 2,5" diaphragm som sørger for en kontrolleret spredning. Lavfrekvens-transduceren er en 12" woofer med et 3" voice-coil.

90° x 40° CMD (Coverage Matching Design) constant directivity horn
2" compression driver with 2.5" diaphragm assembly
12" woofer with 3" voice coil
Dual-function design: built in passive crossover or external bi-amp
Rotatable Horn System for horizontal cabinet mounting applications
HF driver AMCDP (Active Mosfet Compression Driver Protection)
LICC (Low Impedance Compensated Crossover) network

Frequency Response -10 dB: 54 Hz ÷ 20000 Hz
Max SPL @ 1m: 132 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 40°
Directivity index; Q: 13
System Sensitivity: 99 dB
Nominal Impedance: 8 Ohm
Power Handling: 500 W
Peak Power Handling: 2000 W
Recommended Amplifier: 1000 W
Protections: Dynamic
Crossover frequencies: 1200 Hz
Compression Driver: 2"HF driver, 2.5" voice coil
Nominal Impedance: 8 Ohm
Input Power Rating: 100 W AES
Sensitivity: 111 dB
Woofer: 12" woofer, 3" voice coil
Nominal Impedance: 8 Ohm
Input Power Rating: 400 W AES
Sensitivity: 98 dB
Input connector: Speakon NL4 - Full range or Bi-Amp
Output connector: Speakon NL4
Cabinet Material: 15 mm birch plywood construction
Hardware: 14 x M10 inserts
Pole Mount/Cap: 1 top, 1 bottom
Grille: custom perforated steel grille, epoxy powder coated, covered with polyurethane perforated cloth
Colour: Black
Dimensions(H x W x D): 630 x 360 x 390 mm
Net Weight: 29 kg

Størrelse

Vægt:	29 kg
Bredde:	360 mm
Dybde:	390 mm
Højde:	630 mm

Forsendelsesinformation

Pakke Bredde:	514 mm
Pakke Dybde:	464 mm
Pakke højde:	714 mm
Pakke Vægt:	33 kg
