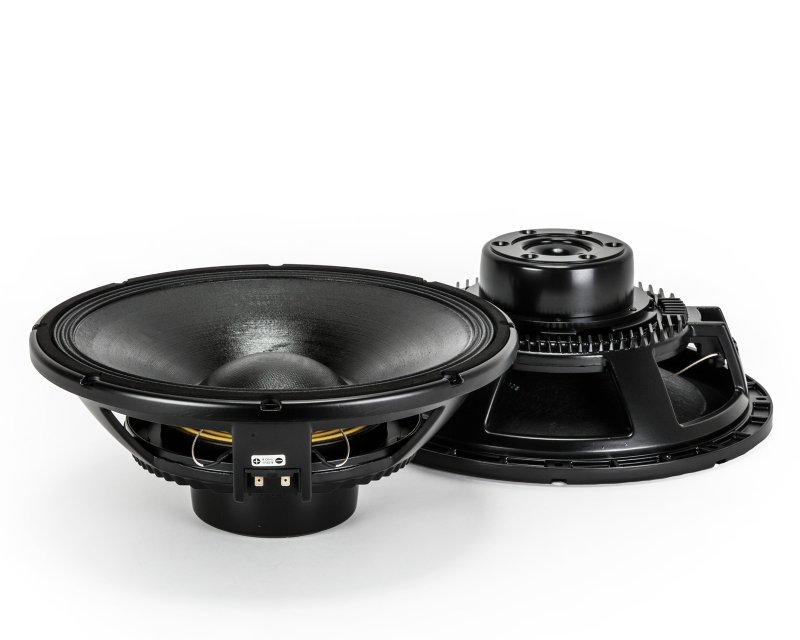

RCF højttalerenhed MB15N405 15" Neodymium 1100W

RCF 15" Neo woofer 1100W, 2200W program 100dB

MB15N405 er en hyper-vented mid-bas med en lineær frekvensrespons og høj effektivitet. Den magnetiske struktur benytter en high-flux neo-disc og en cone-konstruktion med high-excursion triple-roll, geometry surround. Glasfiber-formeren og aluminiums-voice-coil'et tilbyder high-power-handling, letvægtighed og en passende Q-faktor til justering af bassen.

Nominal Diameter: 380 mm
Rated Impedance: 8 Ohm
Program Power: 2200 W AES
Power handling capacity: 1100 W AES
Sensitivity: 100 dB
Frequency Range: 45 Hz ÷ 2500 Hz
Effective Piston Diameter: 340 mm
Max Excursion Before Damage (peak to peak): 53 mm
Minimum Impedance: 5.9 Ohm
Voice Coil Diameter: 100 mm
Voice Coil Material: Aluminium
Voice Coil Winding Depth: 20 mm
Number of layers: 2
Kind of layer: inside / outside
Top Plate Thickness: 12 mm
Cone Material: No pressed pulp
Cone Design: Curved
Surround Material: Polycotton
Surround Design: Triple roll
Resonance frequency: 46 Hz
DC resistance: 5.5 Ohm
Mechanical factor: 4.8
Electrical factor: 0.28
Total factor: 0.27
BL Factor: 23.5 T · m
Effective Moving Mass: 98 g
Equivalent Cas air load: 124 liters
Effettive piston area: 0.091 m²
Max. linear excursion (mathematical): 7.0 mm
Voice - coil inductance @ 1kHz: 1.1 mH
Half-space efficiency: 4.10 %
Overall Diameter: 393 mm
Bolt Circle Diameter: 371-376 mm
Bolt Hole Diameter: 6.5 mm
Front Mount Baffle Cut-out: 354 1 mm
Rear Mount Baffle Cut-out: 354 1 mm
Depth: 144 mm
Volume occupied by the driver: 3.8 / 0.13 liters/ft³
Net Weight: 8.6 kg

Information

Størrelse:	15"

Størrelse

Vægt:	8,6 kg
Diameter:	393 mm
Dybde:	39,3
Højde:	160 mm

Forsendelsesinformation

Pakke Bredde:	439 mm
Pakke Dybde:	434 mm
Pakke højde:	209 mm
Pakke Vægt:	9,3 kg
