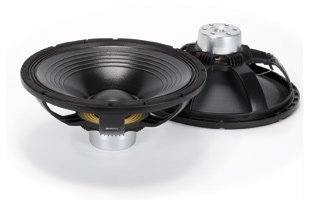

RCF højttalerenhed MB15N301 15" Neodymium 500W

RCF 15" Neo mid-bas 500W, 1000W program 99,5dB

MB15N301 er en neodymium, højeffektiv, 15" mid-bas, med høj sensitivitet, sublim linearitet og high-power-handling. Den magnetiske struktur drives af en stor neodymium-magnet som leverer en høj flux-tæthed i åbningen. En hyper-vented aluminiums-basket og det magnetiske design tilbyder sublim varme-dissipation og lav power-kompression. M-roll surround og spider-designet tilbyder sublim linearitet og præcis reproduktion.

Nominal Diameter: 380 mm
Rated Impedance: 8 Ohm
Program Power: 1000 W AES
Power handling capacity: 500 W AES
Sensitivity: 99 dB
Frequency Range: 40 Hz ÷ 3500 Hz
Effective Piston Diameter: 330 mm
Max Excursion Before Damage (peak to peak): 40 mm
Minimum Impedance: 6.8 Ohm
Voice Coil Diameter: 76 mm
Voice Coil Material: Aluminium
Voice Coil Winding Depth: 17 mm
Number of layers: 2
Kind of layer: inside / outside
Top Plate Thickness: 10 mm
Cone Material: No pressed pulp
Cone Design: Curved
Surround Material: Polycotton
Surround Design: Triple roll
Resonance frequency: 48 Hz
DC resistance: 5.8 Ohm
Mechanical factor: 4.6
Electrical factor: 0.39
Total factor: 0.37
BL Factor: 19.2 T · m
Effective Moving Mass: 90 g
Equivalent Cas air load: 134 liters
Effettive piston area: 0.086 m²
Max. linear excursion (mathematical): 6.0 mm
Voice - coil inductance @ 1kHz: 0.9 mH
Half-space efficiency: 3.70 %
Overall Diameter: 388 mm
Bolt Circle Diameter: 369-373.5 mm
Bolt Hole Diameter: 5.5 mm
Front Mount Baffle Cut-out: 355 mm
Rear Mount Baffle Cut-out: 358 mm
Depth: 152 mm
Volume occupied by the driver: 3.0 / 0.11 liters/ft³
Net Weight: 3.7 kg

Information

Størrelse:	15"

Størrelse

Vægt:	3,7 kg
Diameter:	388 mm
Dybde:	38,8
Højde:	165 mm

Forsendelsesinformation

Pakke Bredde:	434 mm
Pakke Dybde:	439 mm
Pakke højde:	209 mm
Pakke Vægt:	4,7 kg
