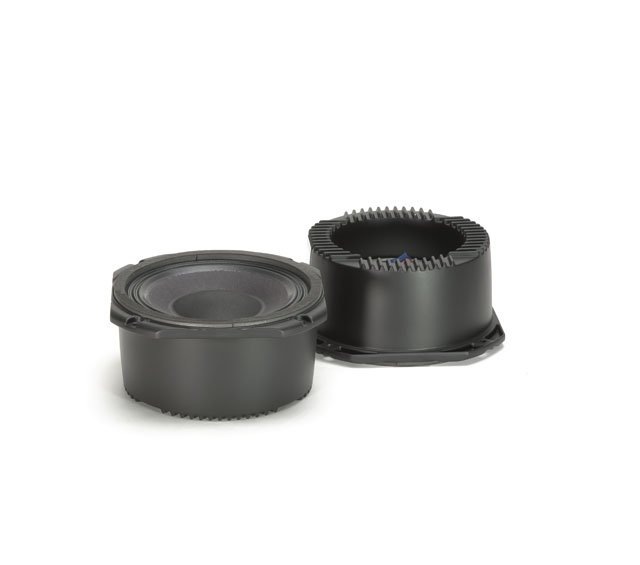

RCF højttalerenhed MR10N301 10" Neodymium 350W

RCF 10" Neo Mid-base 350W, 700W program 3"

MR10N301 er en højeffektiv, high-power midrange, specielt designet til at levere et sublimt lydtryksniveau i en kompakt størrelse. Totalvægten er reduceret til mere end halvdelen end hos en sammenlignelig ceramic-midrange takket være den kraftfulde neodymium-magnets konstruktion. Det unikke forseglede basket-design simpleficerer kabinetdesignet og forbedrer varme-dissipationen.

Nominal Diameter: 260 mm
Rated Impedance: 8 Ohm
Program Power: 600 W AES
Power handling capacity: 300 W AES
Sensitivity: 102 dB
Frequency Range: 150 Hz ÷ 2000 Hz
Effective Piston Diameter: 210 mm
Max Excursion Before Damage (peak to peak): 20 mm
Minimum Impedance: 8.5 Ohm
Voice Coil Diameter: 76 mm
Voice Coil Material: Aluminum
Voice Coil Winding Depth: 11 mm
Number of layers: 2
Kind of layer: inside / outside
Top Plate Thickness: 10 mm
Cone Material: No pressed pulp
Cone Design: Curved
Surround Material: Polycotton
Surround Design: M - roll
DC resistance: 6.2 Ohm
Mechanical factor: 6.48
Electrical factor: 0.72
Total factor: 0.65
BL Factor: 20.7 T · m
Effective Moving Mass: 31.8 g
Equivalent Cas air load: 2.2 liters
Effettive piston area: 0.035 m²
Max. linear excursion (mathematical): 1.4 mm
Voice - coil inductance @ 1kHz: 1.17 mH
Half-space efficiency: 9.26 %
Overall Diameter: 272 mm
Bolt Circle Diameter: 244 mm
Bolt Hole Diameter: 7 mm
Front Mount Baffle Cut-out: 235 mm
Rear Mount Baffle Cut-out: 232 mm
Depth: 124 mm
Volume occupied by the driver: 5.0 / 0.18 liters/ft³
Net Weight: 3.9 kg

Information

Størrelse:	10"

Størrelse

Vægt:	4,5 kg
Diameter:	272 mm
Dybde:	27,2
Højde:	142 mm

Forsendelsesinformation

Pakke Bredde:	285 mm
Pakke Dybde:	285 mm
Pakke højde:	170 mm
Pakke Vægt:	5 kg
