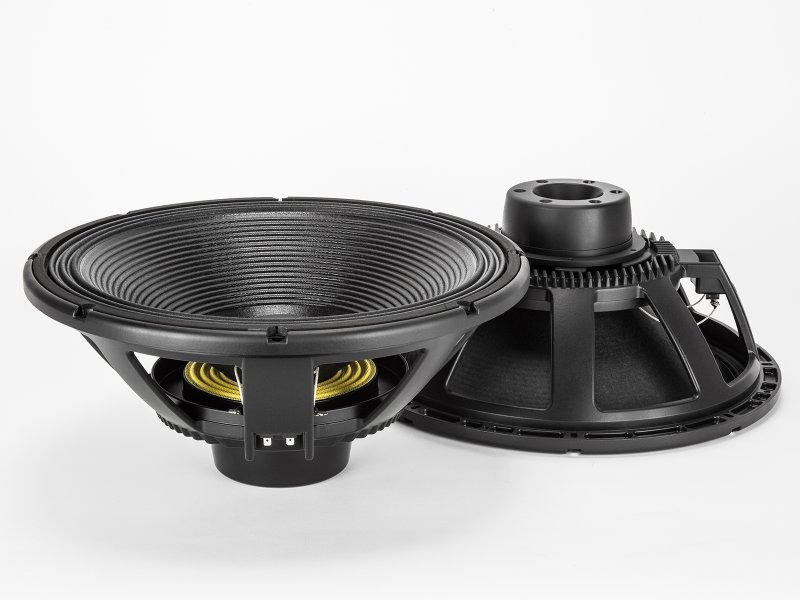

RCF højttalerenhed LF18N405 18" Neodymium 1500W

RCF højttalerenhed LF18N405 18" Neodymium 1500W

LF18N405 er en bashøjttaler med forlænget lavfrekvens som tilbyder kraftfulde og præcise basfrekvenser, med lav forvrængning, lav kraftkompression og en meget høj SPL. Enheden benytter en fiber-loaded cone. Det ventilerede, magnetiske struktursystem tilbyder en effektiv voice-coil ventilation til minimering af kraftkompressionen.

4,0 - inch Inside/Outside copper voice coil
3000 Watt continuous program power handling
97 dB Sensitivity
25Hz - 1kHz Frequency range
Hypervented magnetic structure for minimum power compression
Triple roll surround and exponential cone geometry

Nominal Diameter: 460/18 mm/inch
Rated Impedance: 8 Ohm
Program Power: 3000 W AES
Power handling capacity: 1500 W AES
Sensitivity: 97 dB
Frequency Range: 25 Hz ÷ 1000 Hz
Effective Piston Diameter: 395/15.6 mm/inch
Max Excursion Before Damage (peak to peak): 58/2.28 mm/inch
Minimum Impedance: 6.0 Ohm
Voice Coil Diameter: 100/4.0 mm/inch
Voice Coil Material: Copper
Voice Coil Winding Depth: 36/1.41 mm/inch
Number of layers: 2
Kind of layer: inside/ouside
Top Plate Thickness: 15/0.6 mm/inch
Cone Material: No pressed pulp
Cone Design: Curved
Surround Material: Polycotton
Surround Design: Triple roll

Resonance frequency: 30 Hz
DC resistance: 4.9Ohm
Mechanical factor: 7.0
Electrical factor: 0.34
Total factor: 0.32
BL Factor: 26.5 T · m
Effective Moving Mass: 261 g
Equivalent Cas air load: 227 liters
Effettive piston area: 0.122 m²
Max. linear excursion (mathematical): 14.2 mm
Voice - coil inductance @ 1kHz: 1.7 mH
Half-space efficiency: 1.70%

Overall Diameter: 465/18.3 mm/inch
Bolt Circle Diameter: 442-447/17.4-17.6 mm/inch
Bolt Hole Diameter: 6.5/0.25 mm/inch
Front Mount Baffle Cut-out: 424/16.7 mm/inch
Rear Mount Baffle Cut-out: 425/16.7 mm/inch
Depth: 190/7.48 mm/inch
Volume occupied by the driver: 5.5/0.19 liters/ft³
Net Weight: 8.8/19 kg/lbs
Shipping weight: 10/22 kg/lbs

Information

Størrelse:	18"

Størrelse

Vægt:	8,8 kg
Diameter:	465 mm
Dybde:	46,5
Højde:	208 mm

Forsendelsesinformation

Pakke Bredde:	495 mm
Pakke Dybde:	525 mm
Pakke højde:	255 mm
Pakke Vægt:	10 kg
