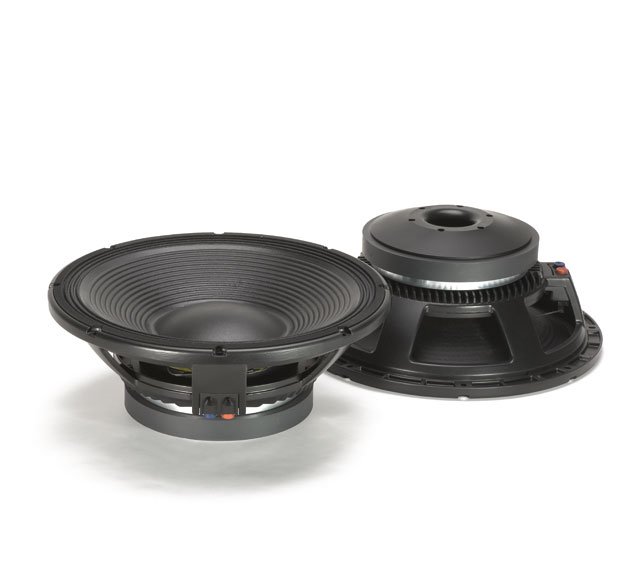

RCF højttalerenhed L15P400 15" Keramisk 800W

RCF 15" Ceramic Sub 800W, 1600W program, 4"

L15P400 tilbyder en lineær frekvensrespons og en høj effektivitet med den lavest mulige harmoniske forvrængning. L15P400 benytter en fiber-loaded cone sammen med en high-excursion triple roll surround. Denne kombination giver en markant styrke og en peak to peak maksimal excursion på 52 mm.

Nominal Diameter: 380 mm
Rated Impedance: 8 Ohm
Program Power: 1600 W AES
Power handling capacity: 800 W AES
Sensitivity: 97 dB
Frequency Range: 30 Hz ÷ 1500 Hz
Effective Piston Diameter: 340 mm
Max Excursion Before Damage (peak to peak): 50 mm
Minimum Impedance: 6.3 Ohm
Voice Coil Diameter: 100 mm
Voice Coil Material: Copper
Voice Coil Winding Depth: 23 mm
Number of layers: 2
Kind of layer: inside / outside
Top Plate Thickness: 14 mm
Cone Material: No pressed pulp
Cone Design: Straight
Surround Material: Polycotton
Surround Design: Triple roll
Resonance frequency: 36 Hz
DC resistance: 4.8 Ohm
Mechanical factor: 7.5
Electrical factor: 0.27
Total factor: 0.25
BL Factor: 24.8 T · m
Effective Moving Mass: 150 g
Equivalent Cas air load: 160 liters
Effettive piston area: 0.091 m²
Max. linear excursion (mathematical): 8.0 mm
Voice - coil inductance @ 1kHz: 2.2 mH
Half-space efficiency: 2.6 %
Overall Diameter: 393 mm
Bolt Circle Diameter: 371-376 mm
Bolt Hole Diameter: 6.5 mm
Front Mount Baffle Cut-out: 352 mm
Rear Mount Baffle Cut-out: 360 mm
Depth: 158 mm
Volume occupied by the driver: 4.3 / 0.15 liters/ft³
Net Weight: 12.6 kg

Information

Størrelse:	15"

Størrelse

Vægt:	13,5 kg
Diameter:	393 mm
Dybde:	39,3
Højde:	159 mm

Forsendelsesinformation

Pakke Bredde:	420 mm
Pakke Dybde:	425 mm
Pakke højde:	195 mm
Pakke Vægt:	15,5 kg
