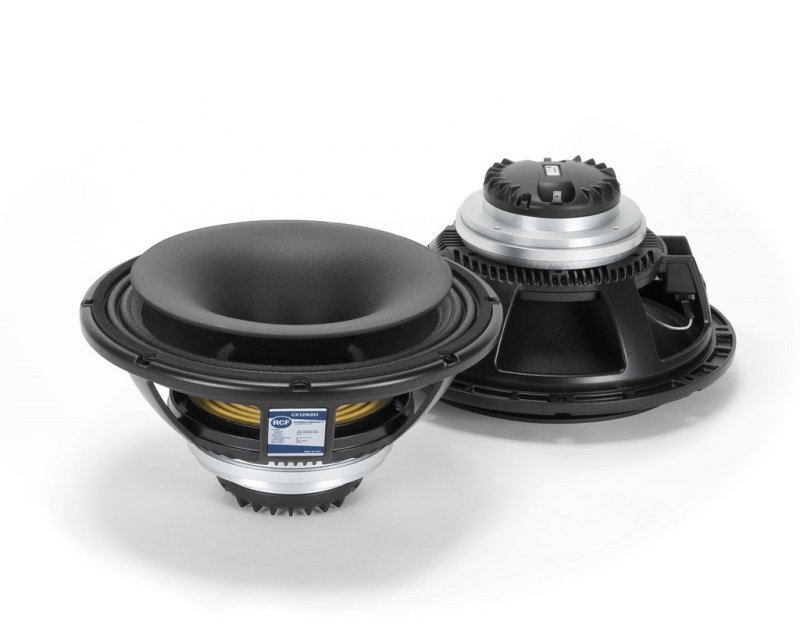

RCF højttalerenhed CX10N351 Neodymium Coaxial 900W

RCF W12" 2,5" Neo Coax 900W program, 1,5"driver

CX12N351 tilbyder en sublim frekvensrespons-linearitet med lav forvrængning. CX12N351 er drevet af en integreret neodymium-magnetisk struktur som garanterer høj dynamik og sensitivitet til begge komponenter. Mid-bassektionen tilbyder et 3,5" inside/outside-voicecoil-design som giver høj krafthåndtering i forhold til et standard 3" voicecoil. Compression-driveren benytter en 2,5" diaphragm med en 1,4" throat.

CX12N351 DRIVER
Nominal Diameter: 35.5 / 1.4 mm/inch
Rated Impedance: 8 Ohm
Program Power: 180 W
Power Handling Capacity: 90 W
Sensitivity 1 W, 1 m: 110 dB
Frequency Range: 700 - 20000 Hz
Minimun Impedance: 7.9 Ohm
Voice Coil Diameter: 63.7 / 2.5 mm/inch
Voice Coil Material: Edgewound Aluminum
Number of layers: 1 - Outside
Diaphragm Material: Pure Titanium
Diaphragm Design: Dome
Suspension Material: Pure Titanium
Suspension design: Progressive
BL factor: 10.4 T · m
Flux density: 2.0 T
Phase plug design: 3 slot
Phase plug material: Aluminium
Magentics: Neodymium
Voice Coil Demodulatuon: Copper ring

CX12N351 HORN
Throat Diameter: 36 / 1.4
Nominal coverage (-6dB): 60°
Cut-off Frequency: 900
Material: Structural Polyurethane

CX12N351 WOOFER
Nominal Diameter: 300 / 12 mm/inch
Rated Impedance: 8 Ohm
Program Power: 900 W
Power Handling Capacity: 450 W
Sensitivity: 98.5 dB
Frequency Range: 50 - 3000 Hz
Effective Piston Diameter: 260 / 10 mm/inch
Max Excursion Before Damage (peak to peak): 39 / 1.5 mm/inch
Minimun Impedance: 6.8 Ohm
Voice Coil Diameter: 87 / 3.4 mm/inch
Voice Coil Material: Copper
Voice Coil Winding Depth: 16.5 / 0.65 mm/inch
Number of layers: 2
Kind of layer: inside / outside
Top Plate Thickness: 11 / 0.43 mm/inch
Cone Material: No pressed pulp
Cone Design: Curved
Surround Material: Polycotton
Surround Design: M - roll

THIELE/SMALL PARAMETERS
Resonance frequency: Fs - 58 Hz
DC resistance: Re - 5.8 Ohm
Mechanical Factor: Qms - 5.4
Electircal Factor: Qes - 0.21
Total Factor: Qts - 0.20
BL Factor: Bl - 25 T · m
Effective Moving Mass: Mms - 62 g
Equivalent Cas air load: Vas - 47 liters
Effective piston area: Sd - 0.053 m²
Max. linear excursion ( mathematical): Xmax - 5.5 mm
Voice - coil inductance @ 1 kHz: Le1K - 1.5 mH
Half-space efficiency: Eff - 4.4%

MOUNTING INFORMATION
Overall Diameter: 320 / 12.6 mm/inch
Bolt Circle Diameter: 293 - 304 / 11.5 - 12 mm/inch
Bolt Hole Diameter: 6.5 / 0.3 mm/inch
Front Mount Baffle Cut-out: 284 / 11.2 mm/inch
Rear Mount Baffle Cut-out: 284 / 11.2 mm/inch
Depth: 144 / 5.66 mm/inch
Volume occupied by the driver: 2.2 / 0.77 liters/ft³

Information

Type:	Coaxial enhed
Størrelse:	12"

Størrelse

Vægt:	6,29 kg
Diameter:	320 mm
Dybde:	32
Højde:	157 mm

Forsendelsesinformation

Pakke Bredde:	360 mm
Pakke Dybde:	360 mm
Pakke højde:	240 mm
Pakke Vægt:	7,47 kg
