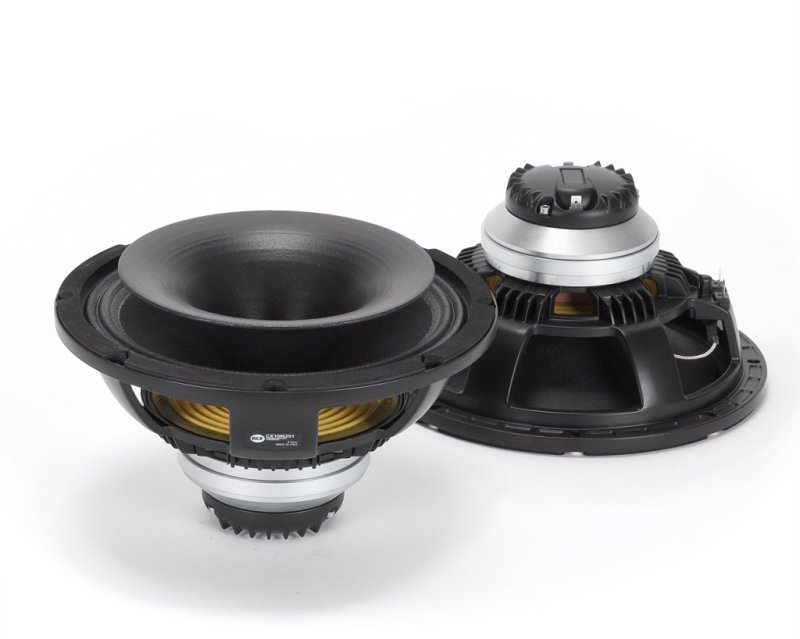

RCF højttalerenhed CX10N251 Neodymium Coaxial 600W

RCF W10" 1,75" Neo Coax 600W program, 1,5"driver

CX10N251 er en letvægts koaksial driver med subim linearitet og høj effektivitet. Designet drives af en stor neodymium-ringmagnet som tilbyder en høj fluxtæthed og BL-faktor. 1,7" dome compression-driveren leverer et klart output og en perfekt højfrekvens-forlængelse.

CX10N251 DRIVER
Nominal Diameter: 25.4 / 1.0 mm/inch
Rated Impedance: 8 Ω
Program Power: 100 W
Power Handling Capacity: 50 W
Sensitivity 1 W, 1 m: 109 dB
Frequency Range: 1200 - 20000 Hz
Minimun Impedance: 6.5 Ω
Voice Coil Diameter: 44.4/1.75 mm/inch
Voice Coil Material: Edgewound Aluminum
Number of layers: 1 - Outside
Diaphragm Material: Polyimide
Diaphragm Design: Dome
Suspension Material: Polyimide
Suspension design: Flat
BL factor: 7.5 T · m
Flux density: 1.9 T
Phase plug design: 2 slot
Phase plug material: Composite
Magentics: Neodymium

CX10N251 HORN
Throat Diameter: 25.4 / 1.0
Nominal coverage (-6dB): 60°
Cut-off Frequency: 1800
Material: Structural Polyurethane

CX10N251 WOOFER
Nominal Diameter: 250 / 10 mm/inch
Rated Impedance: 8 Ω
Program Power: 600 W
Power Handling Capacity: 300 W
Sensitivity: 99 dB
Frequency Range: 65 - 3500 Hz
Effective Piston Diameter: 210 / 8.27 mm/inch
Max Excursion Before Damage (peak to peak): 30 / 1.18 mm/inch
Minimun Impedance: 6.4 Ω
Voice Coil Diameter: 64 / 2.51 mm/inch
Voice Coil Material: Aluminum
Voice Coil Winding Depth: 14 / 0.55 mm/inch
Number of layers: 1
Top Plate Thickness: 8 / 0.31 mm/inch
Cone Material: No pressed pulp
Cone Design: Curved
Surround Material: Polycotton
Surround Design: M - roll

THIELE/SMALL PARAMETERS
Resonance frequency: Fs - 72 Hz
DC resistance: Re - 5.2 Ω
Mechanical Factor: Qms - 4.5
Electircal Factor: Qes - 0.25
Total Factor: Qts - 0.23
BL Factor: Bl - 17.5 T · m
Effective Moving Mass: Mms - 28 g
Equivalent Cas air load: Vas - 25 liters
Effective piston area: Sd - 0.035 m²
Max. linear excursion ( mathematical): Xmax - 4.8 mm
Voice - coil inductance @ 1 kHz: Le1K - 1.2 mH
Half-space efficiency: Eff - 4.7%

MOUNTING INFORMATION
Overall Diameter: 260 / 10.24 mm/inch
Bolt Circle Diameter: 241 - 246 / 9.50 - 9.60 mm/inch
Bolt Hole Diameter: 5.5 / 0.22 mm/inch
Front Mount Baffle Cut-out: 234 / 9.21 mm/inch
Rear Mount Baffle Cut-out: 234 / 9.21 mm/inch
Depth: 126 / 4.96 mm/inch
Volume occupied by the driver: 2.1 / 0.07 liters/ft³

Størrelse

Vægt:	3,29
Dybde:	26
Højde:	13,6

Forsendelsesinformation

Pakke Dybde:	26
Pakke højde:	13,6
