RCF diskant horn tragt til 1,4" diskant, spredning 90 x 50

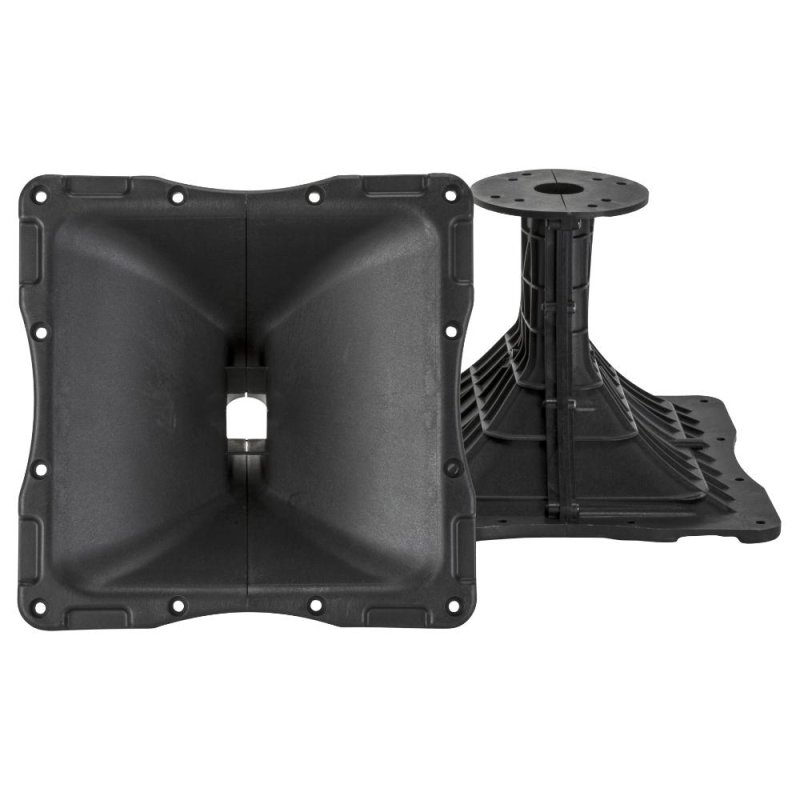

RCF HF950 horn 1,4" 90° x 50°
13133080

RCF diskant horn tragt til 1,4" diskant, spredning 90 x 50


GENERAL SPECIFICATIONS
Throat Diameter: 36 mm / 1.4 inch
Horizontal coverage angle: 90°
Vertical coverage angle: 50°
Cut-off Frequency: 400 Hz
Material: Structural Polyurethane

MOUNTING INFORMATIONS
Overall height: 300 mm / 11.81 inches
Overall width: 300 mm / 11.81 inches
Overall depth: 208 mm / 8.19 inches
Baffle Cut-out height: 260 mm / 10.24 inches
Baffle Cut-out width: 260 mm / 10.24 inches
Mounting: 4 x 7 mm holes, interaxes 101 mm

SIZE
Height: 221 mm / 8.7 inches
Diameter: 270 mm / 10.63 inches
Weight: 1.17 kg / 2.58 lbs

SHIPPING INFORMATIONS
Package Height: 239 mm / 9.41 inches
Package Width: 332 mm / 13.07 inches
Package Depth: 332 mm / 13.07 inches
Package Weight 2.1 kg / 4.63 lbs

Størrelse

Vægt:	1,17 kg
Diameter:	270 mm
Dybde:	25
Højde:	221 mm

Forsendelsesinformation

Pakke Bredde:	332 mm
Pakke Dybde:	332 mm
Pakke højde:	239 mm
Pakke Vægt:	2,1 kg
