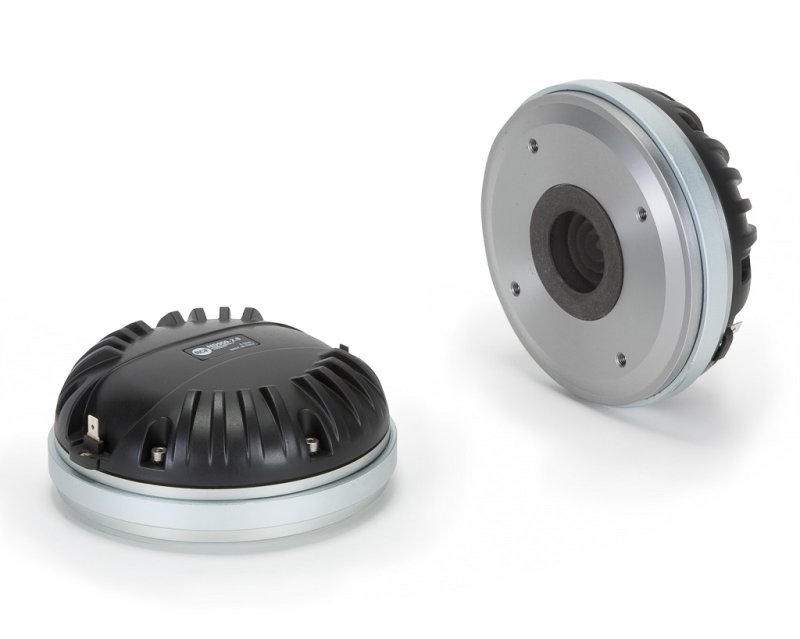

RCF Diskant enhed ND950 140W 1,4" Titanium driver

Beskrivelse

Specifikationer

Beskrivelse

RCF Neo driver 1,4" Power 140W rms, 280W program 4"

ND950-1,4 er en kompakt, high-perfomance, high-power-handling 4" diaphragm compression-driver med en 1,4" exit-throat. Den tilbyder et 4-slot, optimeret geometry, phase-plug. Voice-coil-konstruktionen er designet med kapton-former under høje temperaturer.

Menmbran vare nummer M950-1,4

Exit Throat Diameter: 35.5 mm
Rated Impedance: 8 Ω
Power handling capacity continuous program1: 280 W AES
Power handling capacity AES2: 140 W AES
Sensitivity: 110 dB
Frequency Range: 500 Hz ÷ 20000 Hz
Diaphragm Material: Pure titanium
Suspension Material: Polymide
Suspension Design: Flat
Minimum Impedance: (at 3.5kHz) 8.5 Ω
Voice Coil Diameter: 100 mm
Voice Coil Material: Edgewound aluminium
Voice Coil Former Design: Straight kapton
Number of layers: 1 - outside
BL Factor: 17.6 T · m
Flux Density: 2.05 T
Phase Plug Design: 4 slots
Phase Plug Material: Aluminium
Magnetics: Neodymium
Voice Coil Demodulation: Copper ring
Overall diameter: 146 mm
Overall height: 60 mm
Mounting 4 × 5 mm holes at 90°: 101.6 mm
Net weight: 3.3 kg

Specifikationer

Størrelse

Vægt:	3,5 kg
Dybde:	14,6
Højde:	6

Forsendelsesinformation

Pakke Bredde:	169 mm
Pakke Dybde:	171 mm
Pakke højde:	79 mm
Pakke Vægt:	3,7 kg
