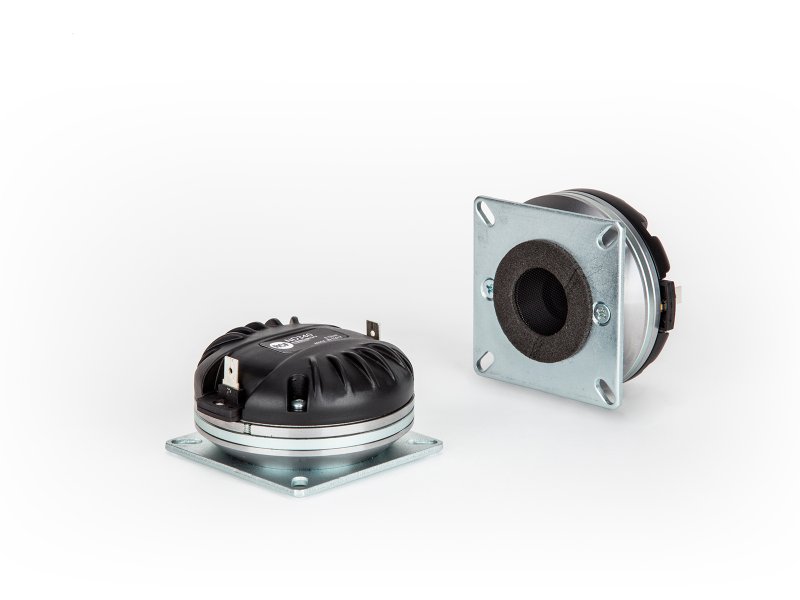

RCF Diskant enhed ND340 50W 1" Titanium driver

RCF Diskant enhed ND340 50W 1" Titanium driver

ND340 er en neodymium kompressions-driver med en 1" exit-throat. Diafragmaen er præcisions formet fra polyimid. 1,75" voice-coil'et er samlet ved høje temperaturer i Kapton-former.

1.75-inch Diaphragm, 1.0-inch Exit Throat
100 watt Continuous program power handling
Frequency range: 1200Hz - 20kHz
2-slot, optimised geometry phase plug
Polyimide diaphragm
Extremely compact neodymium magnet assembly

Exit Throat Diameter: 24.4/1 mm/inch
Rated Impedance: 8 Ohm
Power handling capacity continuous program1: 100 W AES
Power handling capacity AES2: 50 W AES
Sensitivity: 109 dB
Frequency Range: 1200 Hz ÷ 20000 Hz
Diaphragm Material: polymide
Suspension Material: polymide
Suspension Design: flat
Minimum Impedance: 6.5 Ohm
Voice Coil Diameter: 44.4/1.75 mm/inch
Voice Coil Material: Edgewound Aluminum
Voice Coil Former Design: Straight-Kapton
Number of layers: 1-Outside
BL Factor: 7.9 T · m
Flux Density: 1.9 T
Phase Plug Design: 2 slot
Phase Plug Material: Composite
Magnetics: Neodymium
Overall diameter: 76/3 mm/inch
Overall height: 39/1.53 mm/inch
Mounting 4 × 5 mm holes at 90°: 4 x 5 mm threaded holes at 180 deg. 76.2/3.0 mm/inch
Net weight: 0.63/1.38 kg/lbs
Shipping weight: 0.8/1.75 kg/lbs

Størrelse

Vægt:	0,63 kg
Dybde:	7,6
Højde:	3,9

Forsendelsesinformation

Pakke Bredde:	95 mm
Pakke Dybde:	97 mm
Pakke højde:	65 mm
Pakke Vægt:	0,81 kg
