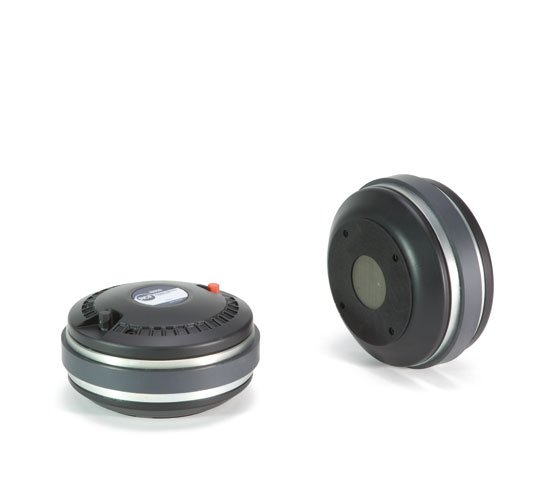

RCF Diskant enhed N850 150W 3" Titanium driver

RCF 3" Ceramic Mid-High Titanium driver 150W program

N850 er en højkvalitets 3" diaphragm compression-driver med en 2" exit-throat. Diaphragmen er præcisionsformet fra 0,05 mm tykt ren titanium. Ophænget er baseret på et udluftet Mylar-design. Front-aluminiums-adapteren garanterer en nem overgang fra phase-plug til en 2" output interface.

Exit Throat Diameter: 50.8 mm
Rated Impedance: 8 Ohm
Power handling capacity continuous program1: 180 W AES
Power handling capacity AES2: 90 W AES
Sensitivity: 109 dB
Frequency Range: 500 Hz ÷ 20000 Hz
Diaphragm Material: Pure titanium
Suspension Material: Mylar
Suspension Design: Radial
Minimum Impedance: (at 3.5kHz) 8.8 Ohm
Voice Coil Diameter: 74.4 mm
Voice Coil Material: Edgewound aluminium
Voice Coil Former Design: Straight kapton
Number of layers: 1 - outside
BL Factor: 12 T · m
Flux Density: 1.85 T
Phase Plug Design: 3 slots
Phase Plug Material: Composite
Magnetics: Ceramic
Voice Coil Demodulation: Copper ring
Overall diameter: 180 mm
Overall height: 95 mm
Mounting 4 × 5 mm holes at 90°: 101.6 mm
Net weight: 4.7 kg

Størrelse

Vægt:	6 kg
Dybde:	18
Højde:	9,5

Forsendelsesinformation

Pakke Bredde:	203 mm
Pakke Dybde:	205 mm
Pakke højde:	114 mm
Pakke Vægt:	7 kg
